Wheelchair Lectern | ORION-1

Developed with leading universities, the ORION-1 is purpose-built for modern teaching and presentation spaces.

It delivers exactly what education, corporate and government spaces demand: secure, professional AV/IT integration, fast tool-less access for installation and servicing, long-term reliability and an inclusive design that that supports every presenter.

Features

For the AV Integrator

8RU steel rack enclosure
1000mm W x 880mm D worktop that’s removable for rack access
360° equipment access for fast installation, servicing and cable routing
Lockable panels (keyed-alike or combination) prevent unauthorized access
Cable management provides a clean internal pathway from floor box to worktop
Natural convection cooling keeps equipment running efficiently
Future-ready design supports system upgrades without structural changes

For the Presenter

Electric height adjustment raises or lowers the worktop and rack together for seated, standing or wheelchair use
Wheelchair-accessible with smooth roll-in access, knee clearance and equal access to controls and devices
Ergonomic worktop layout places AV devices comfortably within reach
Low-glare 2Pac worktop finish enhances visibility under lighting and resists marks and surface wear
Optional heavy-duty castors provide mobility within multipurpose or reconfigurable spaces

Branding and Add-ons

Choose colours, finishes and logo applications to suit your space
Choose optional extras to enhance functionality, storage and security
Choose from our range of accessories to complete your setup

Technical Details

Measurements
Total rack storage	16RU
Rack space (front)	2 x 5RU
Rack space (rear)	2 x 3RU
Height adjustment range	800mm – 1100mm (31″ x 43″)
Worktop	1000mm W x 880mm D (39” x 35”)
Base	1000mm W x 880mm D (39″ x 34″)
Material
Worktop	MDF
Body	Steel
Standard Features
Cable management	Yes
19″ 5RU Slide out rack	2
19″ Slide out rack	2
Security	Keyed-alike or combination locks
Branding
Logo panel size	550mm W x 380mm H (22” x 15”)
Logo applications	Vinyl wraps, decals, cut-outs or magnetic signage
Colours & Finish
Standard	Grey worktop White or black front panel Black body and base
Custom	Non-standard colours Gloss or matte Timber finish
Download Datasheet

5-Year Warranty
Quick Ship
Worldwide Shipping
No Assembly Required

For the Presenter

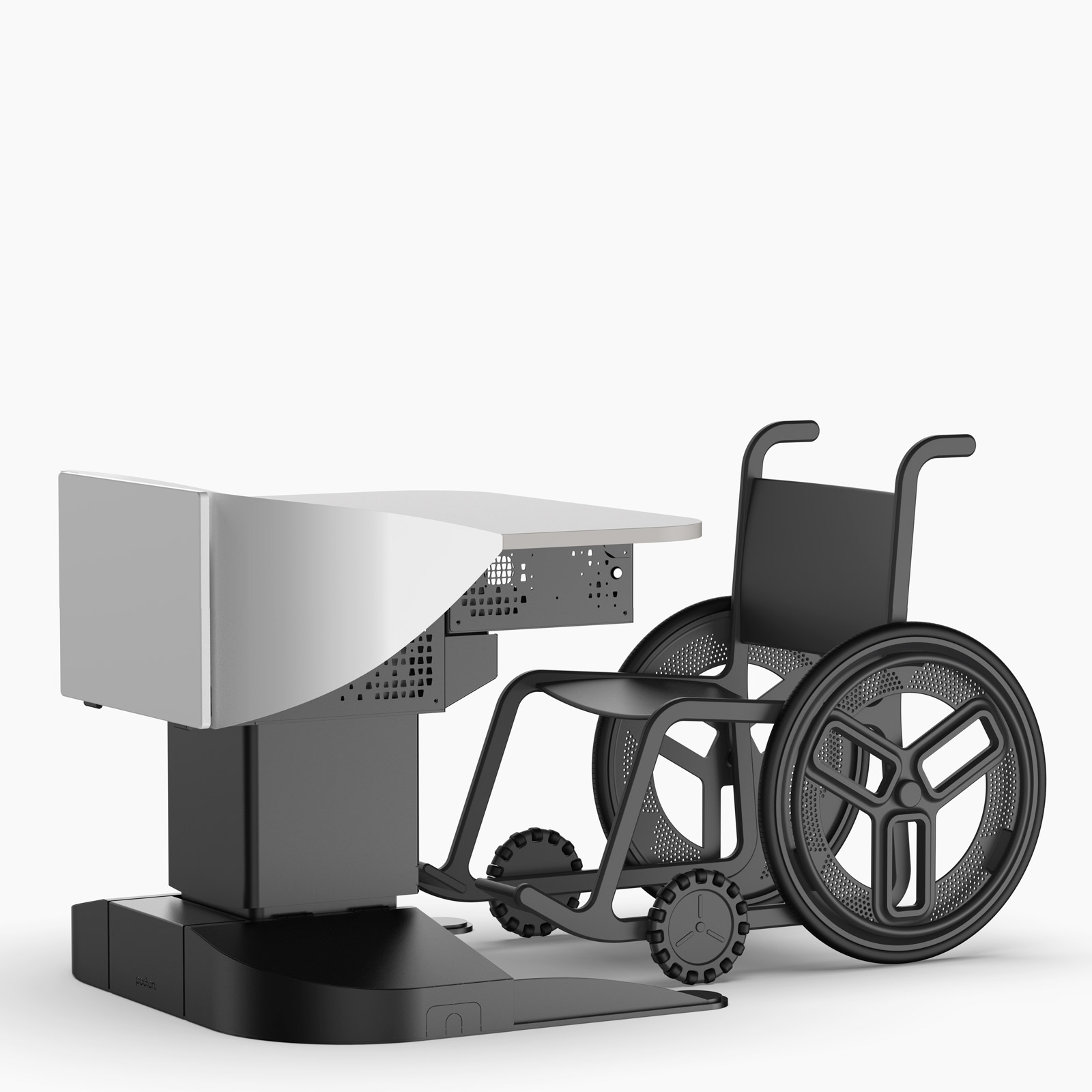

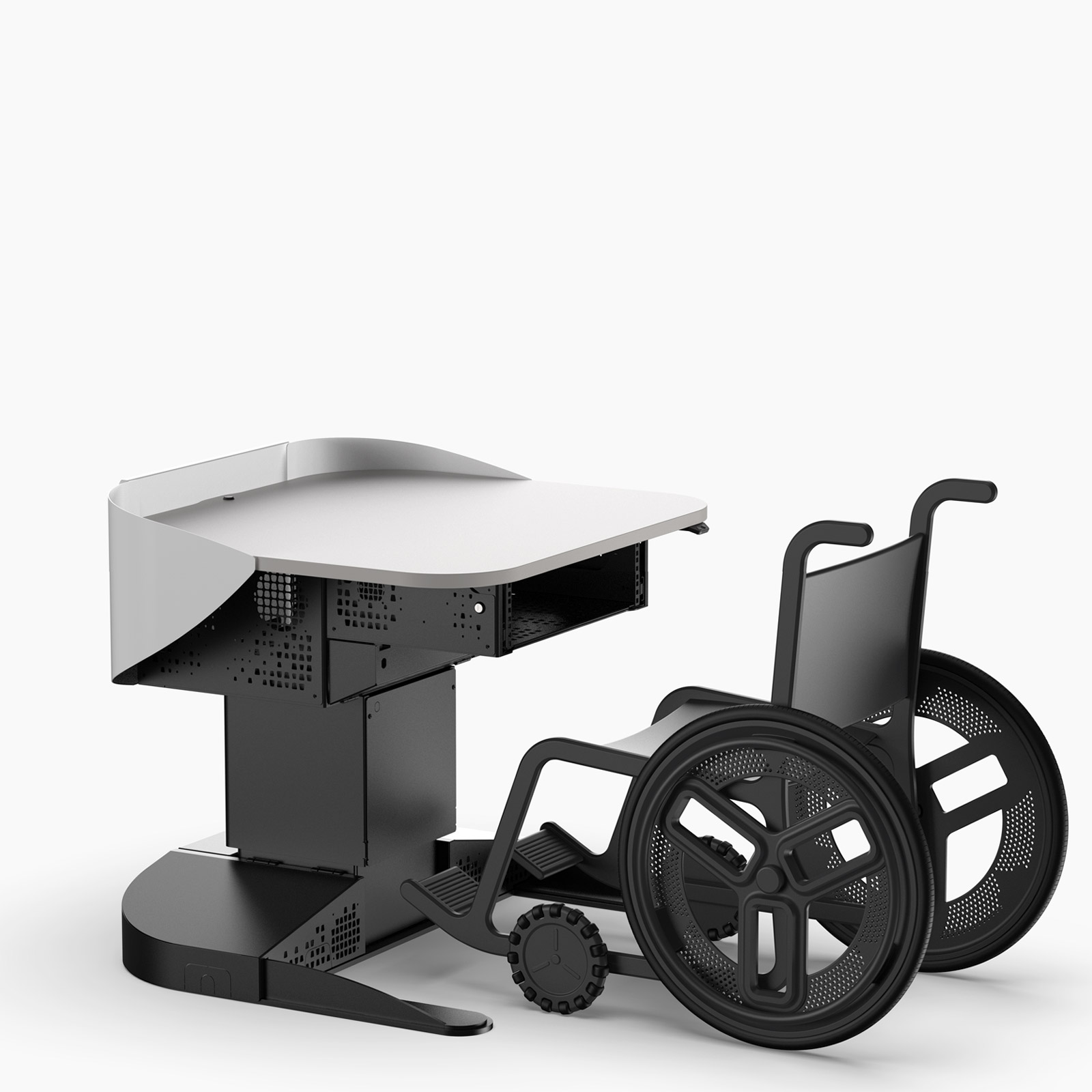

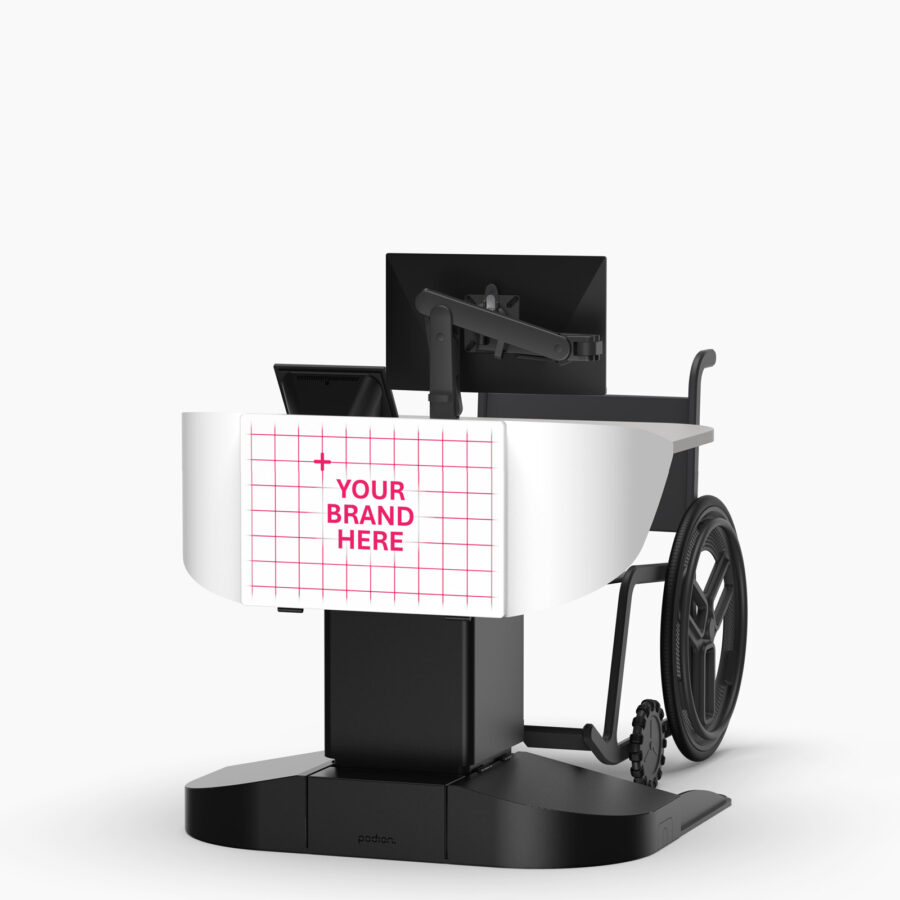

Wheelchair Accessible

Designed to give wheelchair users full independence, comfort and confidence.

Open U-shaped base enables smooth roll-in access and comfortable presenter positioning.
Generous knee clearance provide natural posture and unrestricted legroom.
Equal access to controls and devices allows effortless operation of all integrated technology.
Internal cable management maintains a clear, safe space for wheelchair users.

Height Adjustment

Allows presenters to work comfortably whether seated, standing or using a wheelchair.

The smooth, motorised height adjustment provides a 300 mm range.
The worktop and rack rise and fall together, keeping all equipment at the correct height for the user.
A control pad on the worktop edge offers simple, one-touch operation.
Quiet, precise movement ensures seamless transitions between presenters.

Mobile height adjustable lectern with 8RU multimedia capabilities built-in for smooth presentations. Adjsutable height in tallest setting.

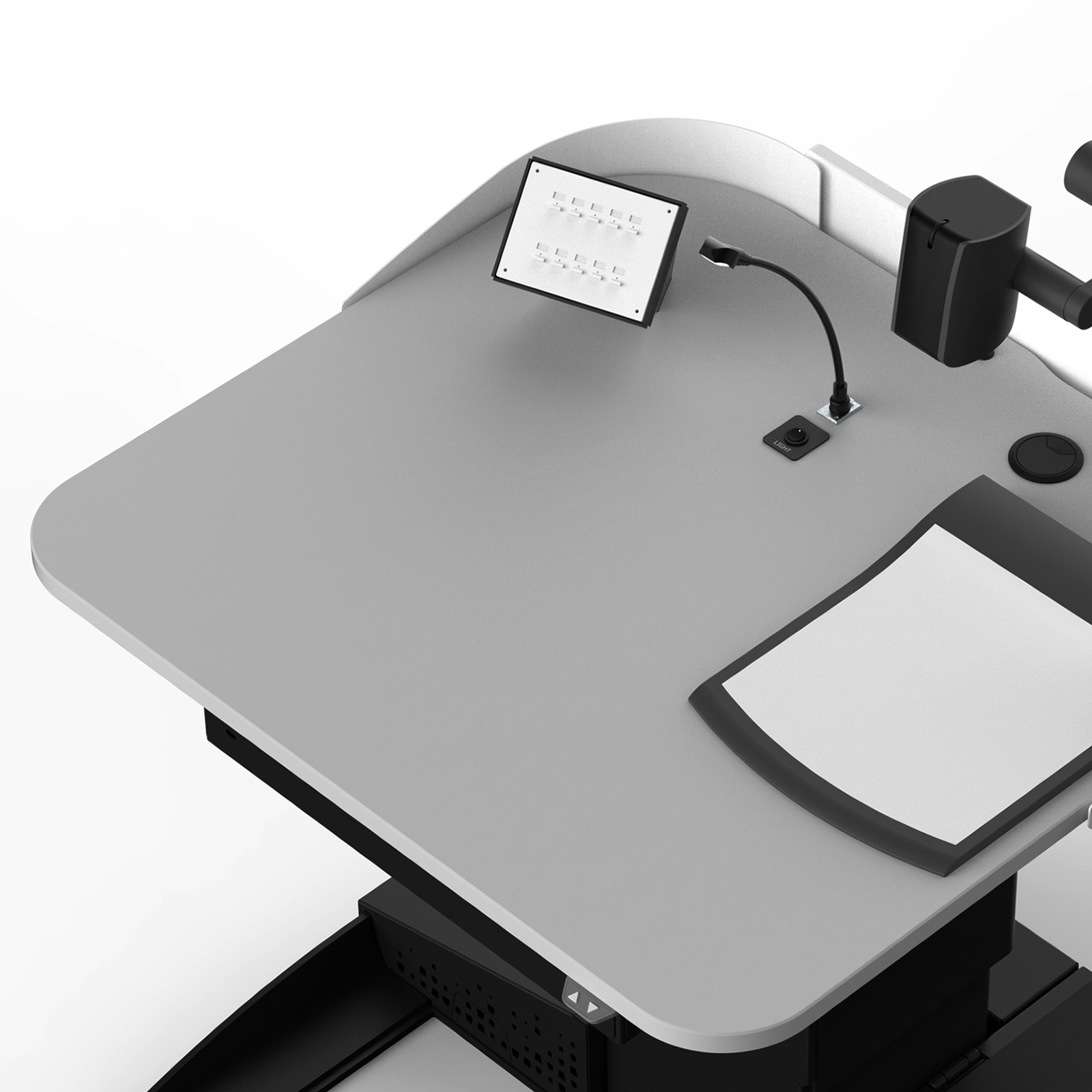

Worktop

Designed for professional AV integration and user-friendly operation

Generous worktop provides extensive surface area for monitors, touch panels, control interfaces and presentation equipment.
Factory-machined cut-outs available for control panels, power modules and other components to suit project requirements.
Raised logo panel acts as a privacy shield, concealing equipment and interfaces from audience view for a clean appearance.
Low-glare 2Pac finish enhances visibility under lighting.
Smooth, rounded edges eliminate sharp corners for improved safety and a refined finish.
Durable, stain-resistant surface is easy to clean and designed for heavy-duty, daily use.

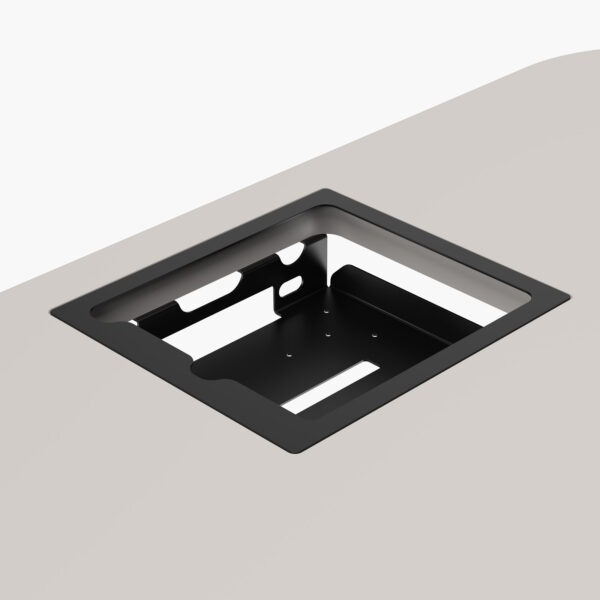

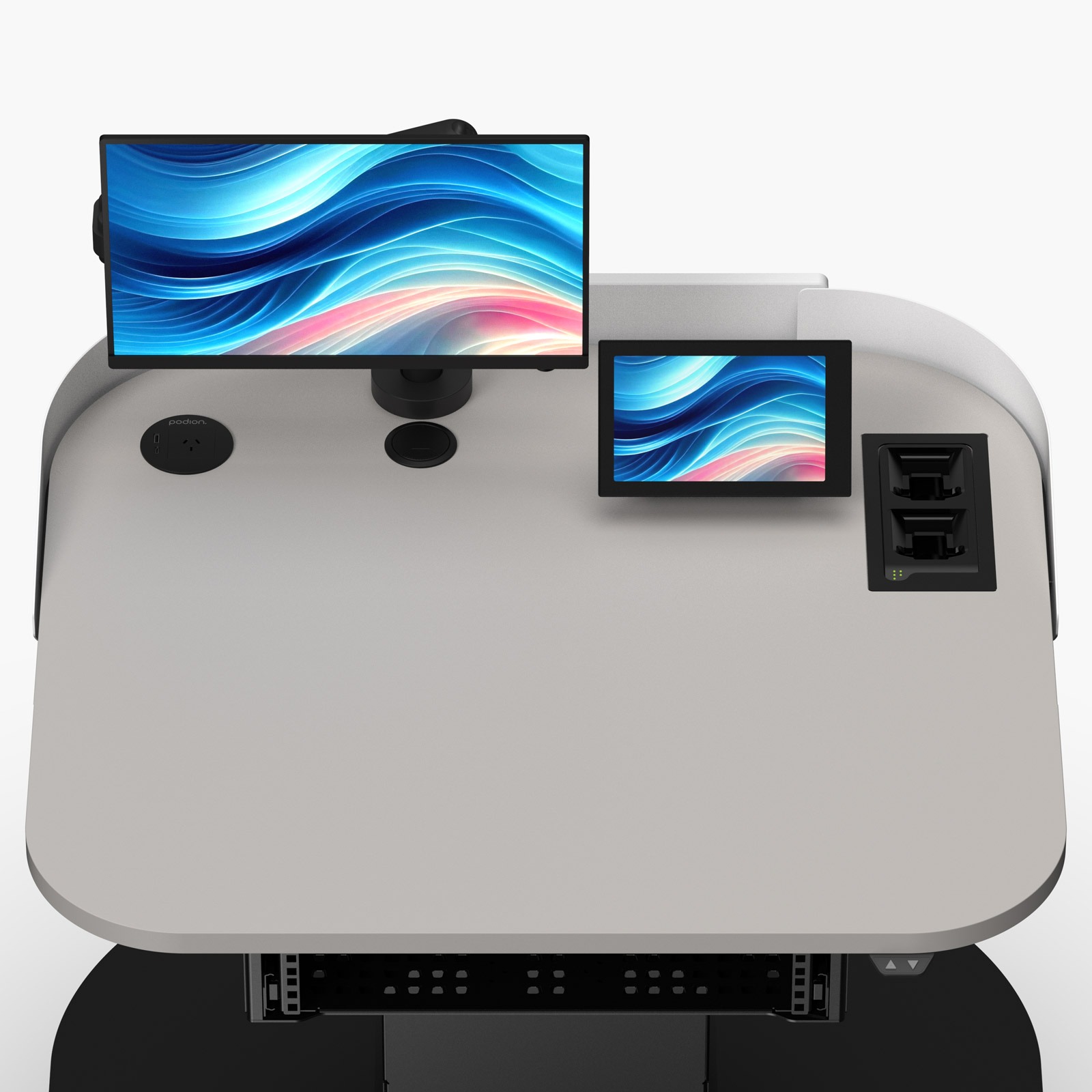

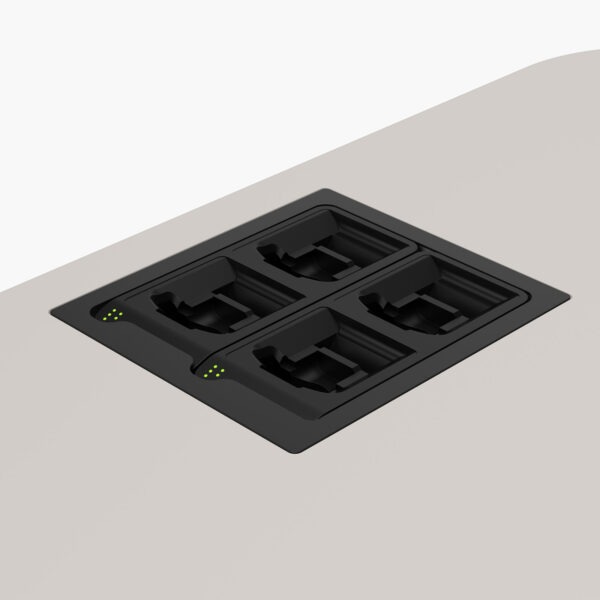

Close-up of ORION-2 lectern worktop showing integrated monitor arm, touch control panel, power USB module, cable grommet & dual wireless microphone charger.

For the AV Integrator

Engineered for Seamless Integration and Enhanced Security.

Advanced Storage Solutions

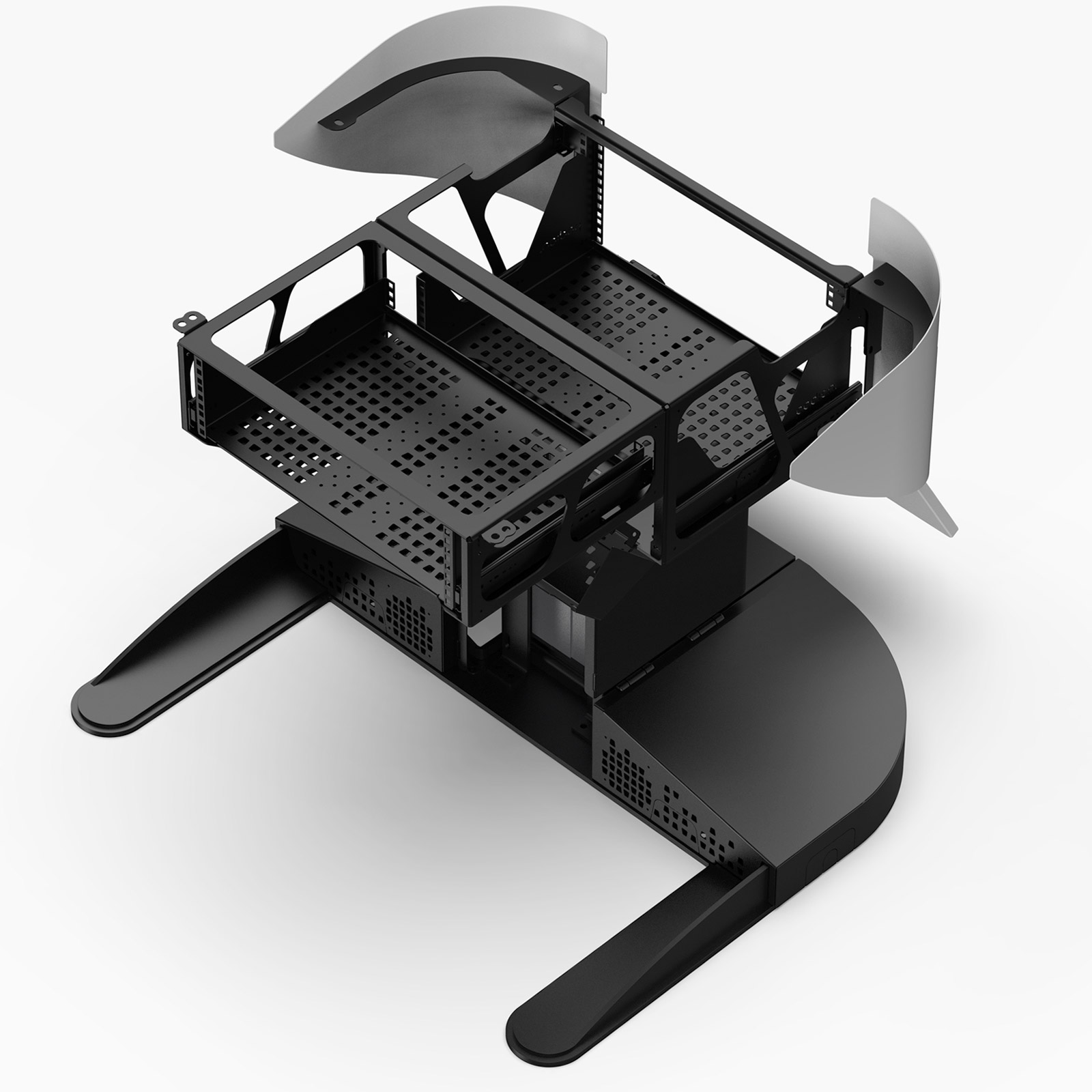

The Orion multimedia lectern features a robust steel internal chassis that provides a user-friendly mounting system.

With both front and rear access to rack-mounted AV equipment, equipment setup is streamlined and efficient.

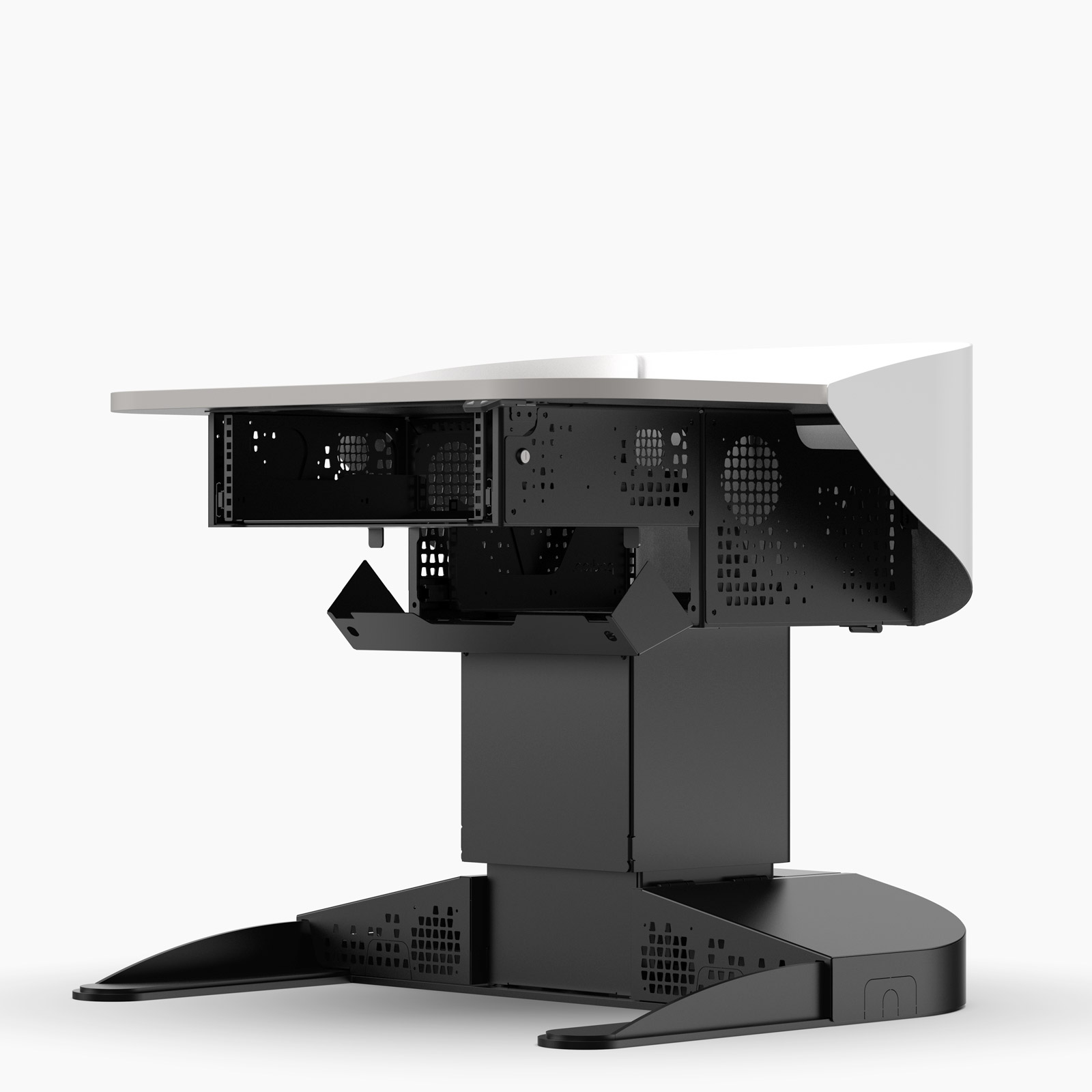

8RU Rack Space

5RU slide out rack, accessed from the the audience side
3RU slide out rack, accessed from the presenters side

Simplified Access and Maximum Security

Orion-1 redefines equipment accessibility for AV integrators, offering unprecedented ease of access while prioritizing robust security.

With lockable panels and bolted components, Orion-1 ensures valuable equipment is fully protected from unauthorized access, giving you and your client peace of mind.

Its user-friendly design streamlines installation and maintenance, saving time while maximizing security.

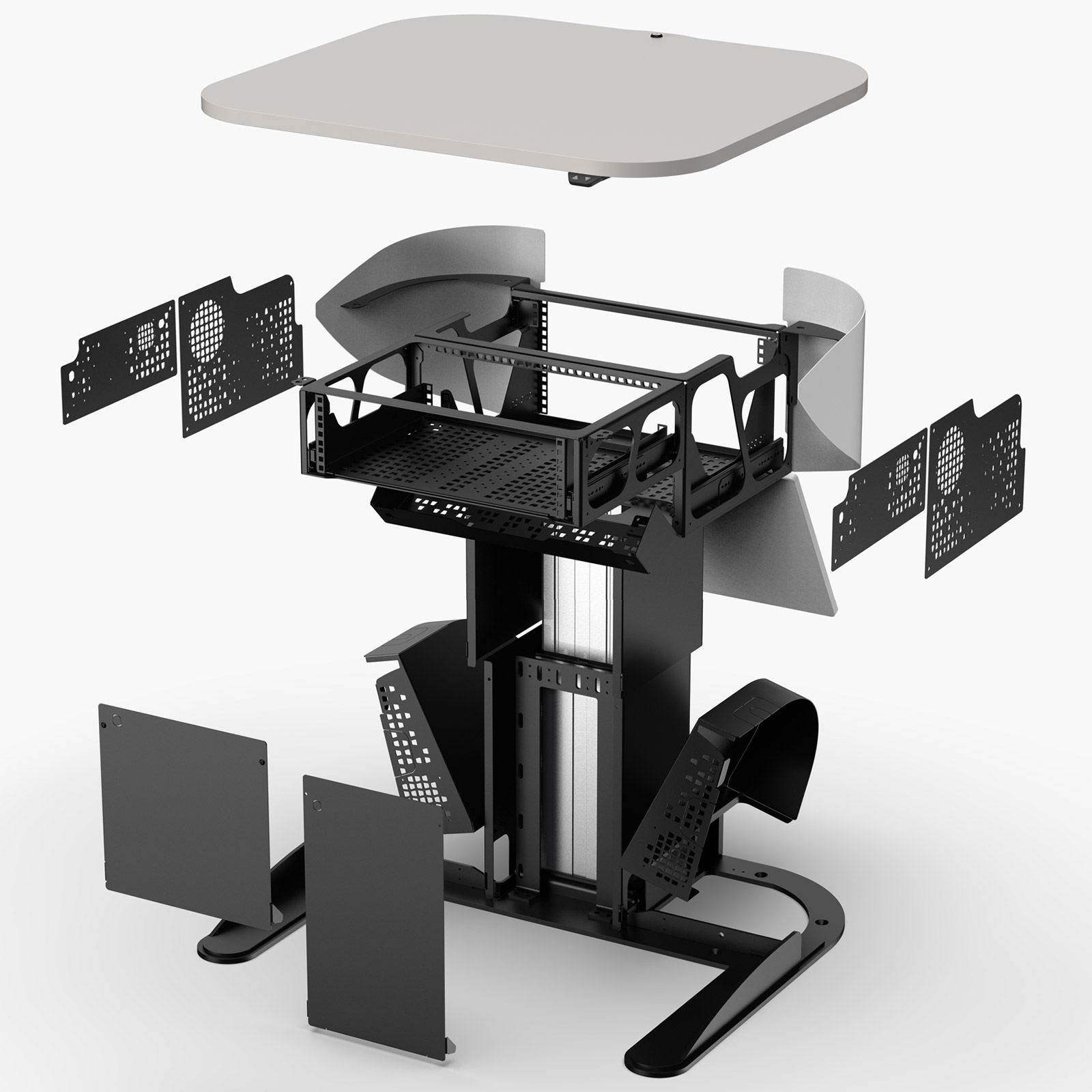

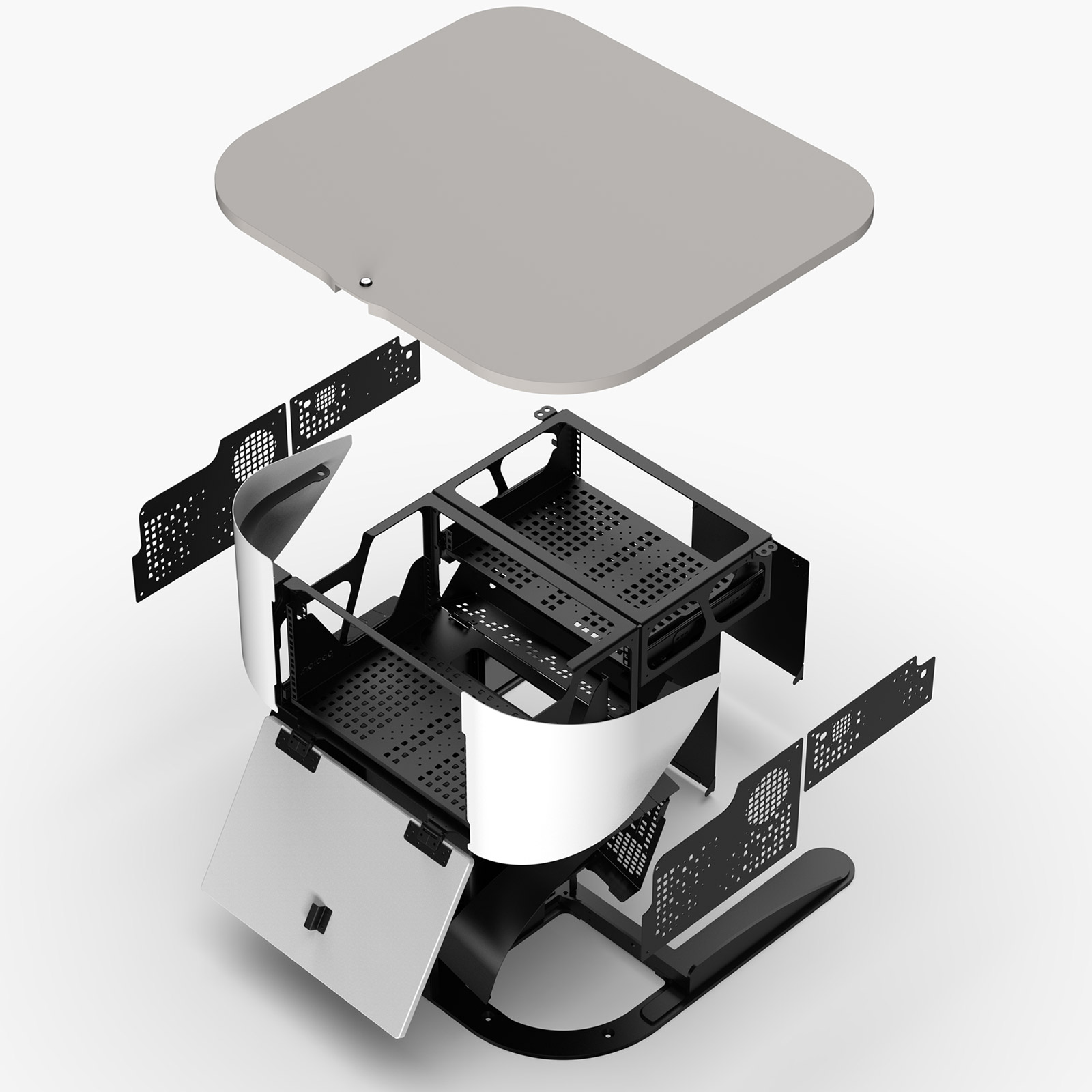

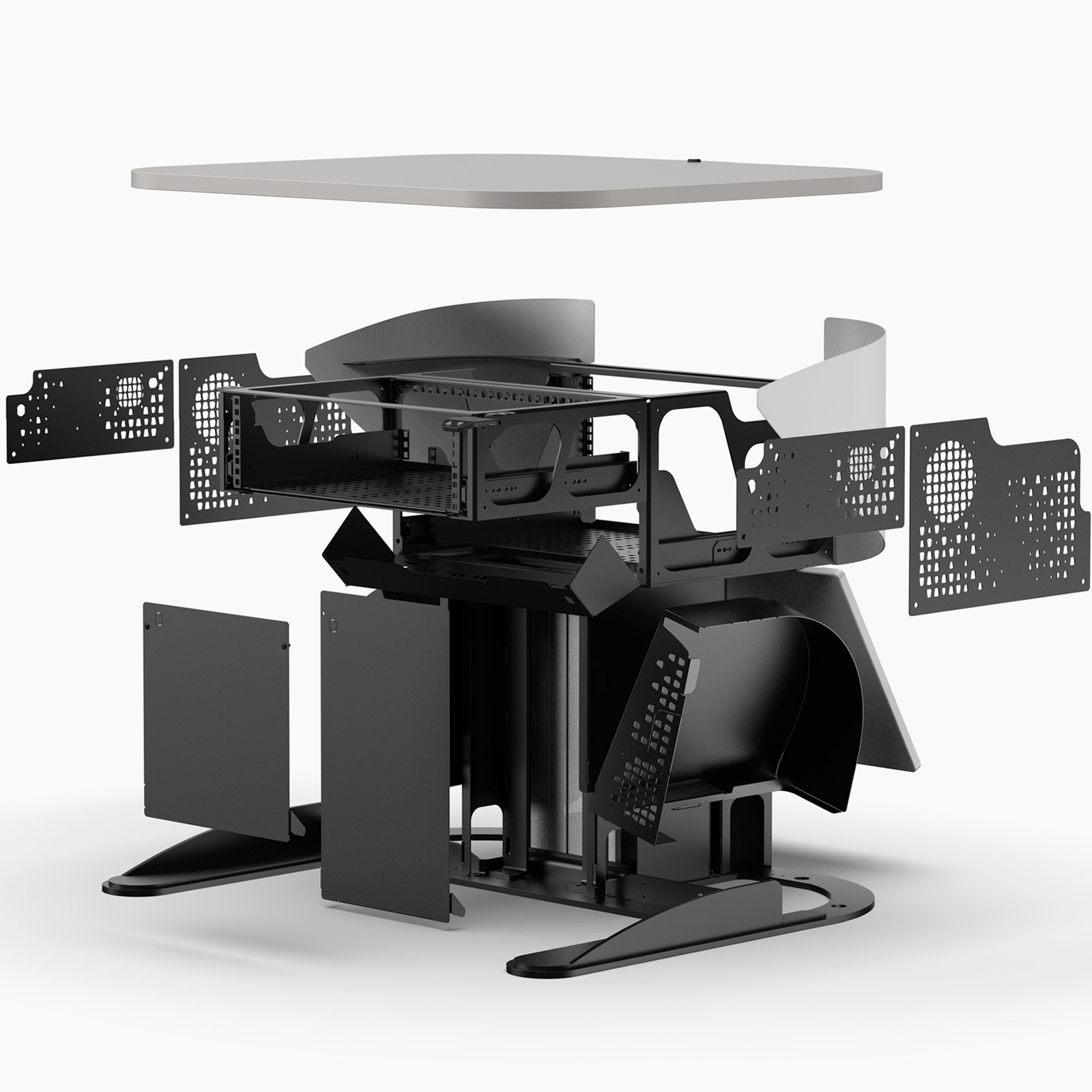

Access Points

Removable worktop (bolted in)
Hinged logo panel (lockable)
Removable fins
Removable side plates (bolted in)

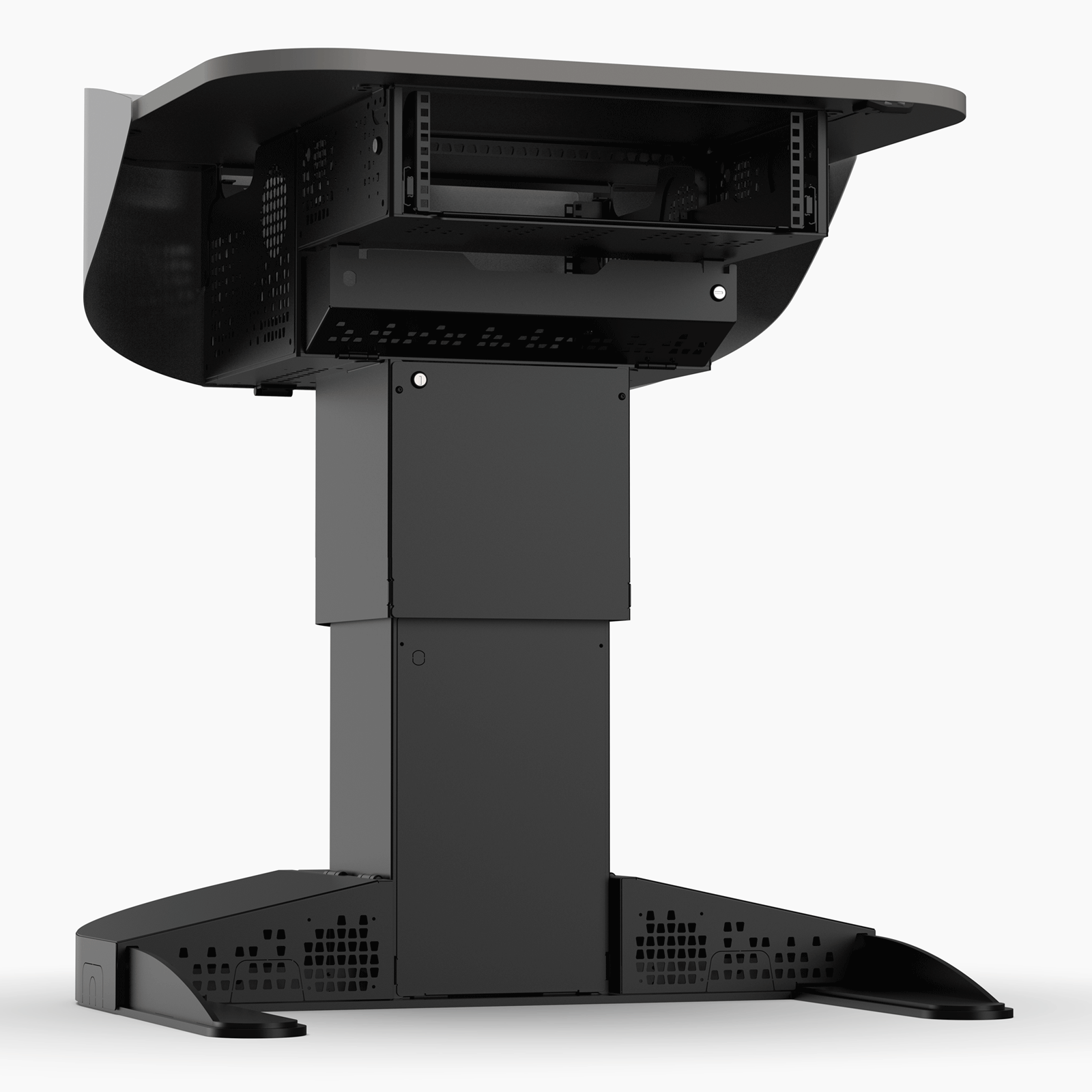

Removable column covers (lockable)
Flip-up base cover
Cable knockouts in the base
Access hole to floor box
Slide-out 5RU and 3RU rack trays
Access panel to the rear of 5RU rack (lockable)

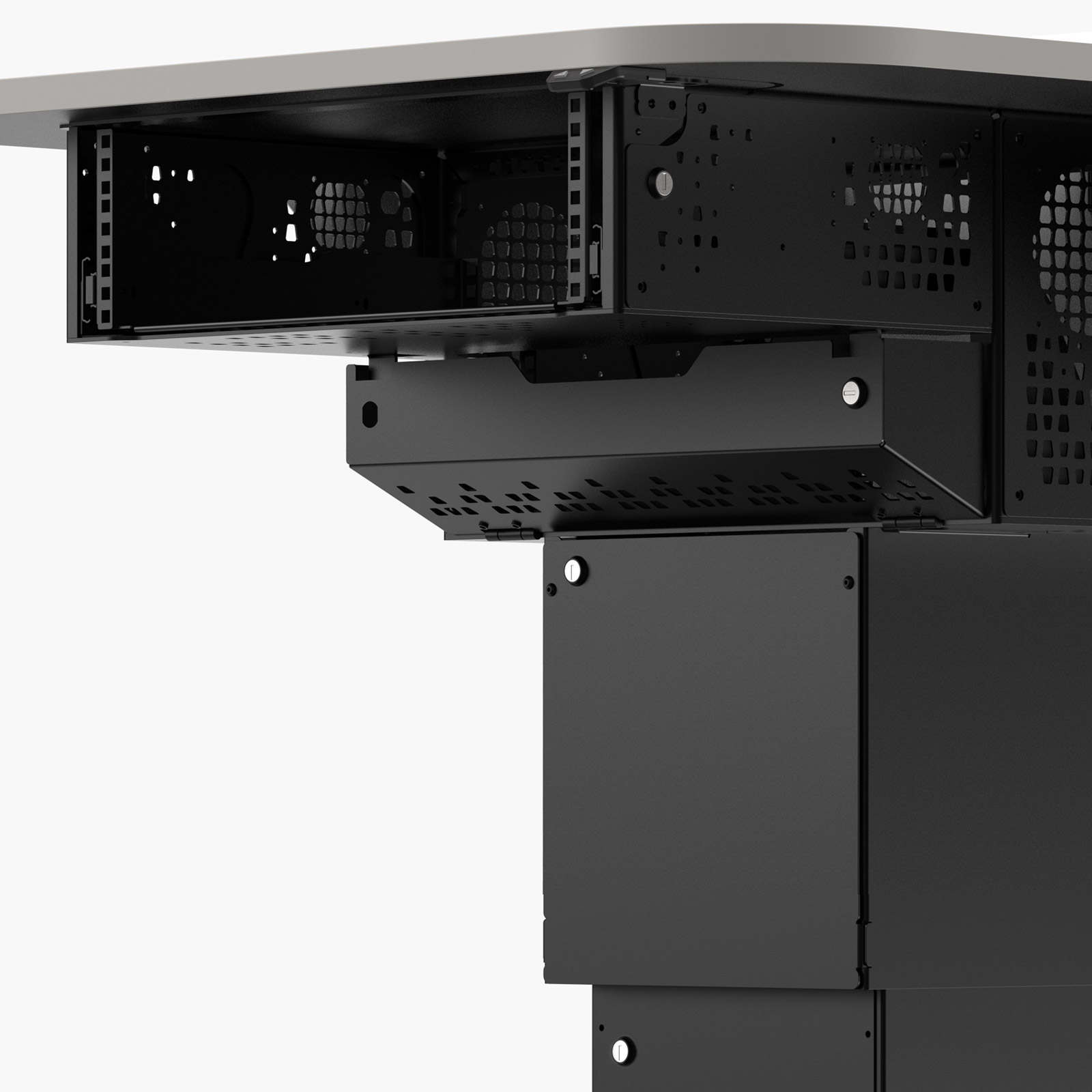

Optional Locks for Added Security

Enhance security with our optional combination locks, now available for side panels and column covers.

Prefer a keyed option? We've got that too. Choose the locking solution that best fits your needs.

Multimedia lectern with security features, including combination locks & RU cover panels, designed to protect AV equipment from theft.

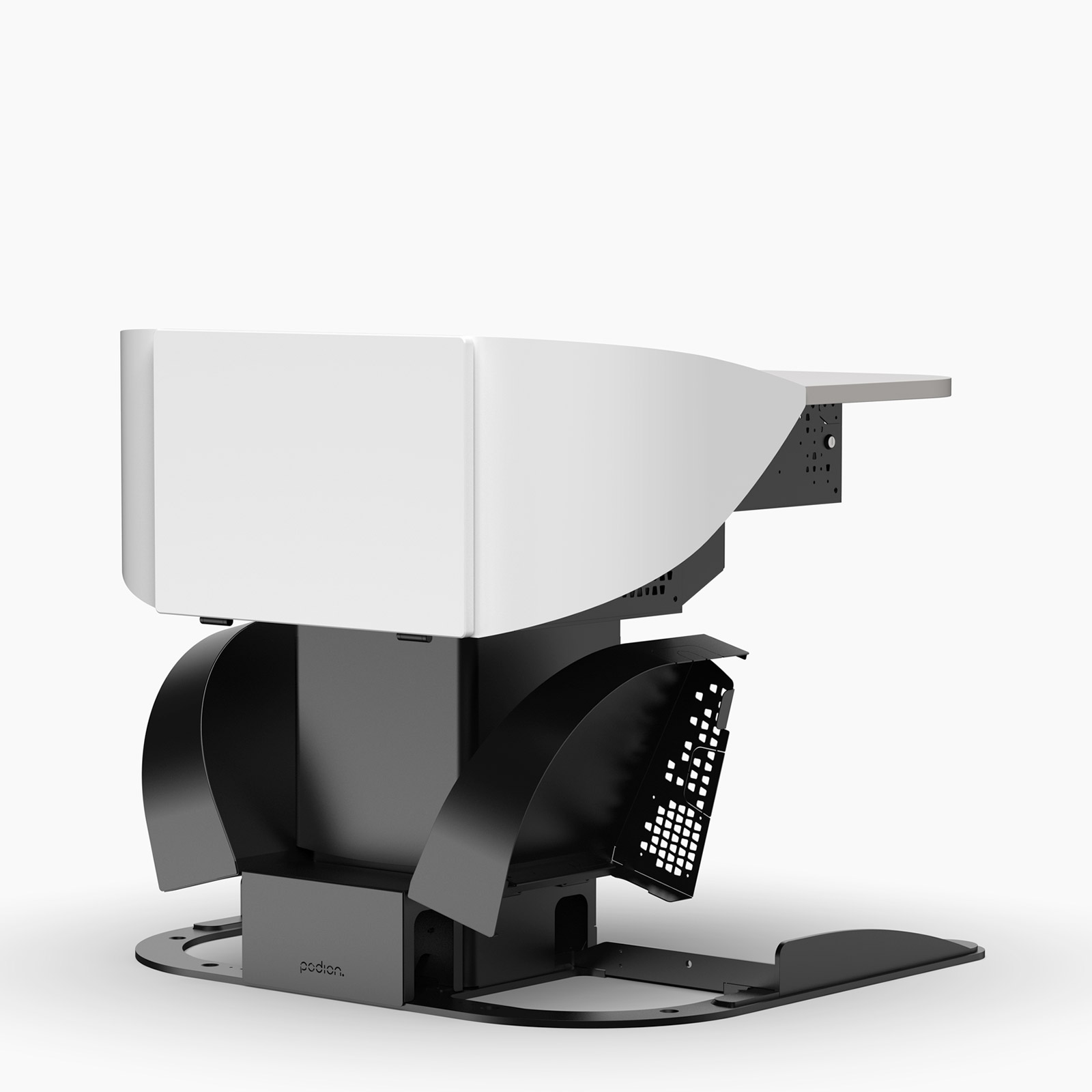

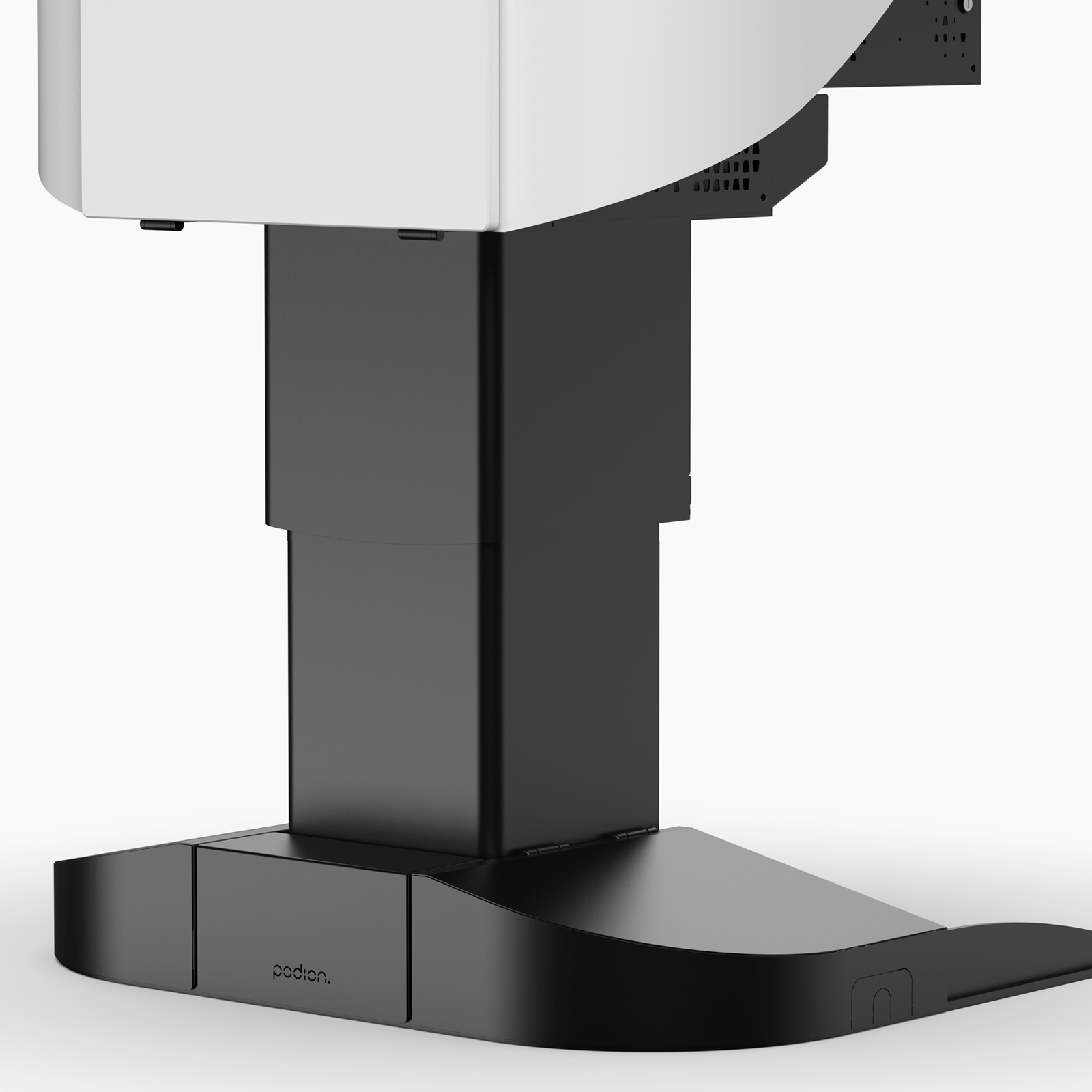

Ingenious Floorbox Access

The base cover simply flips open, granting easy access to floorbox and outlets.

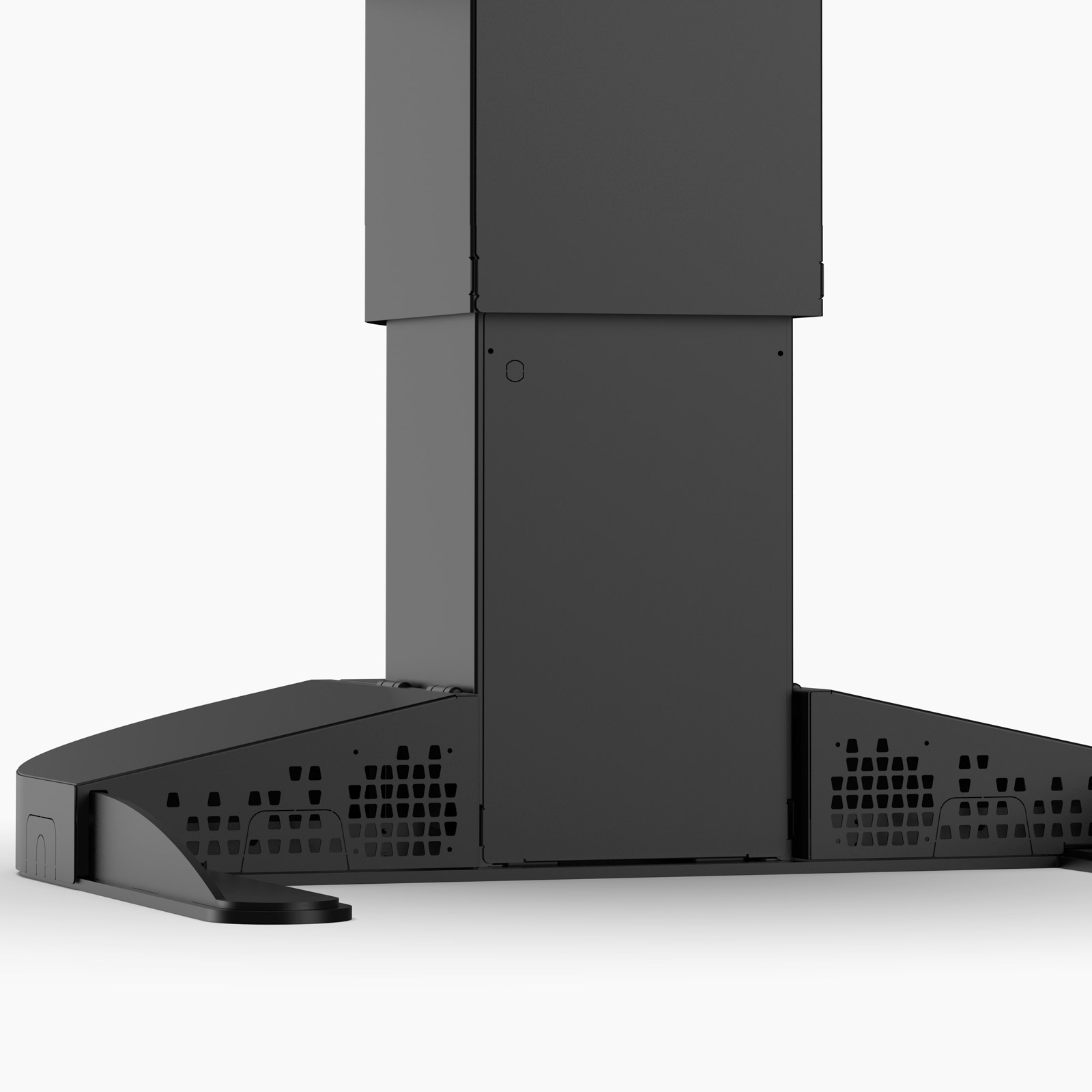

Cables pass effortlessly from the lectern column, through the base, and into the floor via access holes, ensuring a clean and organized setup. The ventilated section of the base cover promotes passive cooling, optimizing airflow and temperature control for reliable equipment performance.

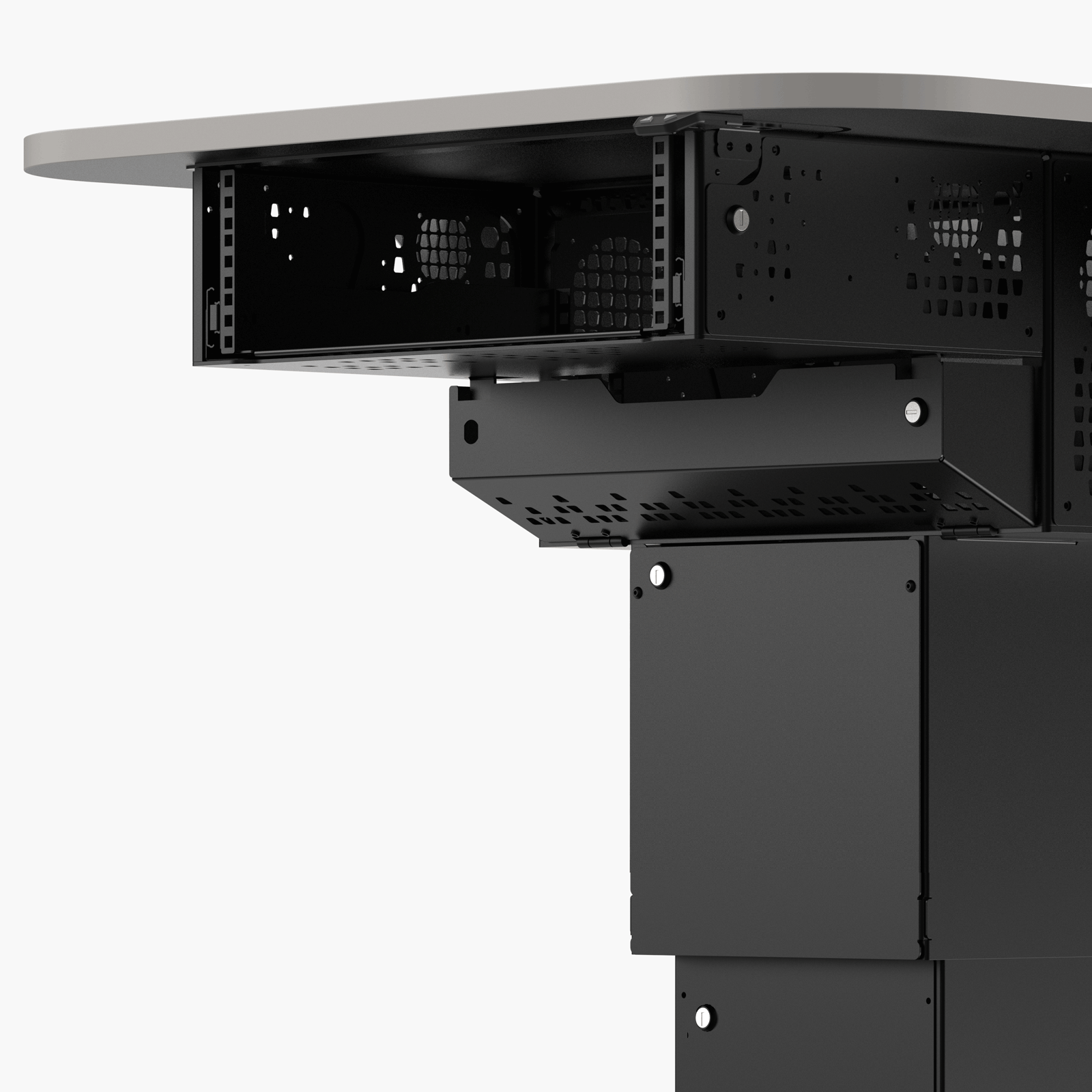

5RU Rack - Front Access

Unlock and drop down the hinged logo panel to reveal the 5RU racks on the audience side.

Pull out the rack trays, adjust equipment, connections, and cabling with ease, then slide the trays back in. Close the logo panel to instantly restore the lectern’s sleek, professional appearance.

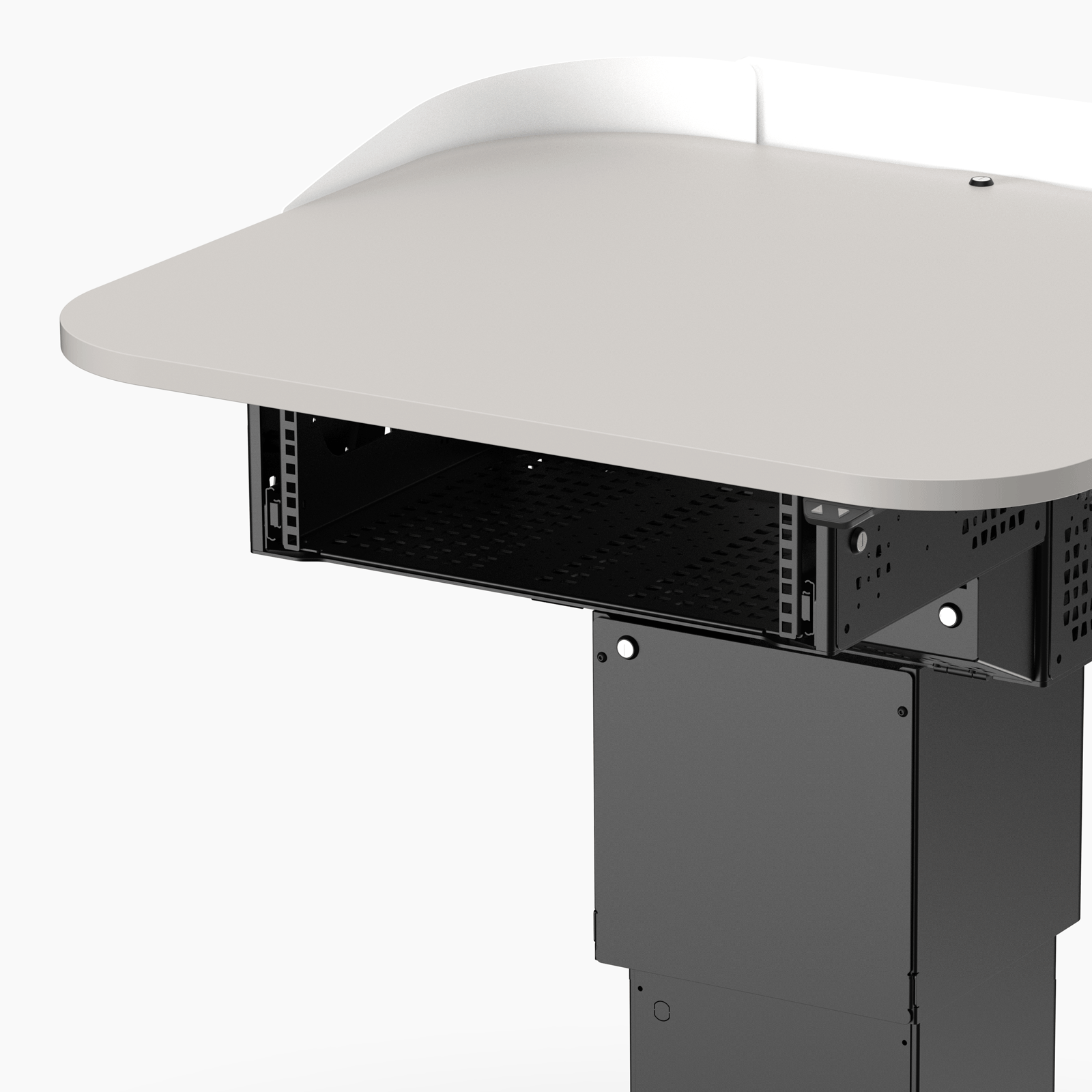

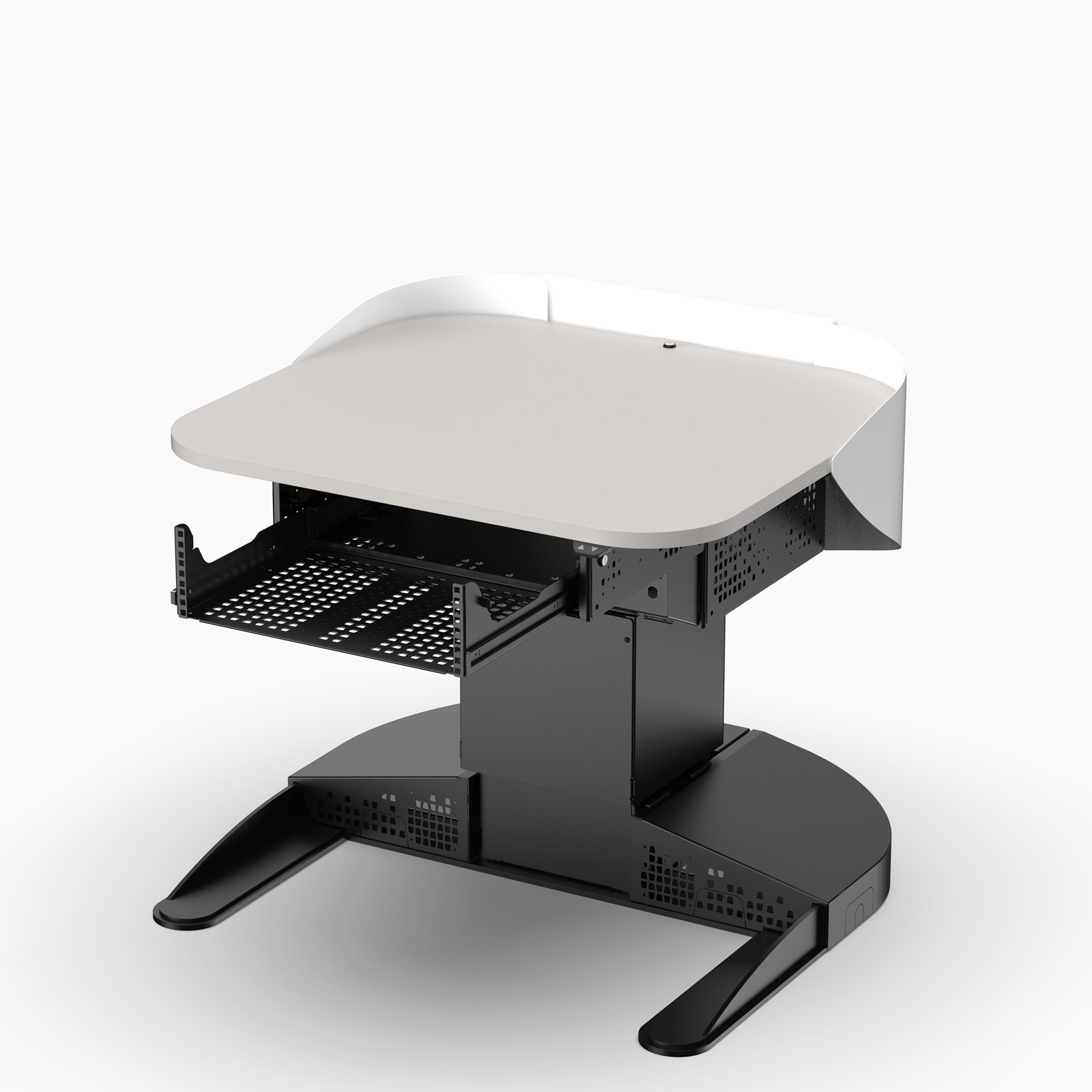

3RU Rack - Rear Access

The 3RU sliding rack trays are easily accessed from the presenter’s side of the lectern.

Simply pull out the tray to reach equipment, connections, and cabling. Smooth sliding rails guarantee effortless operation.

Crafted from steel with ventilated slots and a black powder-coated finish, these trays enhance both airflow and durability.

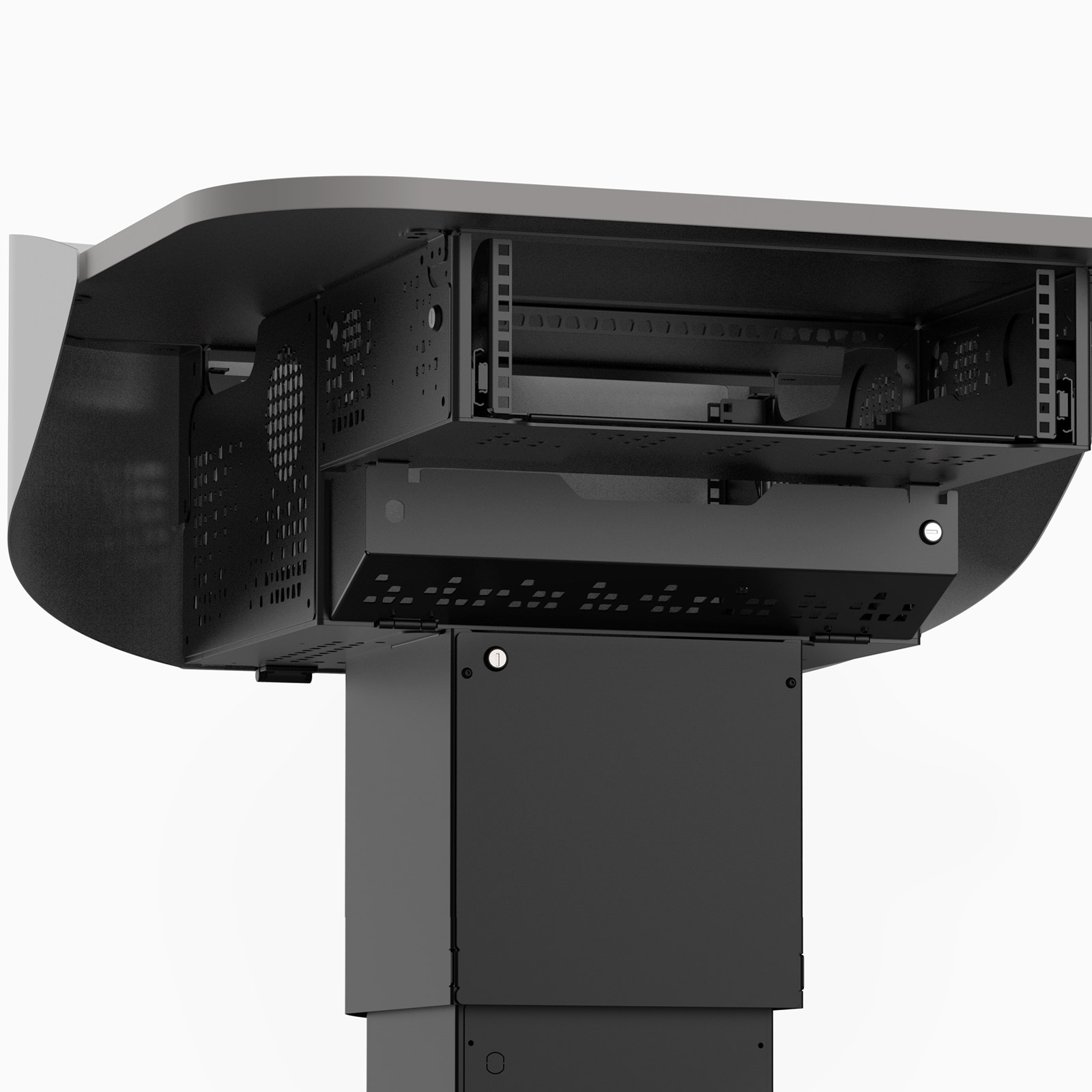

Maximize Equipment Lifespan with Natural Convection

Orion enhances reliability and extends the lifespan of your equipment by preventing overheating.

Its ventilated panels allow heat to dissipate naturally, ensuring a steady flow of cool air around your AV / IT components.

This fanless, noise-free design maintains optimal temperatures, keeping your equipment running smoothly and efficiently for longer.

ORION-1 natural convection cooling for lectern

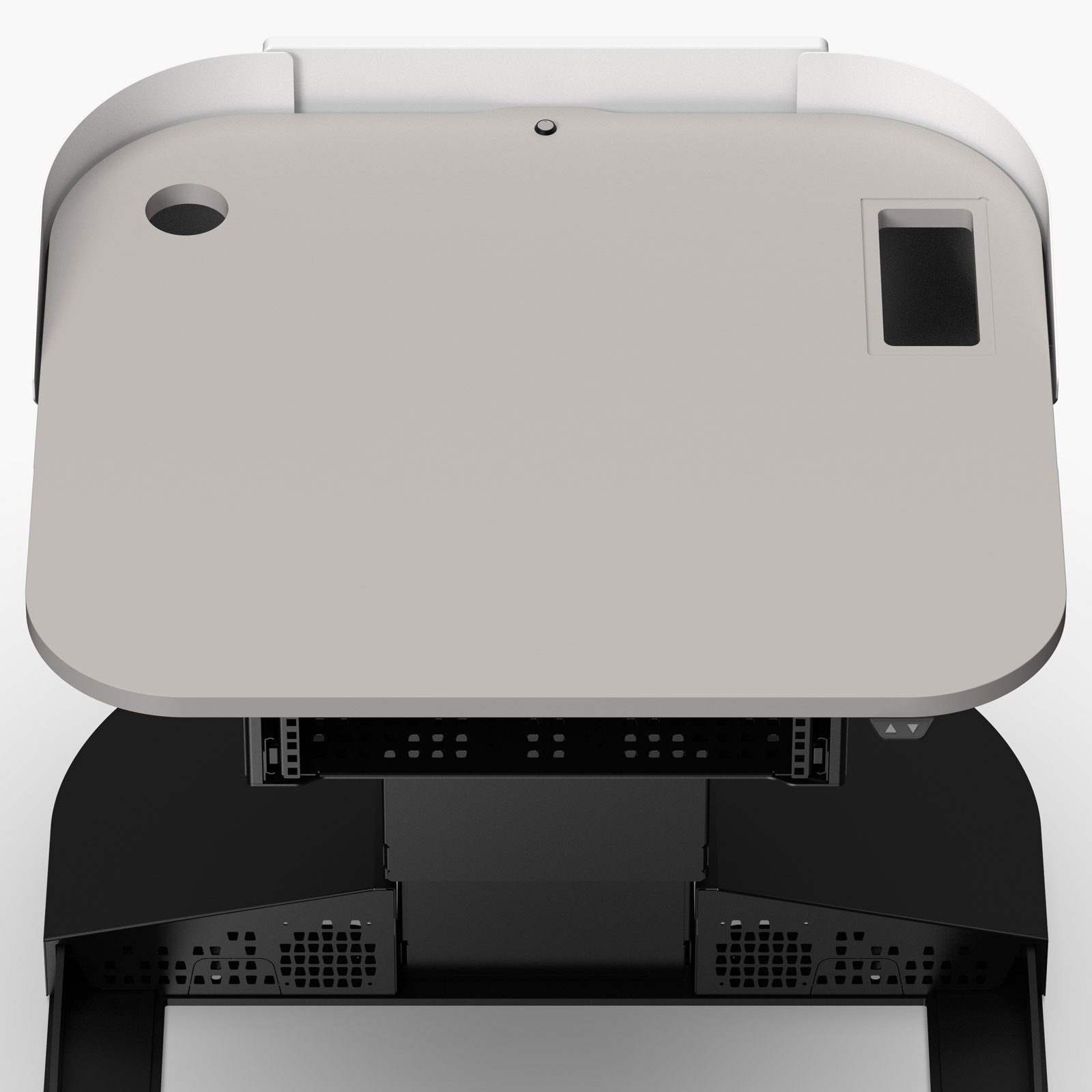

Streamline Installation with Custom Worktop Cutouts

Optimize your installation process with custom worktop cutouts made during manufacturing.

This ensures precise hole sizes and locations, reducing installation time and minimizing disruption and dust on-site or in rack build environments.

Multimedia lectern benchtop cut out service

Options

Enhance Functionality, Storage, and Mobility.

Transform Your Lectern into a High Impact Display

Integrate an HDMI monitor into your lectern and instantly create a visual focal point.

Showcase eye-catching visuals—logos, presentations, or key messages—that draw attention and keep your audience engaged.

Whether for conferences, corporate events, or educational settings, this setup adds a high-impact visual element, ensuring your message stands out and resonates.

Enhance Access to Equipment

Upgrade to the optional split-hinged worktop for even greater access to rack-mounted equipment.

Mounted on tension hinges, the worktop flips up and stays securely in place, allowing integrators to work with ease and efficiency.

For added security, a keyed or combination lock protects your equipment, preventing any unauthorized access.

Add Storage with a Pull-Out Drawer

Enhance your workspace with our durable steel pull-out drawer, offering quick access to pens and other essentials right where you need them.

Smooth pull-to-open, push-to-close functionality
Discreetly mounted beneath the lectern worktop
Available in left or right side placement for versatility
Non-locking design for fast, hassle-free access

Optional pull-out drawer under multimedia lectern worktop for extra storage, perfect for pens, iPhones, and small personal items

Make It Portable with Castor Wheels

Optional heavy-duty, non-marking castor wheels make moving your multimedia lectern effortless.

Easily transport it between spaces, and lock the castors in place for stability when in use, ensuring smooth mobility and secure positioning wherever you need it.

Multimedia university lectern with lockable castor wheels for easy portability

Branding

Tailor It to Match Your Brand and Space.

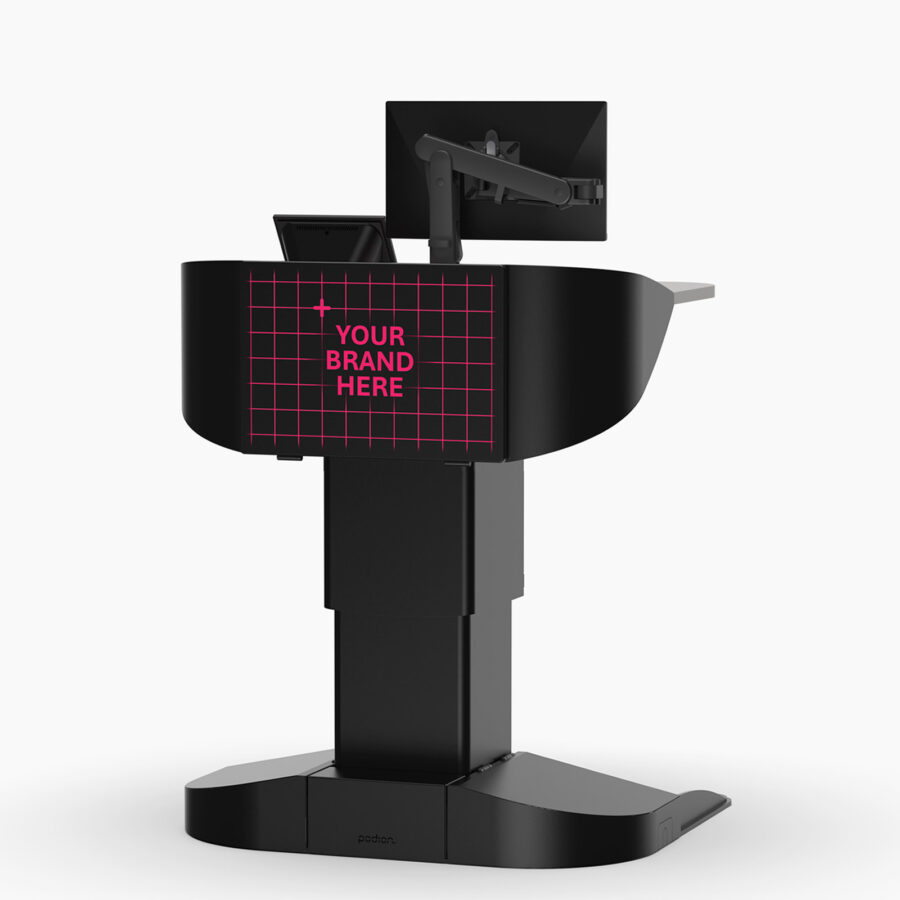

Add your logo

Logo Panel Size

550mmW x 380mmH

Printing Options

Vinyl Wrap: Your brand’s logo and imagery are printed on a vinyl wrap that covers the logo panel or the entire front of the lectern, creating a seamless, cohesive design that transforms it into a visual centerpiece.
Vinyl Print:A cost-effective option where your logo is printed on a flexible vinyl film and applied directly to the lectern's surface. It offers vibrant colors and a smooth, integrated appearance, perfect for flat surfaces.
Acrylic Print: Your logo is printed behind a clear, rigid acrylic panel, creating a glossy, high-end finish. This method adds depth and dimension, giving your branding a premium, polished look.
3D Laser Cut: Your logo is precisely cut from durable materials like metal or acrylic, adding a bold, raised effect that gives your branding a striking, three-dimensional presence.
Illuminated Logos: Your logo is enhanced with backlighting or edge lighting, making it shine with a dynamic, eye-catching effect, especially in low-light environments.

Define Your Style

Select Colours and Finish

Whether you envision rich timber, sleek matte, or a high-gloss finish, you have the freedom to select from a dazzling array of options.

Create a look that perfectly matches your style, venue, or brand identity. This is your chance to design a lectern that stands out and makes a lasting impression!

Our in-house Design Team can provide renders that bring your ideas to life. The options are endless.
