Multimedia Lectern | ORION-1
The ORION-1 is a compact, height-adjustable multimedia lectern designed for university lecture theatres, conference centres, modern training facilities and professional presentation spaces.
Developed with input from leading universities, it combines an accessible, ergonomic workstation featuring a generous 1000mm W × 880mm D worktop with a secure 8RU AV equipment rack.
Designed around the needs of presenters and AV integrators, the ORION-1 offers a practical, durable solution for education, corporate and government environments.
Quick Ship – in-stock configuration available
Custom Options – colours, finishes & branding
Free Shipping – to most Australian destinations
USA & Worldwide Shipping – at competitive rates
Designed Around the Presenter
From university lectures to corporate training and conferences, presenters need a workstation that accommodates their equipment, preferred working height and individual needs.
The ORION-1 adapts to each presenter with quiet, motorised height adjustment through a 300mm range. A conveniently positioned one-touch control pad allows users to adjust their working height whenever needed, with the worktop and integrated equipment rack moving together.
Wheelchair roll-in access and generous knee clearance support comfortable use for seated presenters, while the spacious ergonomic worktop keeps presentation equipment within easy reach. Its low-glare finish helps minimise reflections from overhead and stage lighting.
Worktop & Accessibility
- 1000mm W × 880mm D worktop
- Electric height adjustment for the worktop and rack
- Wheelchair roll-in access and knee clearance
- Ergonomic layout for presentation equipment
- Low-glare worktop finish
Built for AV Integration
For university AV departments, integrators and facilities teams, equipment access and serviceability are essential.
The ORION-1 houses AV equipment in a secure 8RU steel rack enclosure, with lockable panels to protect valuable technology. Its tool-less, 360° access design allows technicians to reach equipment and cabling without complicated disassembly, making installation, upgrades and ongoing maintenance more straightforward.
Internal cable management provides concealed routing from the floor to the worktop, keeping wiring organised and out of sight. Natural convection cooling, with provision for additional fans, helps maintain airflow around installed AV equipment.
AV Integration & Security
- Integrated, lockable 8RU equipment rack
- Tool-less, 360° equipment access
- Concealed floor-to-worktop cable routing
- Natural convection cooling with provision for fans
- Rigid steel body construction
Configurations & Optional Features
The ORION-1 is available in a quick-ship configuration, with optional features to accommodate the way your lectern will be used.
Options include:
- Battery pack – enables height adjustment where mains power is unavailable
- Storage drawer – adds convenient storage for stationery and small items
- Locking castors – allows for easy mobility and secure positioning
- Factory-machined worktop cut-outs – accommodate AV and power components
Custom Finishes & Branding
Customize your lectern to complement your space and reflect your organisation’s identity.
Options include:
- Custom colours – non-standard colours in gloss or matte finishes
- Timber finishes – to complement your interior design
- Personalised logo panels – with vinyl wraps, decals, cut-outs or magnetic signage
AV Accessories
Complete your lectern setup with accessories for AV integration, equipment security and added functionality
- RU security plates – with or without cut-outs

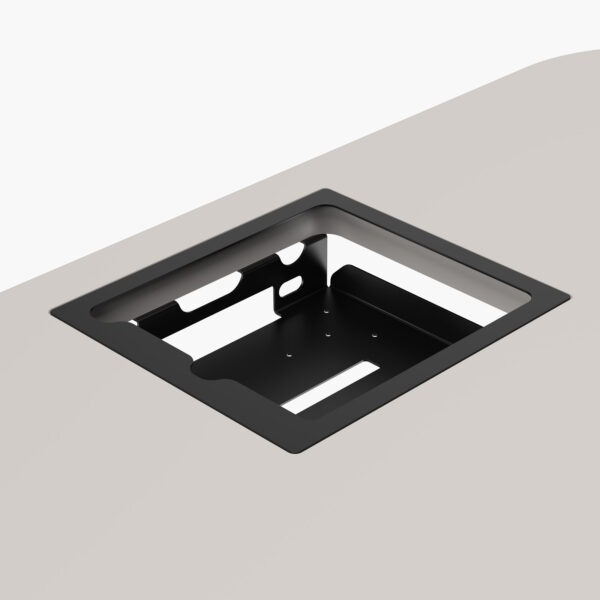

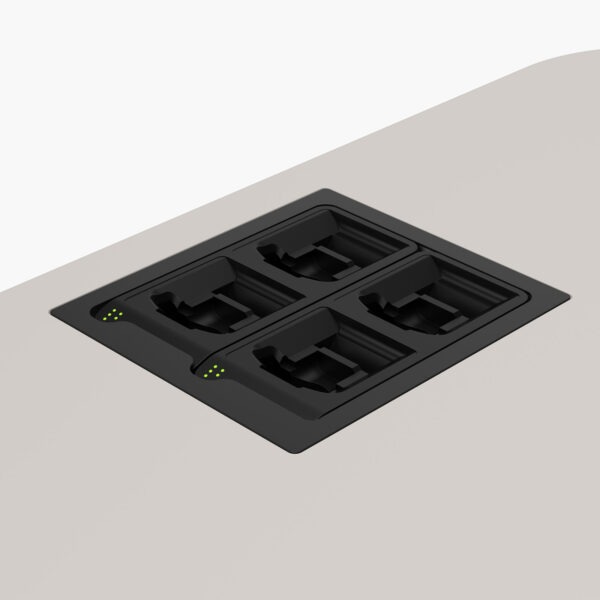

- Worktop housings for AV touch panels and control interfaces
- Explore additional AV accessories
Technical Details
| Measurements | |
| Total rack storage | 8RU |
| Rack space (front) | 5RU |
| Rack space (rear) | 3RU |
| Logo panel | 550mm W x 380mm H (22” x 15”) |
| Height adjustment range | 800mm – 1100mm (31″ x 43″) |
| Worktop | 1000mm W x 880mm D (39” x 35”) |
| Base | 1000mm W x 880mm D (39″ x 34″) |
| Material | |
| Worktop | Laminate |
| Body | Steel |
| Standard Features | |
| 19″ 5RU Slide out rack | 1 |
| 19″ Slide out rack | 1 |
| Security locks | Keyed-alike or combination locks |
| Branding | |
| Logo applications | Vinyl wraps, decals, cut-outs or magnetic signage |
| Colours & Finish | |
| Standard | Grey worktop White or black front panel Black body and base |
| Custom | Non-standard colours Gloss or matte Timber finish |
| Download Datasheet | |
Configure your Lectern

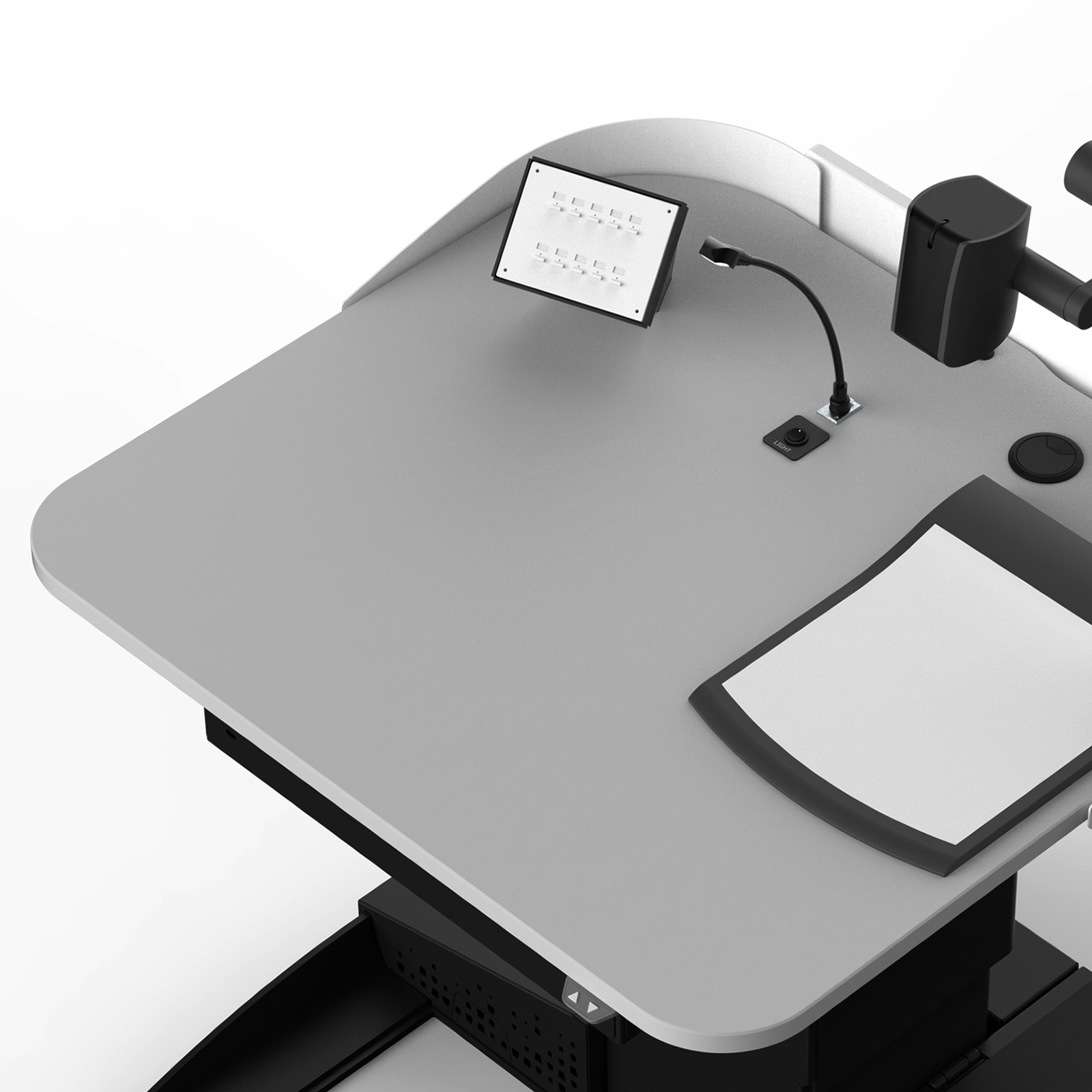

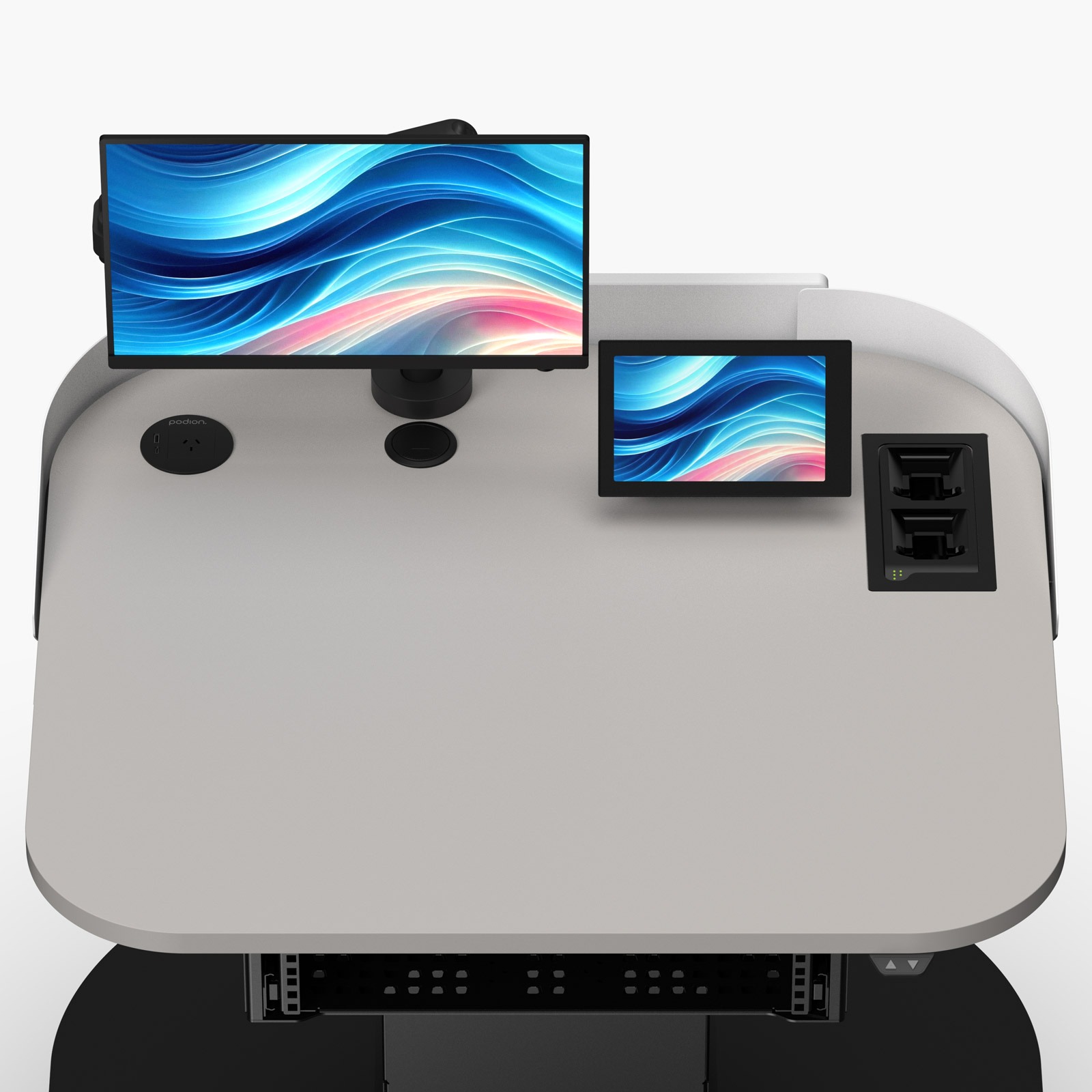

Worktop
Designed for professional AV integration and user-friendly operation
- Generous space for monitors, integrated controls and AV equipment
- Raised logo panel provides a clean, audience-facing appearance
- Low-glare worktop finish minimises reflections from room and stage lighting.
- Smooth, rounded edges eliminate sharp corners for safer use
- Stain-resistant, low-maintenance surface designed for constant use

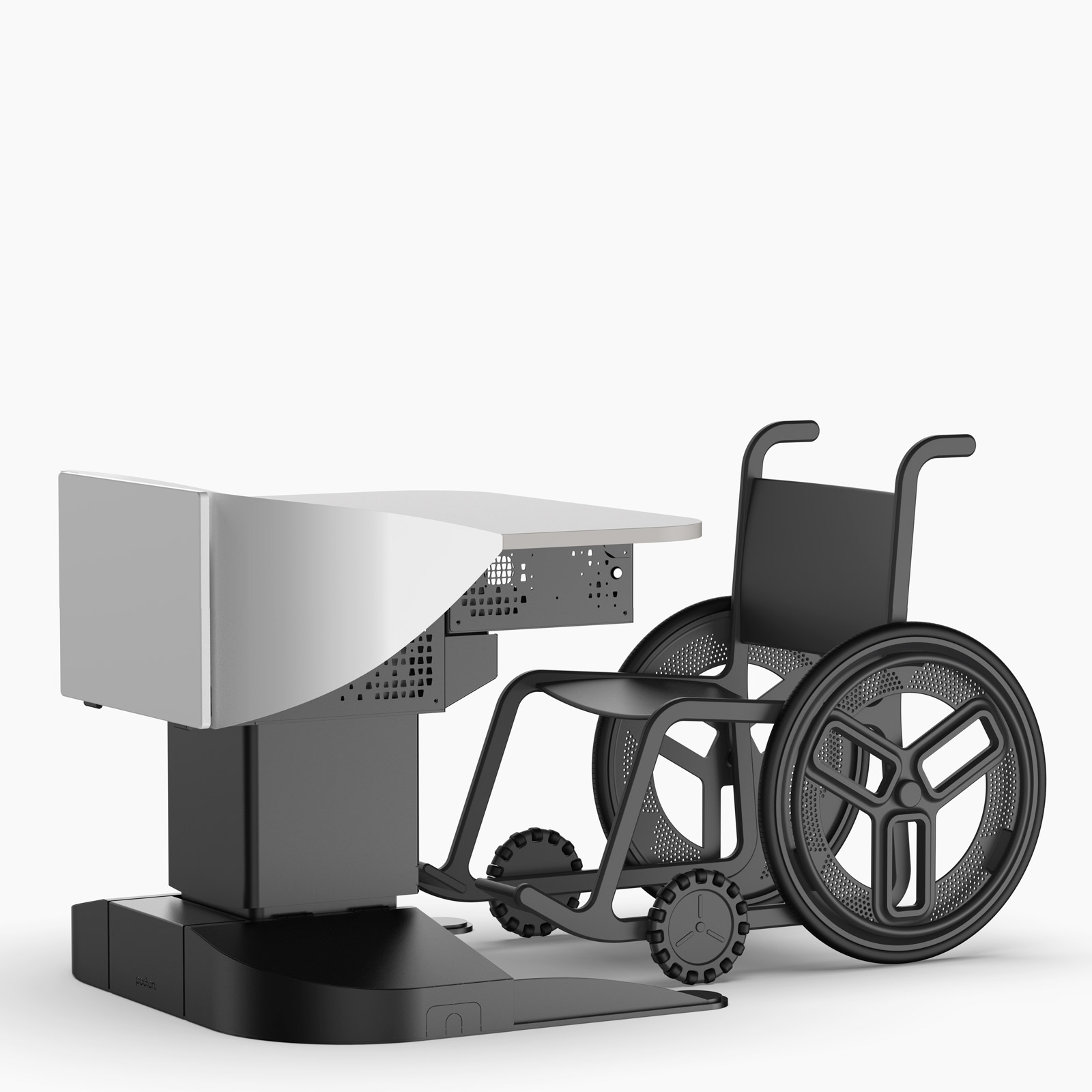

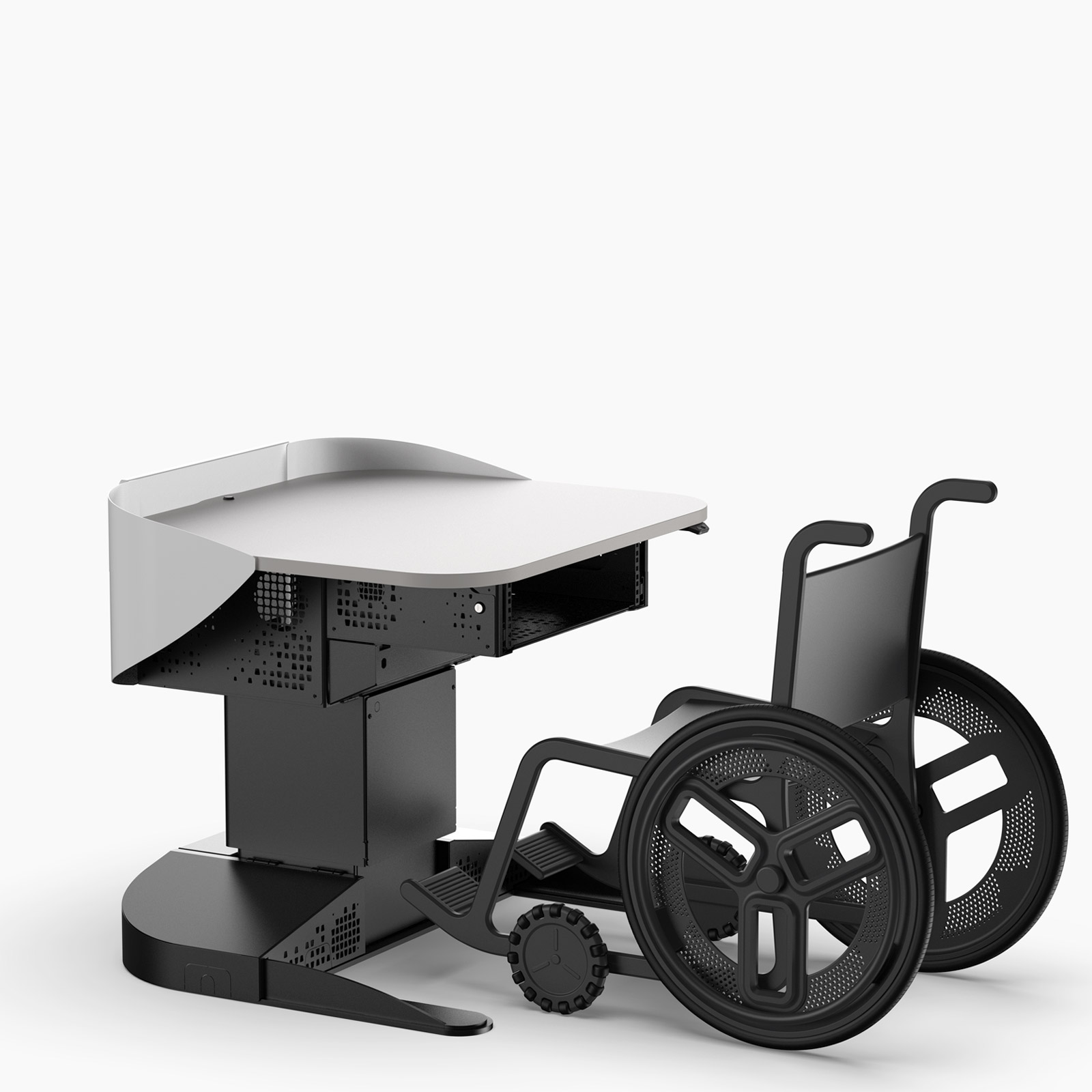

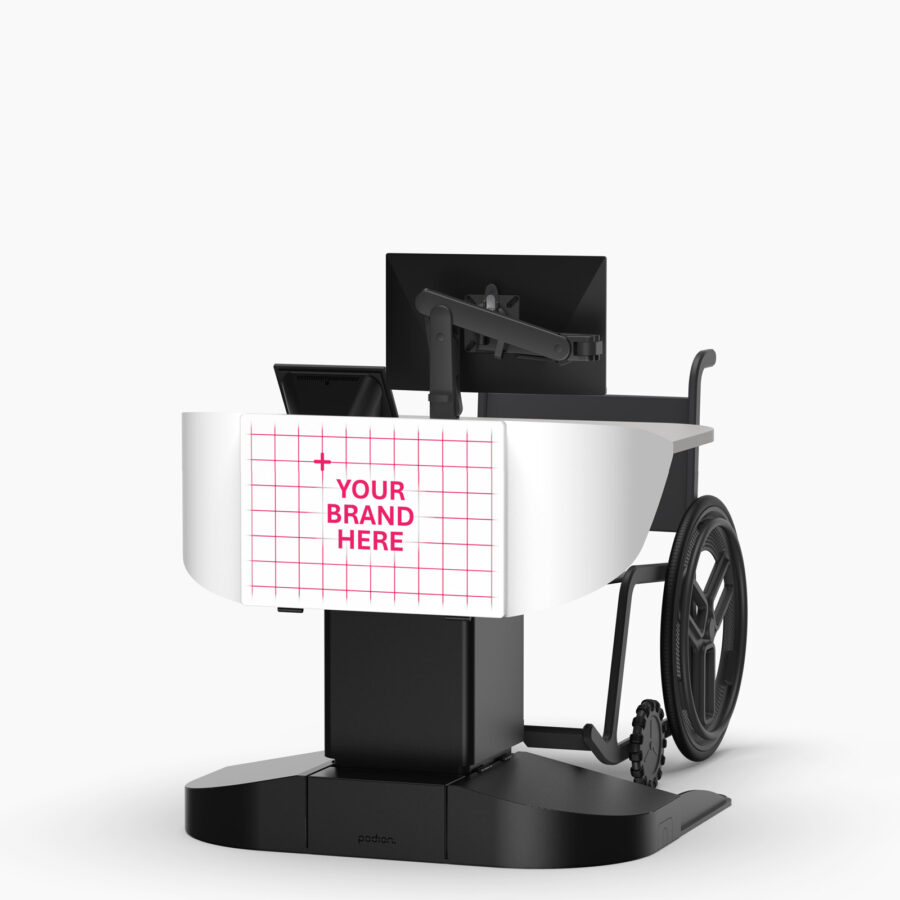

Wheelchair Accessible
Designed for inclusive teaching and presenting.
- Open U-shaped base allows smooth roll-in access.
- Generous knee clearance for comfortable seated use.
- Equal access to controls and devices
- Internal cable management keeps the area clear and safe.
Height Adjustment
Supports comfortable use whether seated, standing, or using a wheelchair.
- Smooth, motorised height adjustment with a 300 mm range
- Worktop and rack move together to keep equipment aligned
- One-touch control pad positioned on the worktop edge
- Quiet, precise operation for seamless presenter changeovers

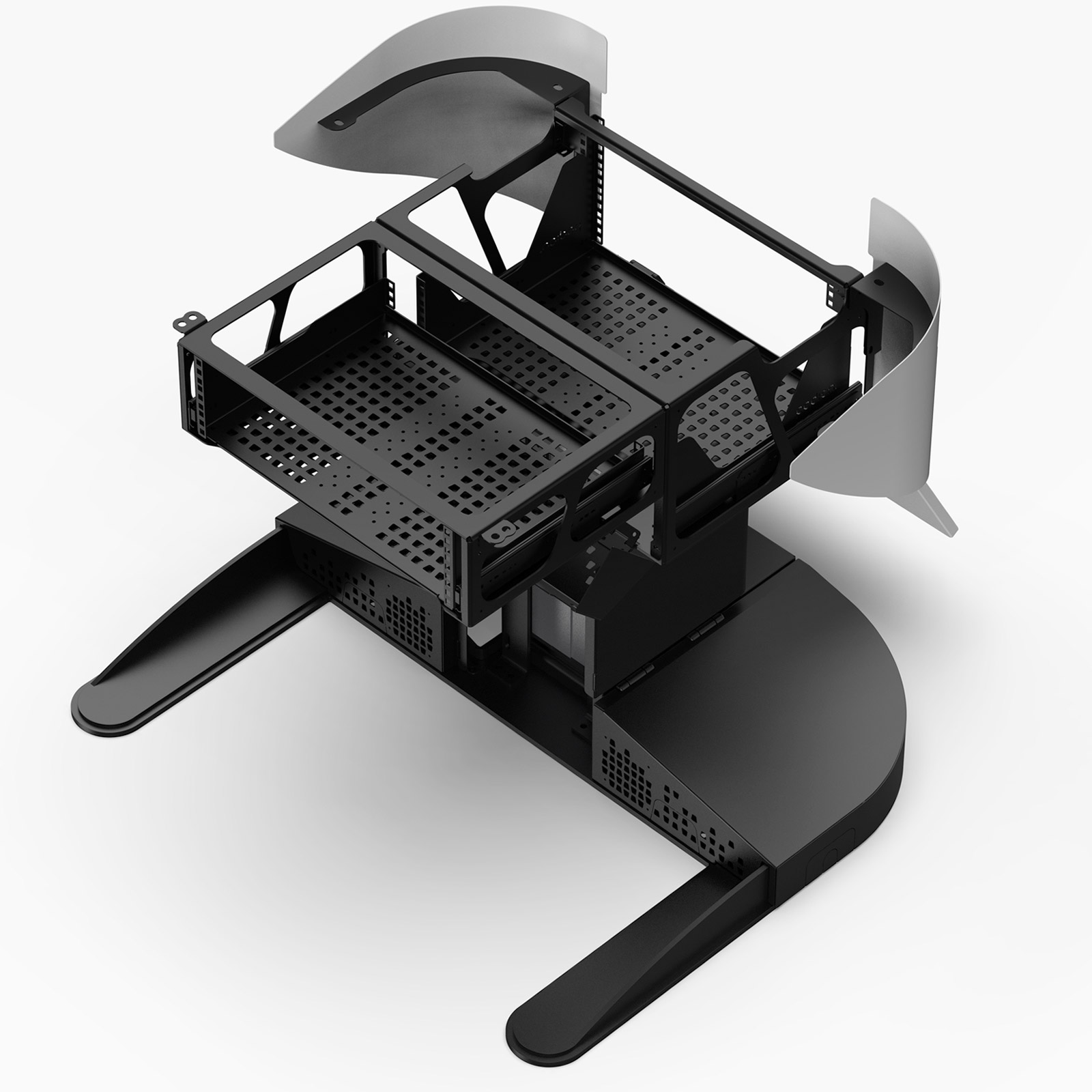

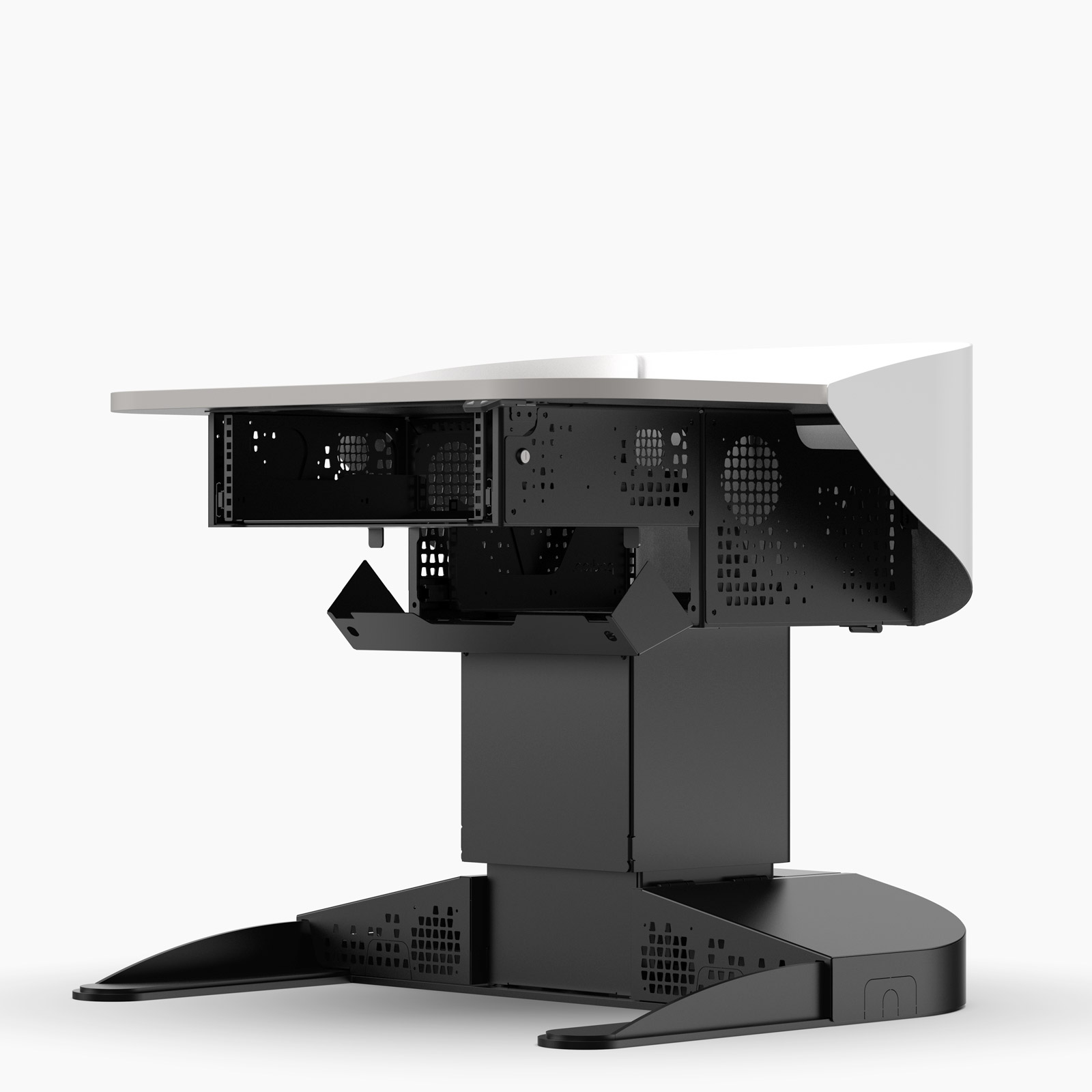

Equipment Storage
The steel chassis keeps equipment secure and neatly organised.
8RU Rack Space
- 5RU Slide-out rack tray
- 3RU Slide-out rack tray
Features
- 360° equipment access allows quick installation and easy servicing.
- Lockable panels provide full access while maintaining equipment security.
- Integrated cable management keeps wiring organised and service-ready.
- Passive ventilation maintains airflow for efficient, reliable performance.

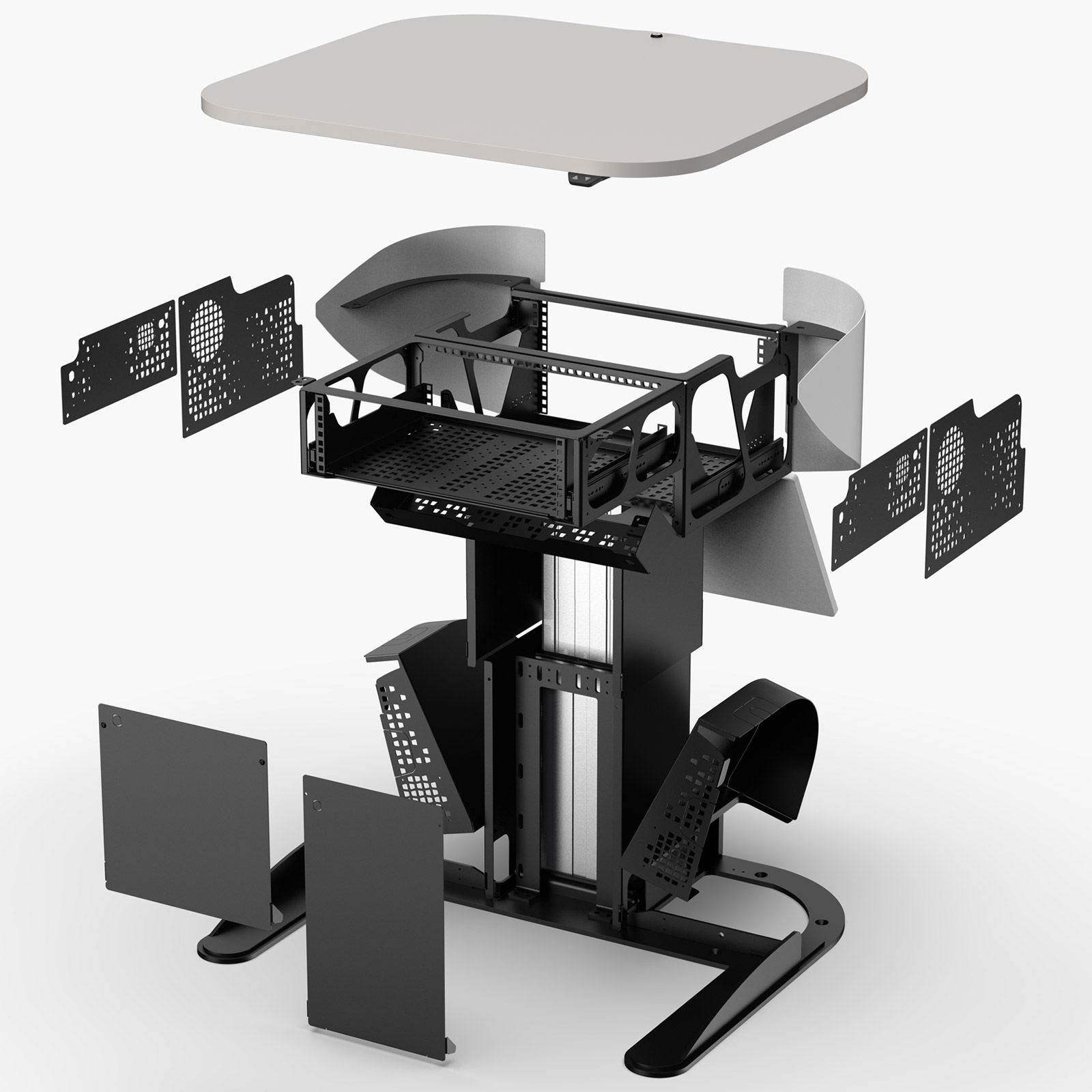

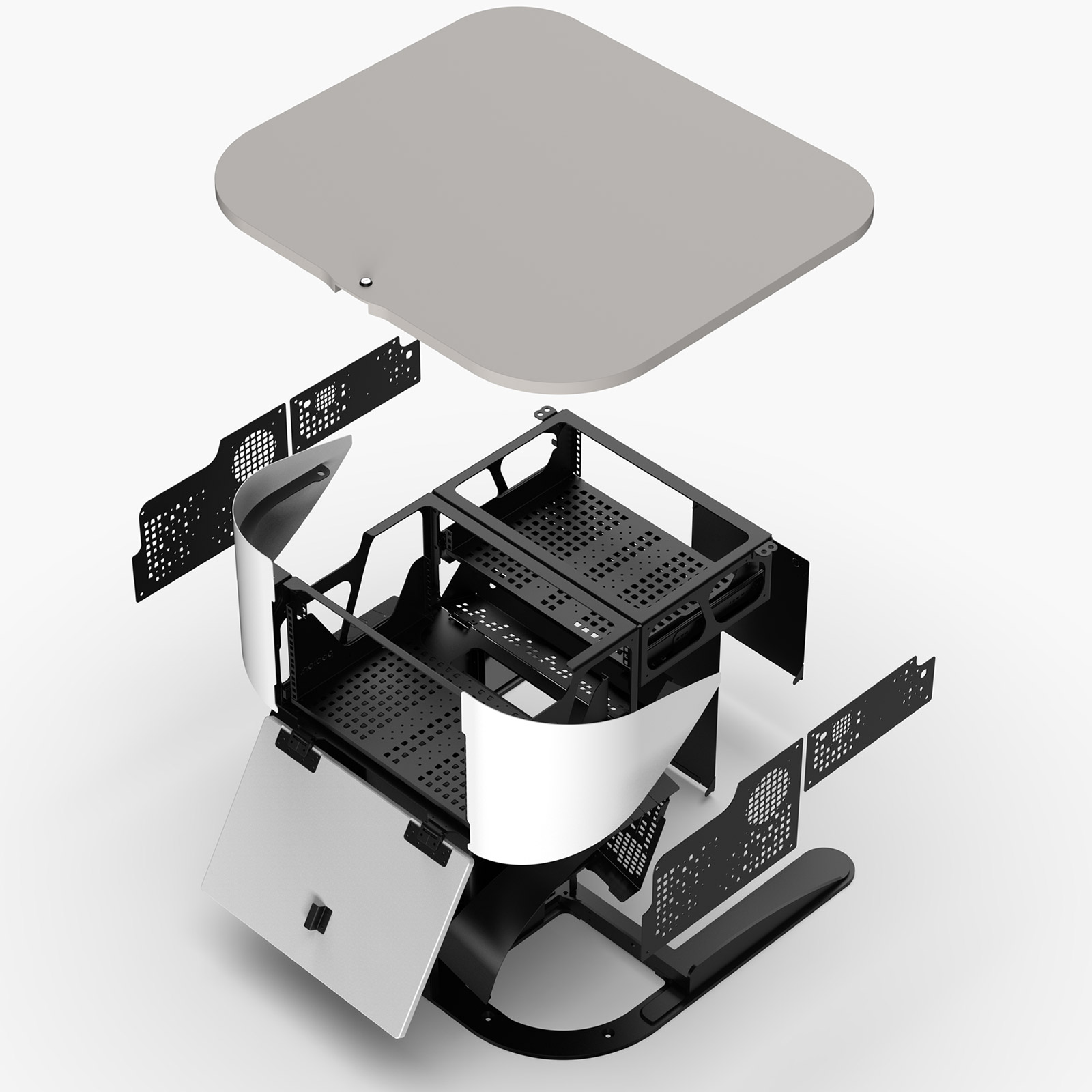

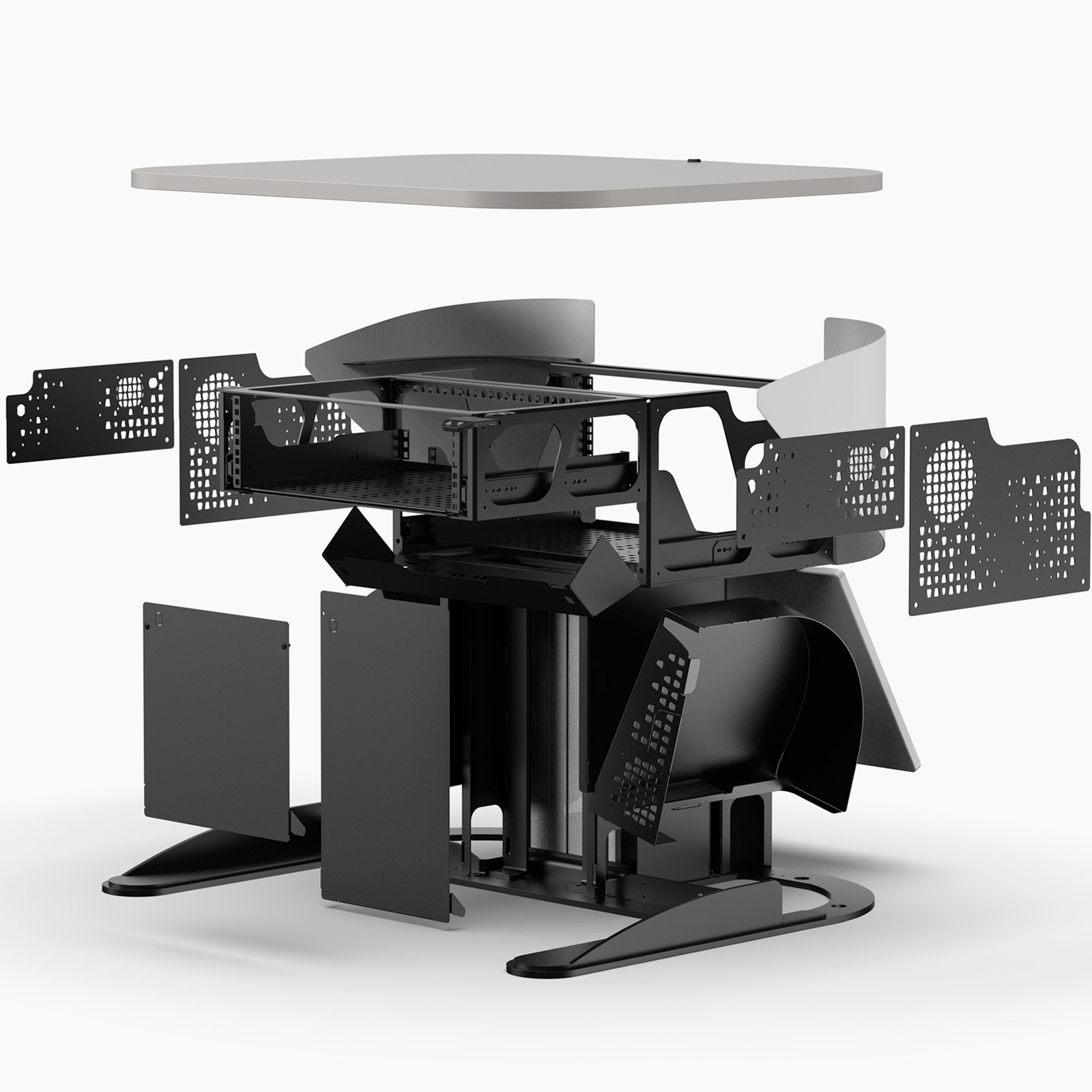

360° Access to Equipment
AV integrators have greater access to equipment than ever before - without compromising security.
Access Points - Body
- Removable worktop (bolted in)
- Hinged logo panel (lockable)
- Removable fins
- Removable side plates (lockable)
- Slide-out rack trays
- Hinged access panel to the rear of 5RU rack (lockable)
Access Points - Base
- Removable column covers (lockable)
- Flip-up base cover
- Cable knockouts
- Access hole to floor box
5RU Rack Access - Front
The lockable logo panel gives integrators access to the front of the 5RU rack bay:
- Unlock the worktop-mounted lock to lower the hinged logo panel in a controlled motion, opening the service area.
- Slide the 5RU rack tray forward to expose equipment, terminations and cabling, avoiding the need to reach inside the enclosure.
- Return the tray and relock the logo panel to secure the rack after servicing.

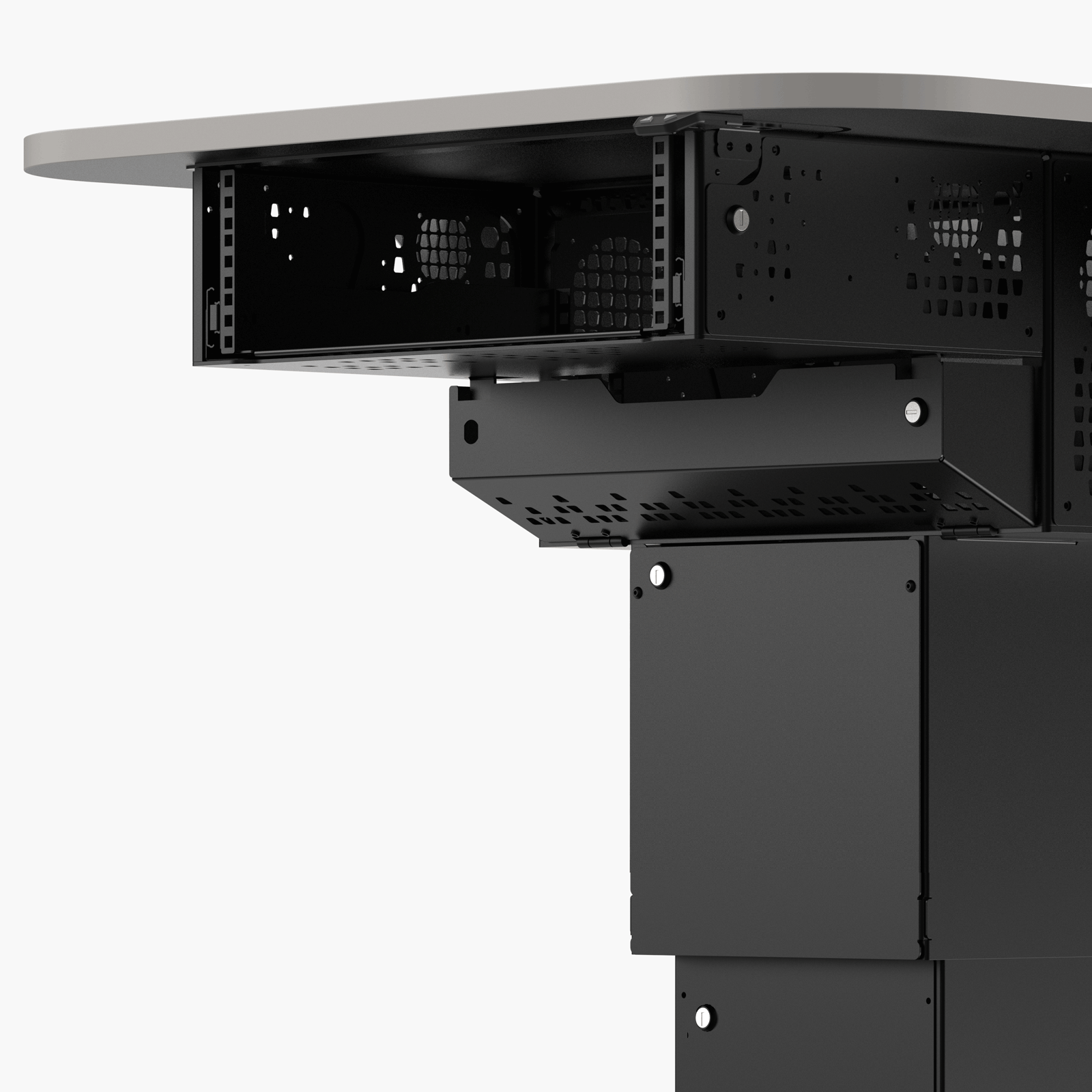

5RU Rack Access - Rear
A slim hinged panel gives integrators access to the back of the 5RU rack bay:
- Unlock the panel and let it swing down on its hinges for quick, tool-free service access.
- Optional locks prevents tampering of equipment.
- Ventilated steel construction supports natural airflow.

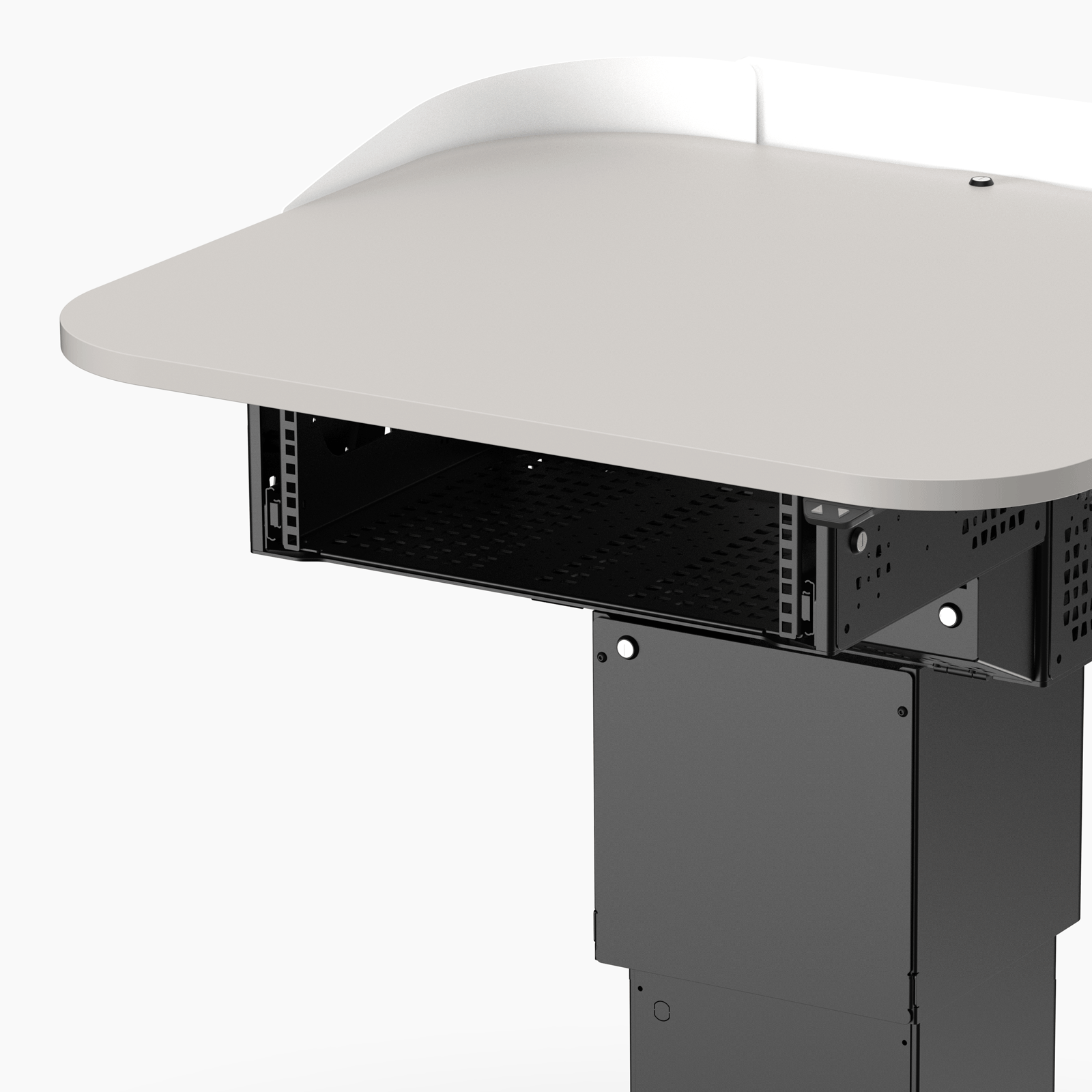

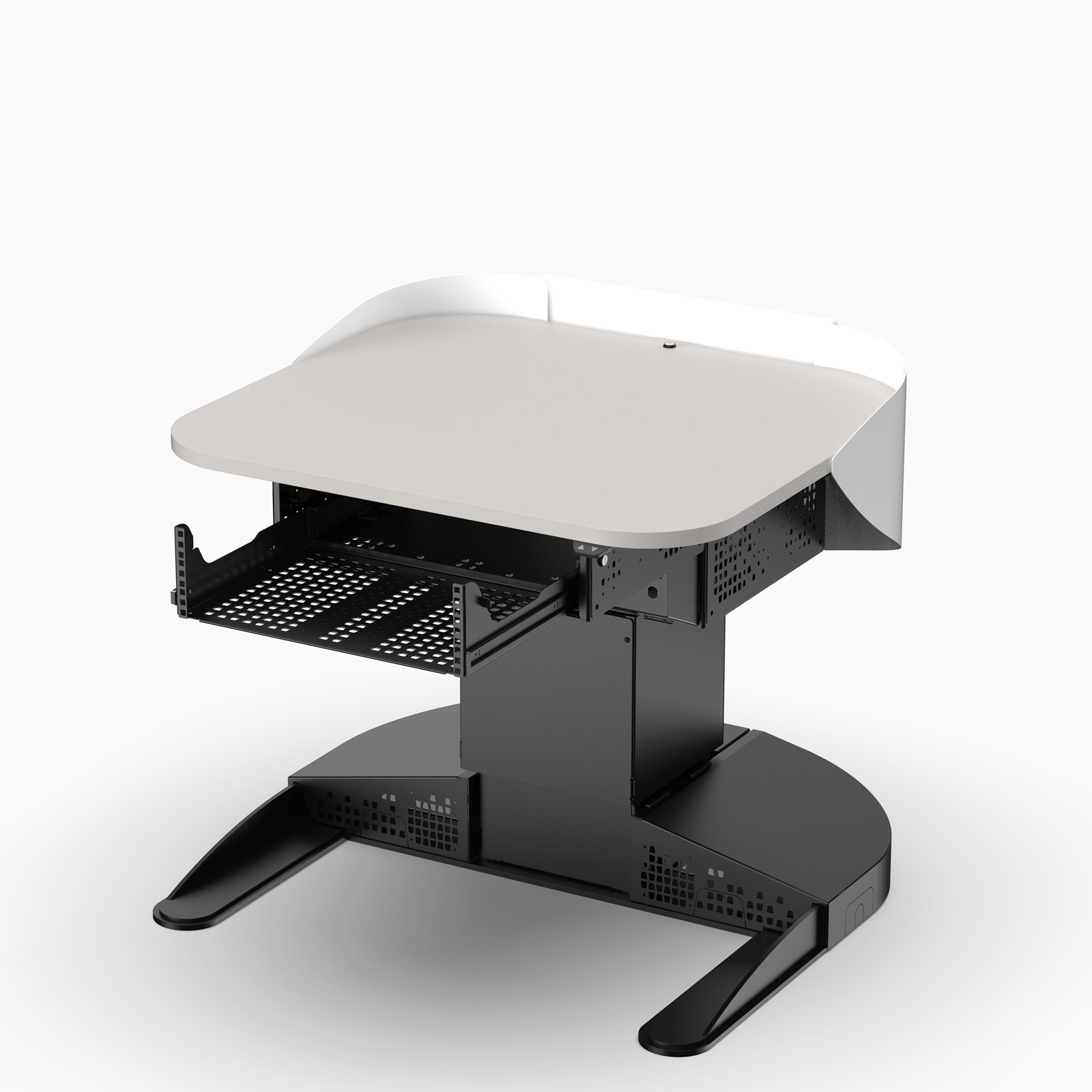

3RU Rack Access
Slide out trays gives integrators access to the 3RU rack bay:
- Pull the rack tray out to reach equipment, terminations and cabling.
- Full-extension slide rails provide smooth, reliable operation.
- Ventilated steel construction supports natural airflow.
- Optional 3RU security panels prevent tampering and equipment theft.

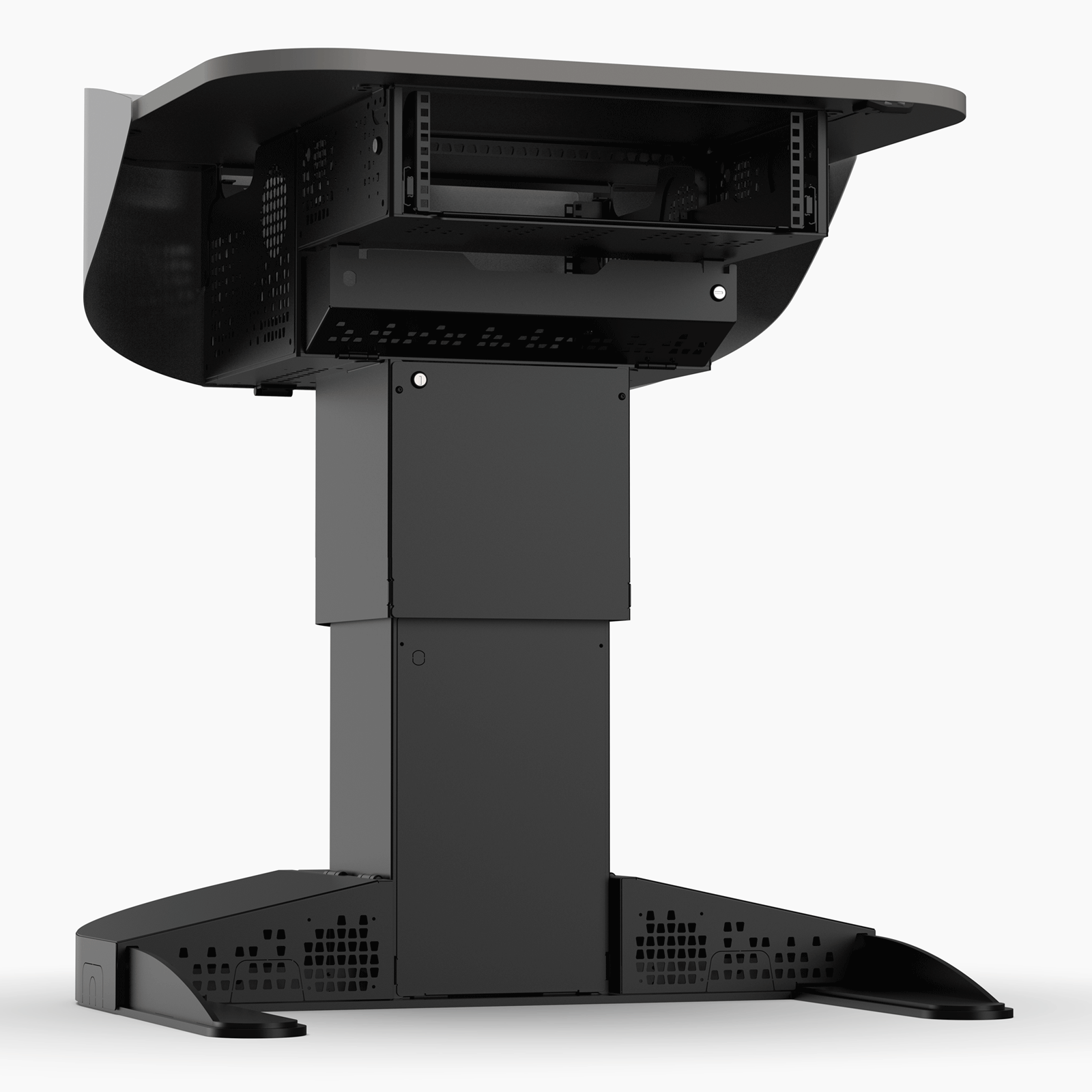

Column Access
Removable column covers gives integrators access to internal routing for easy installation and service.
- The height-adjustable column includes two removable covers for full-height access.
- Unlock the covers using optional keyed-alike or combination locks.
- Unscrew each cover from the column to access internal cable and power runs.

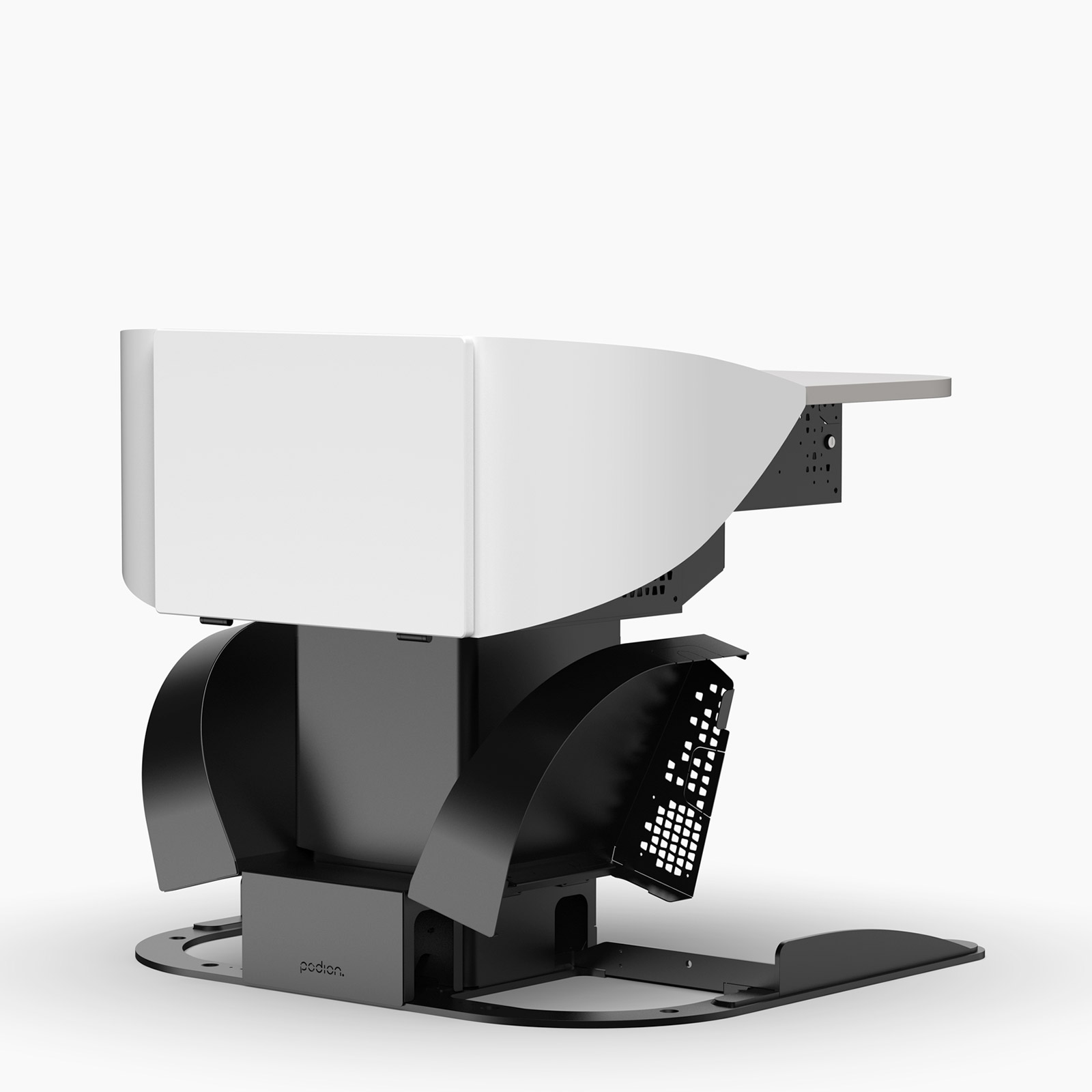

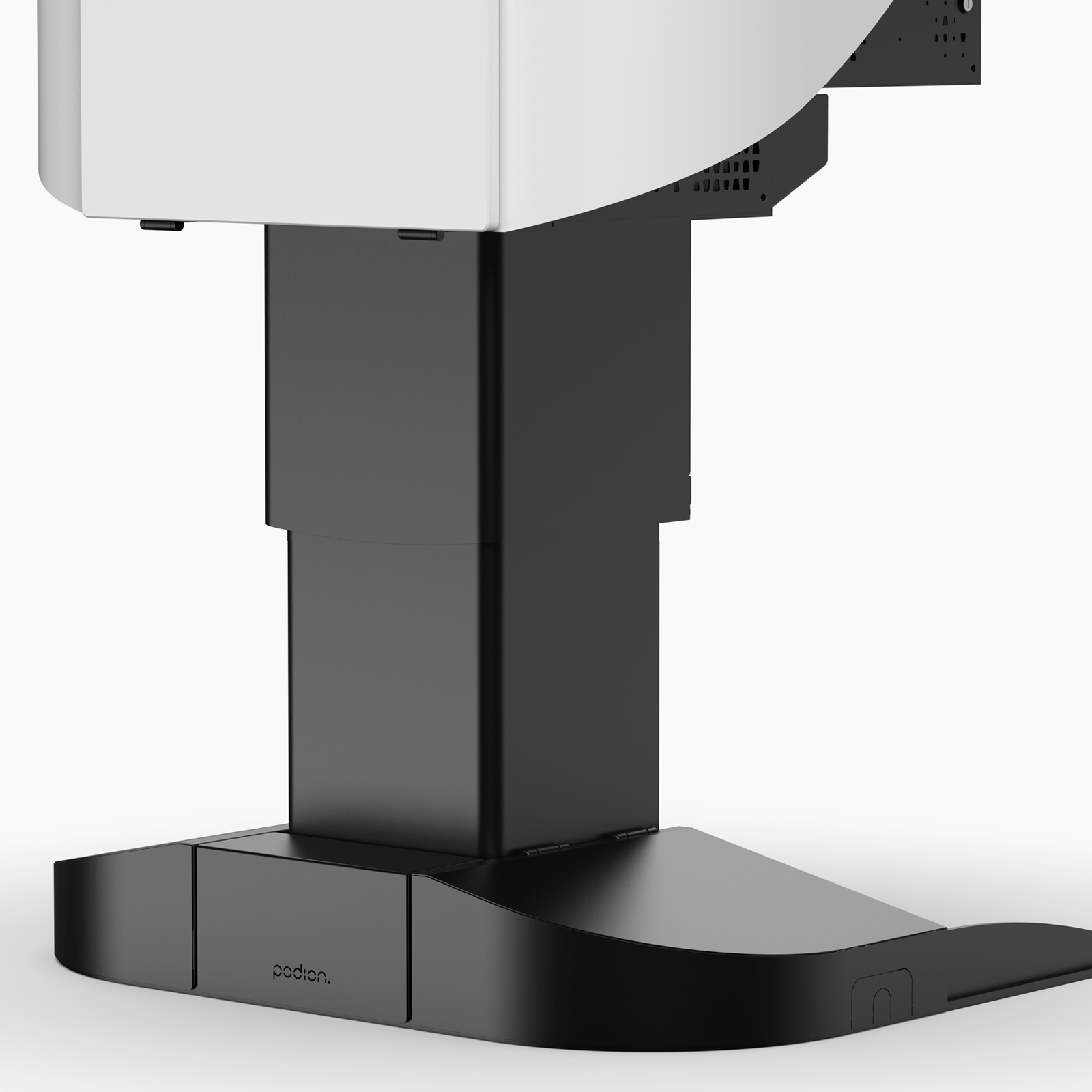

Floorbox Access
The base cover flips open to provide access to the floorbox and outlets.
- Cables route cleanly from the column through the base and into the floor for a tidy, integrated setup.
- A ventilated section supports passive airflow to help maintain stable equipment temperatures.

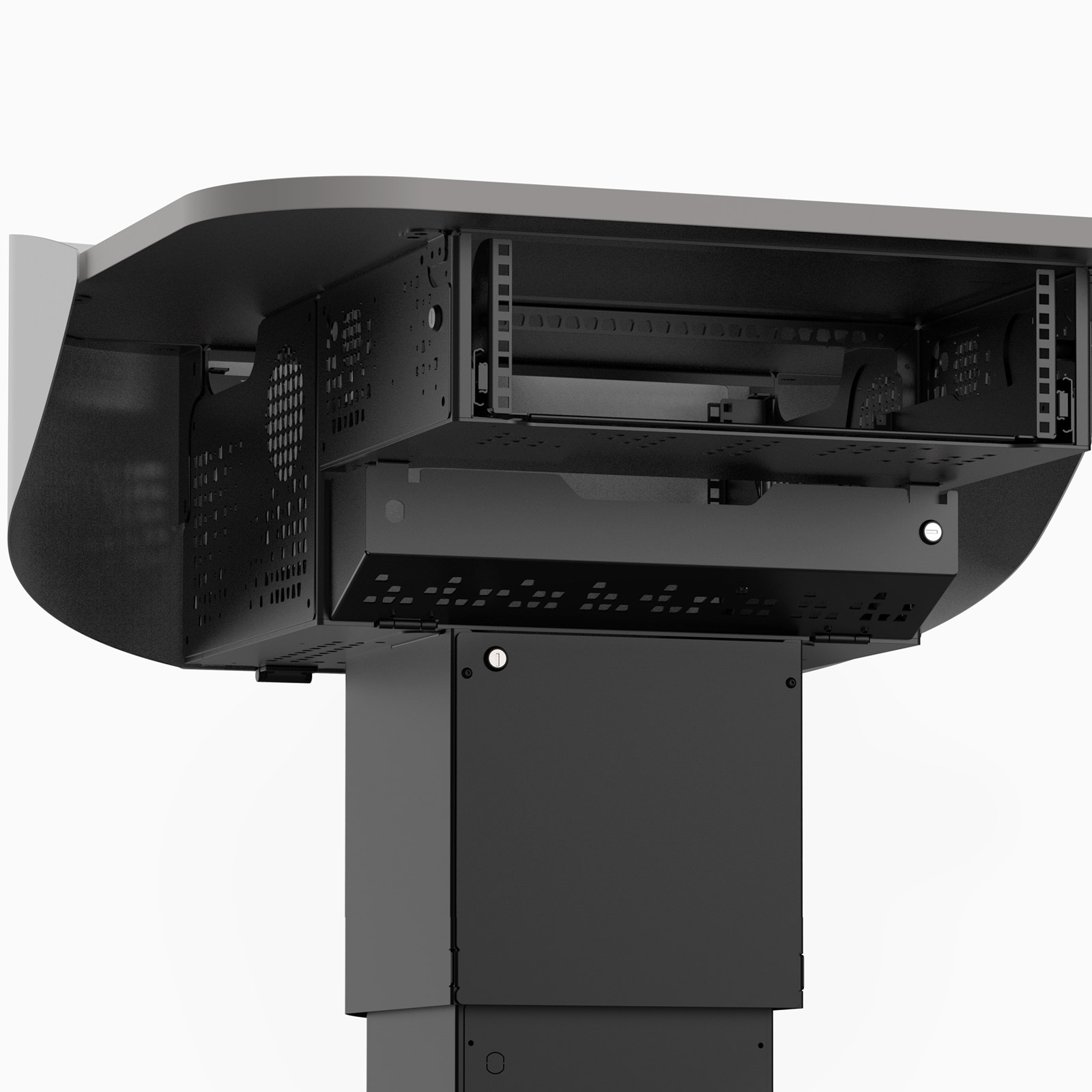

Integrated Ventilation
Perforated steel sections throughout the lectern support natural airflow, helping AV/IT equipment operate at stable temperatures.
- Ventilated internal chassis promotes airflow around mounted hardware.
- Perforated rack trays release heat and prevent localised hotspots.

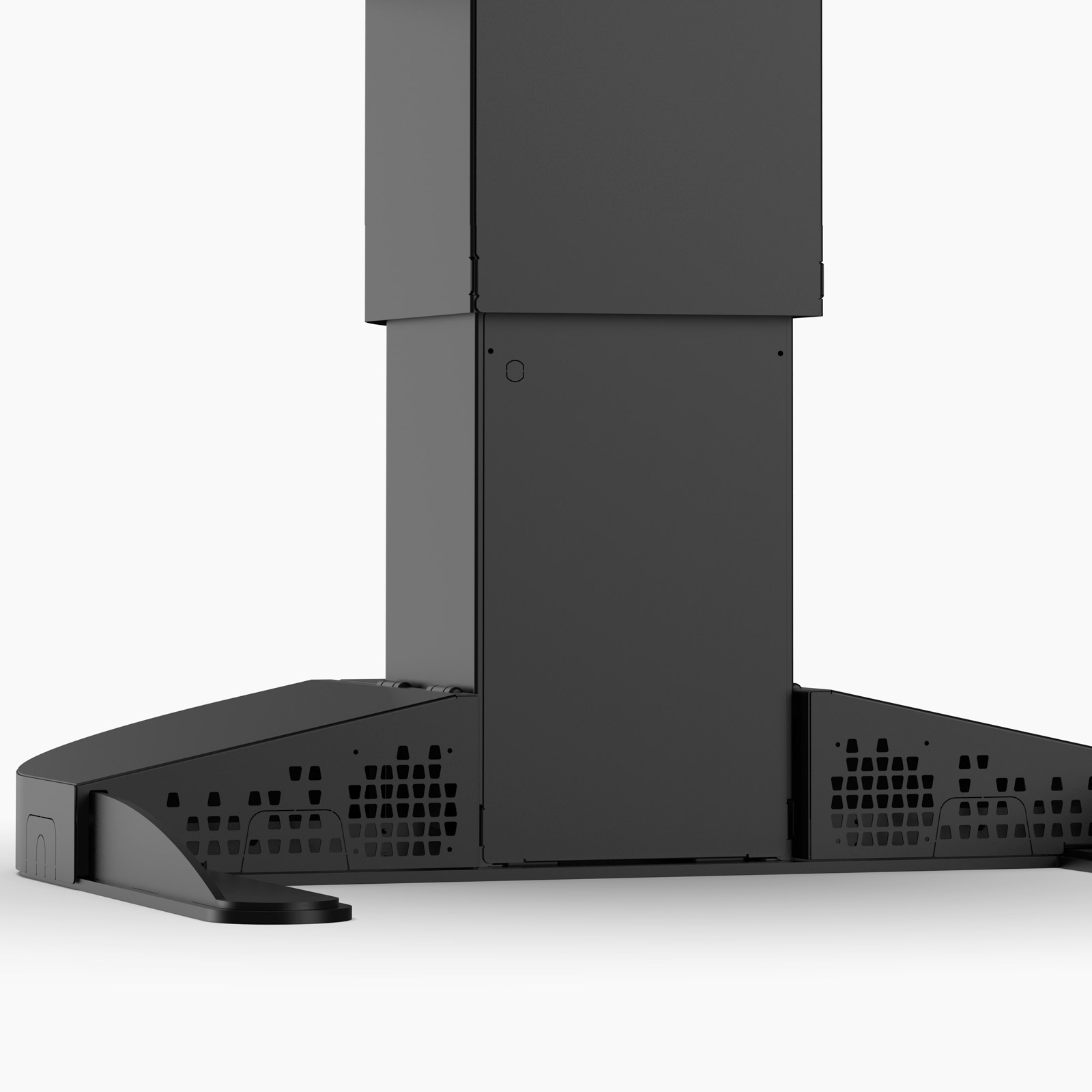

- Ventilated base cover allows cool air intake and warm air exhaust through the column.
- Dedicated cable pathways keep cabling clear of airflow routes for consistent ventilation.
Locking Castors
Enable easy repositioning or storage within a space.
- Heavy-duty castors provide smooth, controlled movement
- Non-marking wheels protect hard floors and carpeted areas
- Locking mechanism secures the lectern in place for stable use

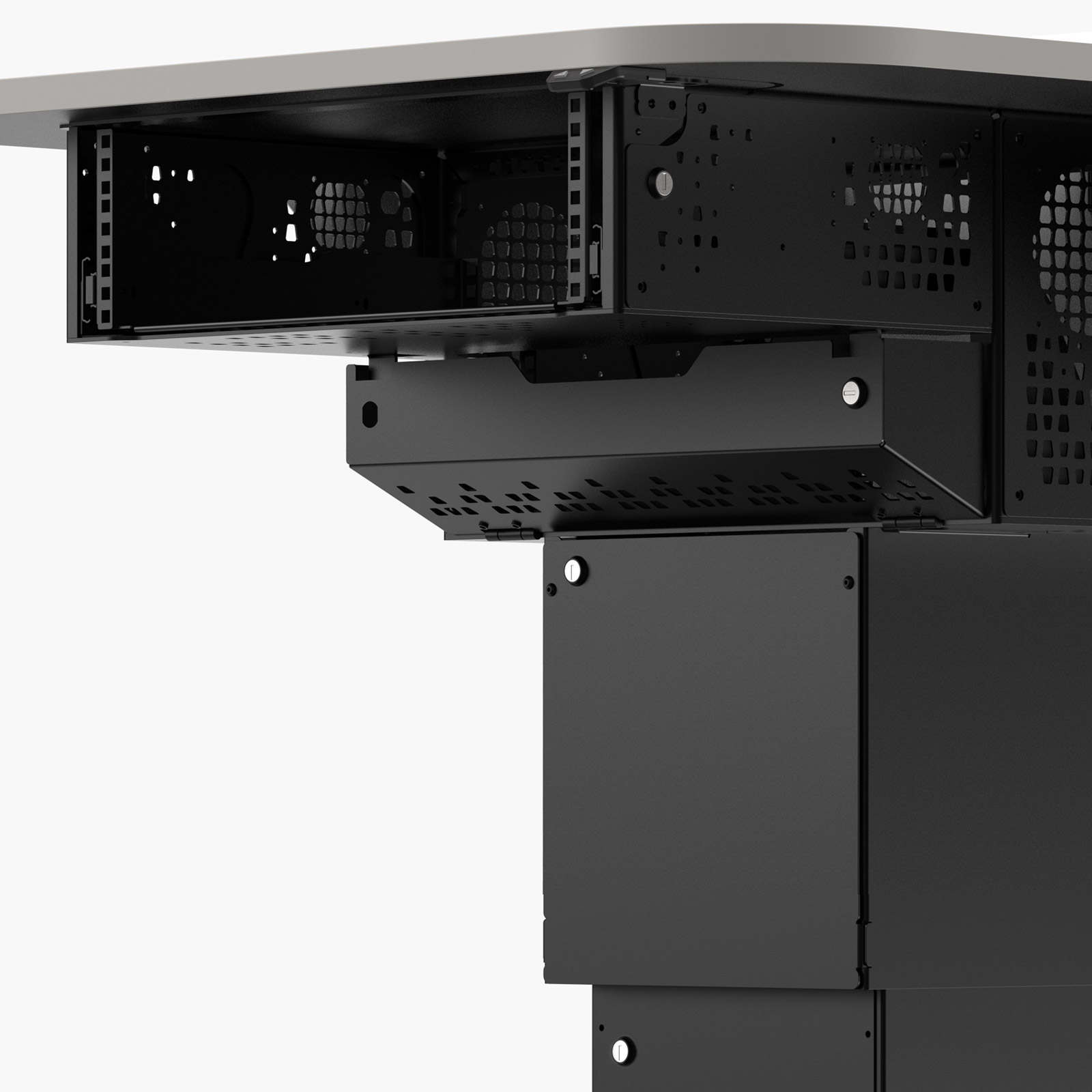

Security Locks
The lectern is supplied with a lockable logo panel. Additional locks can be fitted to enhance security.
Optional Lock Points:
- Side panels
- 5RU rear access panel
- Column covers
Optional Lock Types:
- Keyed-alike locks matched to the logo panel lock
- Combination locks for key-free access control
Explore Accessories for optional 3RU security plates.
Storage Drawer
Keeps pens and small essentials within easy reach.
- Discreetly mounted beneath the worktop to maintain a clean lectern surface
- Precision runners allow smooth, quiet, and reliable operation

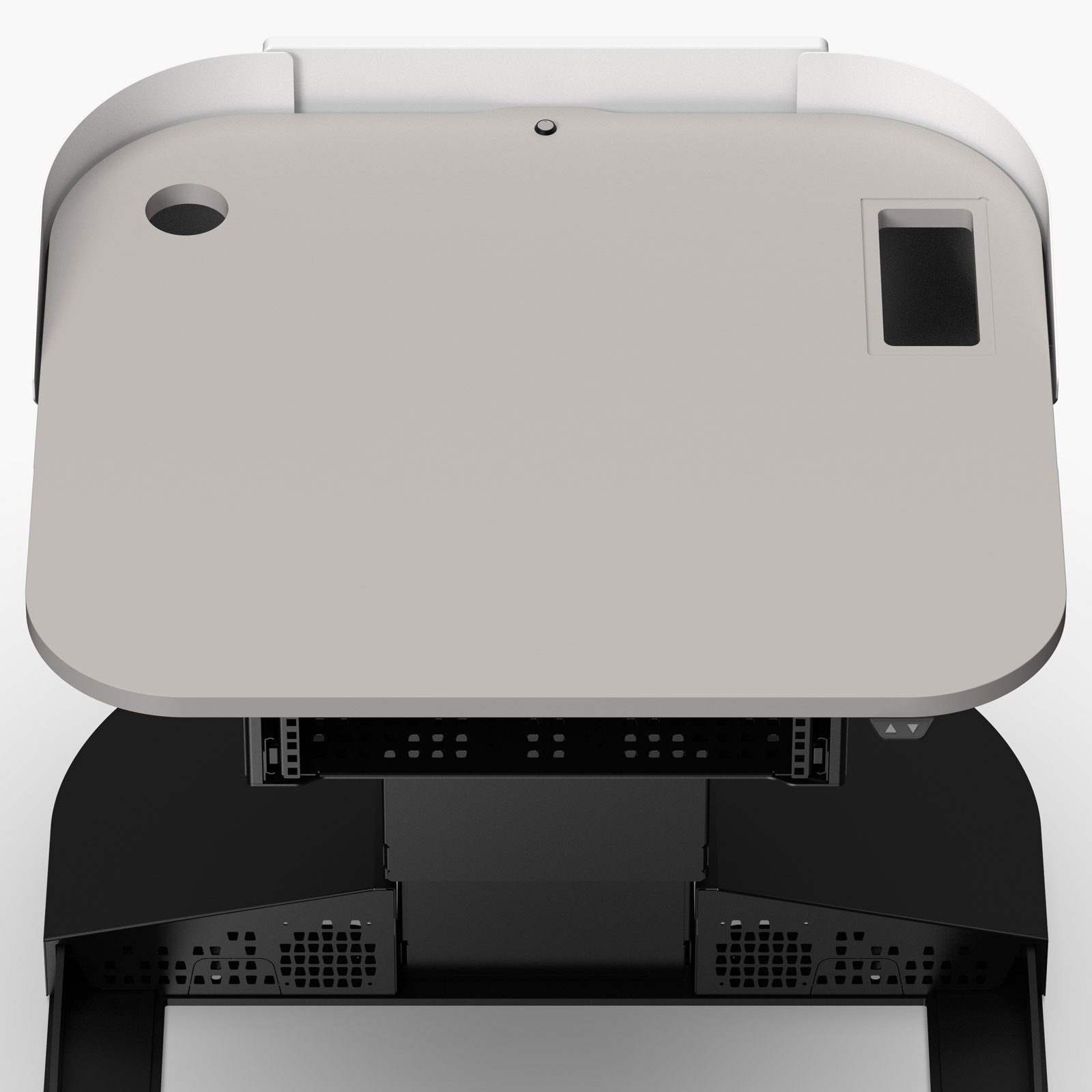

Worktop Cut-Out Service
Factory-machined cut-outs for integrated AV components.
- Precisely sized and correctly positioned openings
- Reduces onsite labour and avoids dust, noise and disruption
- Ensures a professional, ready-to-integrate finish
Make It Your Own
Podion offers a range of branding options and colour finishes to suit your space and style.

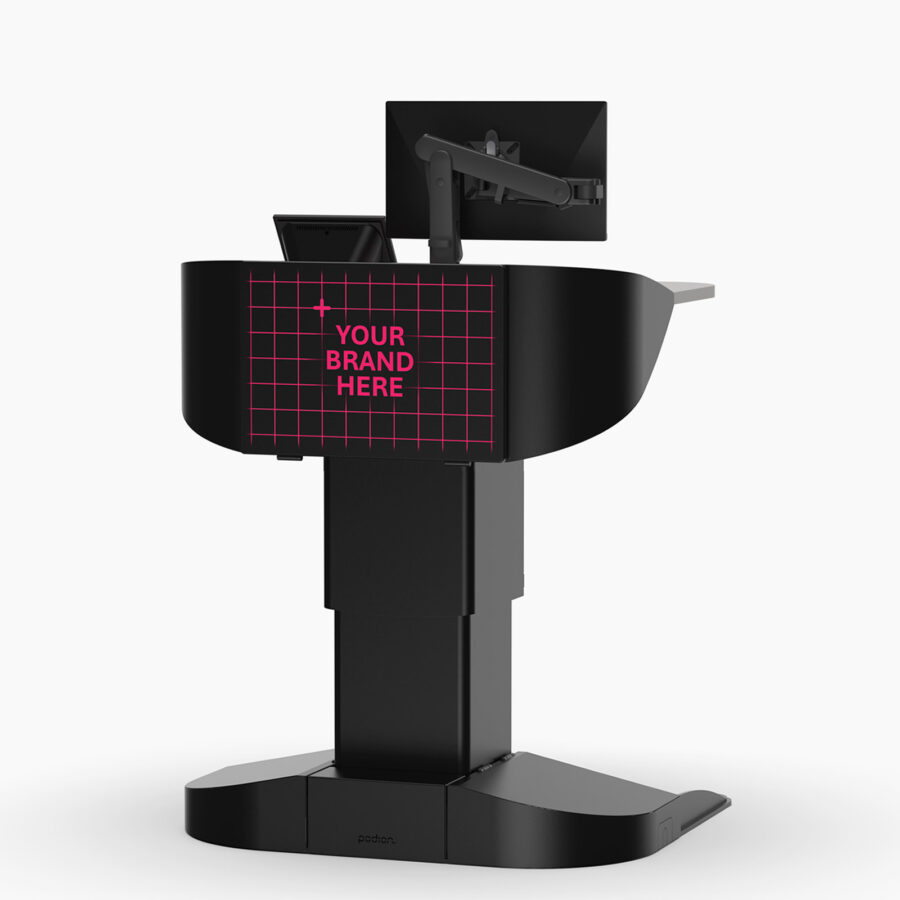

Logo Options
Vinyl Wraps: Full panel printed vinyl applied edge-to-edge, ideal for large format logos, graphics or textured designs across the logo panel. Easy to remove or replace for quick, cost-effective rebranding.
Vinyl Print: Durable printed vinyl film applied directly to the logo panel, delivering clean colour, sharp detail and a smooth, integrated finish.
Acrylic Print: Reverse-printed artwork on clear acrylic, creating a glossy, premium finish with added depth and strong on-camera clarity.
3D Laser Cut: Precision-cut acrylic or metal logo elements mounted to the panel for a bold, raised 3D look with high visual impact.
Timber-Finish Wraps
Apply a realistic timber-finish vinyl wrap to the front panels and column for a warm, contemporary aesthetic.
The wrap delivers durable surface protection and can be removed or replaced with ease - allowing rapid updates or restyling without affecting the lectern's original finish.
Custom Colours & Paint Finishes
Select from our standard matte or gloss powder-coat finishes, or request a custom colour to match your interior palette or brand guidelines.
Visual renders can be supplied to confirm the final look before production.
