Touchdown Point | TDP-HA

A wall-positioned, sit-stand teacher’s workstation for university and higher education environments.

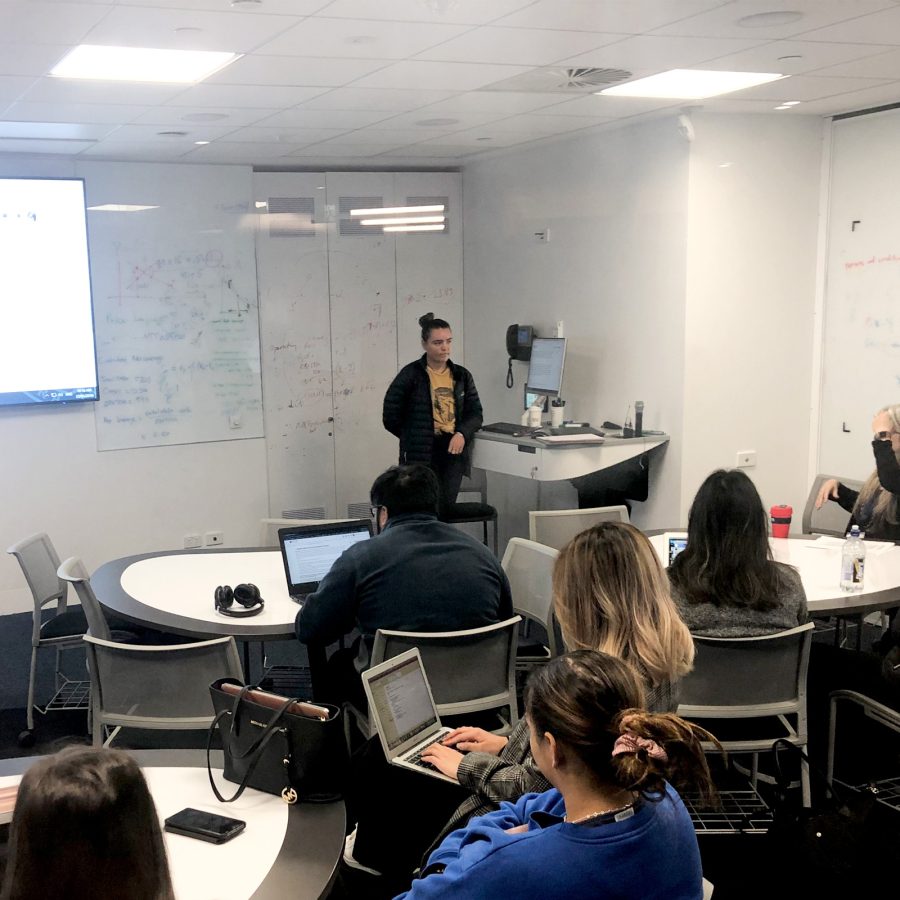

The TDP-HA Touchdown Point allows educators to briefly “touchdown”- to connect devices, operate room AV systems and switch content – while remaining free to move, interact with students, and transition between presentation and group work.

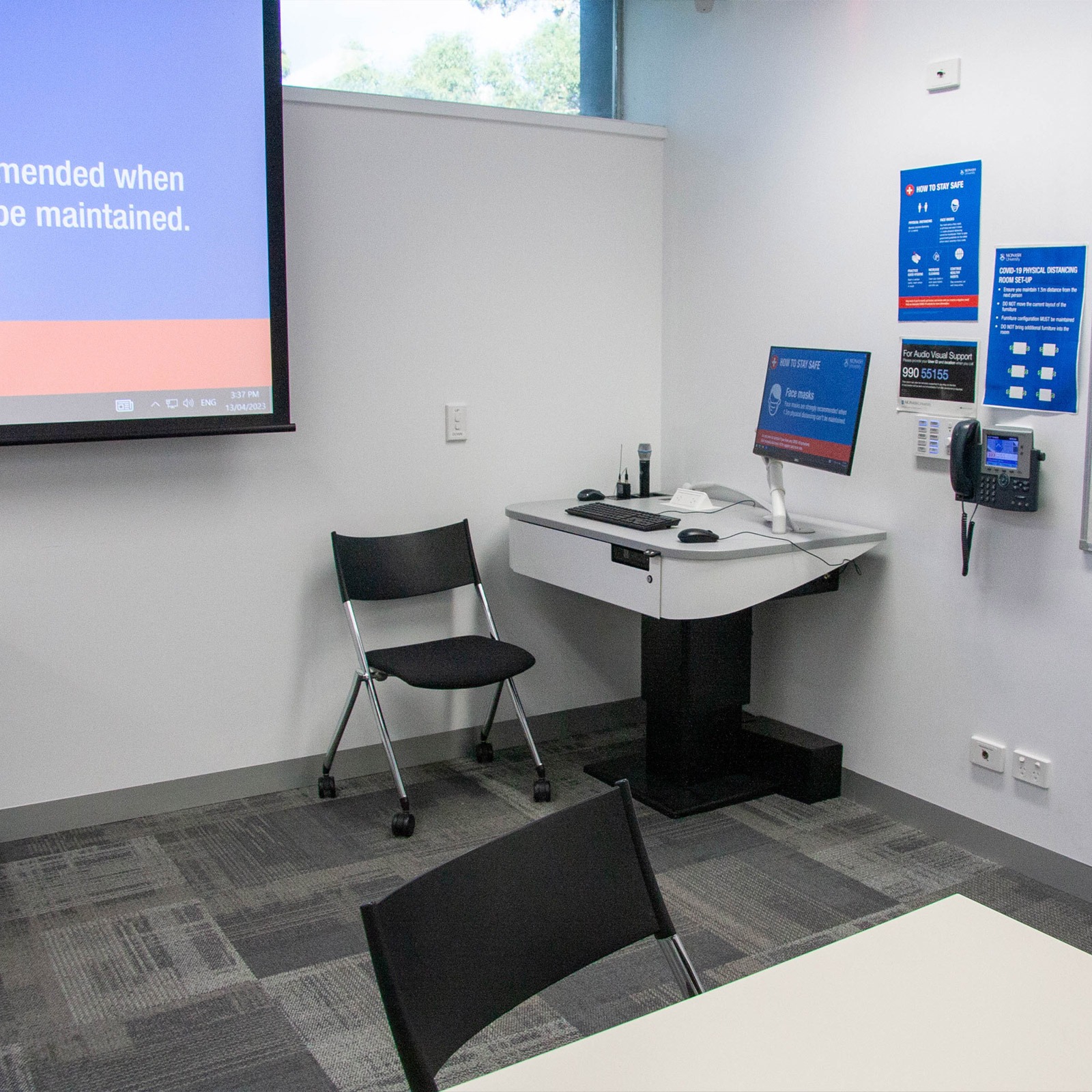

Unlike traditional lecterns, TDP-HA is positioned against a wall or in a corner to maximize usable floor space, making it ideal for teaching spaces where layout and mobility are key.

Designed for straightforward AV & IT integration, the TDP-HA includes lockable storage for 4RU of equipment and a micro PC, with integrated cable management and passive cooling to support reliable operation and service access.

With electric height adjustment and wheelchair accessibility, it supports compliance with Disability Discrimination Act (DDA) requirements.


Technical Details

Measurements

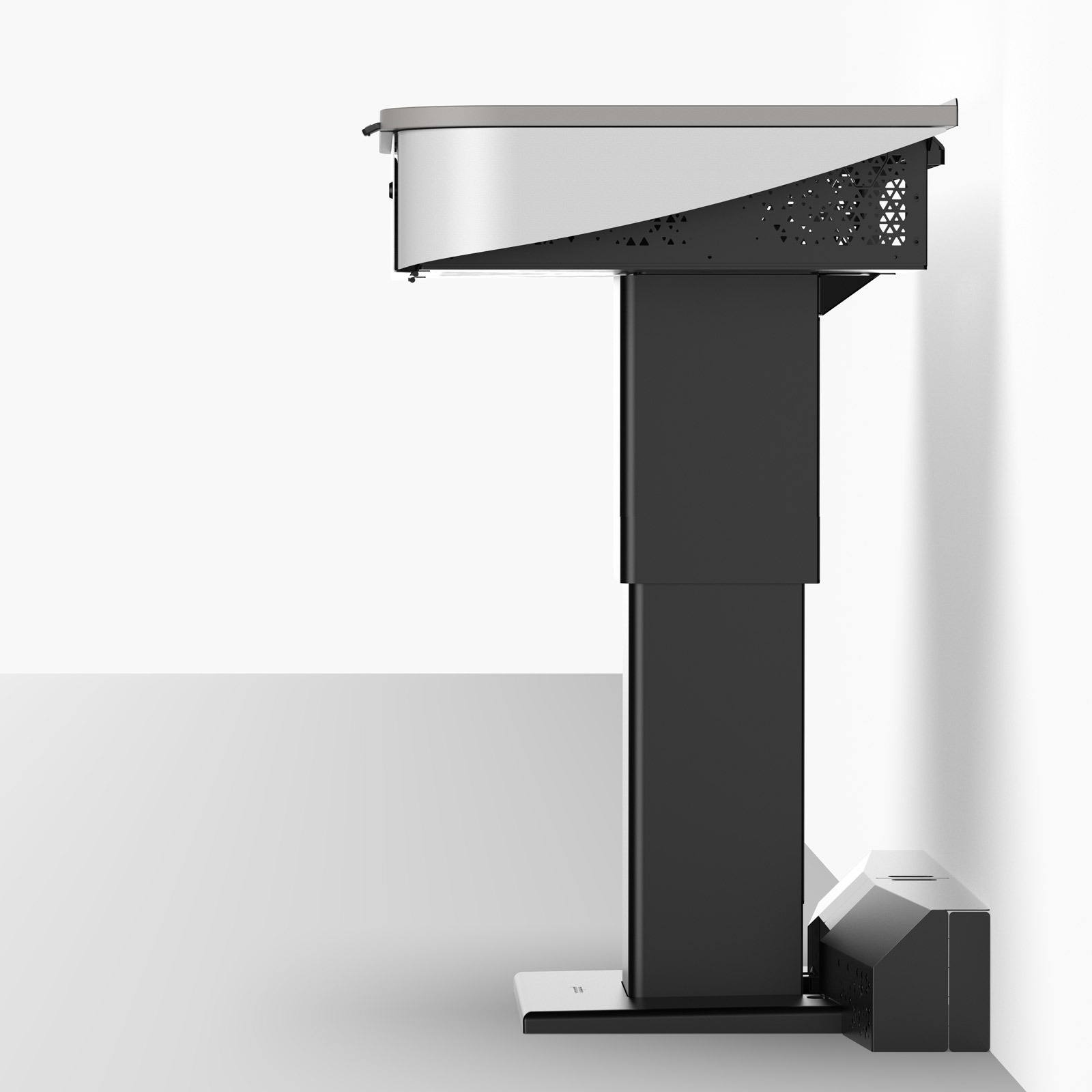

Installation Freestanding, 30mm off the wall
Storage capacity – 3RU slide-out rack tray
– 1RU fixed rack strip
– Space for micro PC
Height adjustment range 860mm – 1160mm (31″ x 43″)
Worktop 1125mm W x 700mm D (39” x 36”)
Base 900mm W x 170mm D (35″ × 7″)
Material
Worktop Laminate
Body Steel
Standard Features
Slide-out rack tray Yes
Cable management Yes
Integrated ventilation Yes
Base enclosure Configurable for cable ducts through the sides
Security locks Keyed-alike or combination locks
Options
Micro PC cut-out Provides access to pc without unlocking enclosure
Worktop cut-outs Ensures consistency of hole sizes and locations
Branding
Logo applications Vinyl wraps, decals, cut-outs or magnetic signage
Colours & Finish
Standard Grey worktop
White front panel
Black body and base
Custom Non-standard colours
Gloss or matte
Timber finish
Download Datasheet

5-Year Warranty
Quick Ship
Worldwide Shipping
No Assembly Required

For the Educator

Height Adjustable

Educators can set their preferred working height at the touch of a button.

  • Height range: 860mm – 1160mm
  • Supports seated and standing teaching
  • Promotes ergonomic comfort and inclusive use

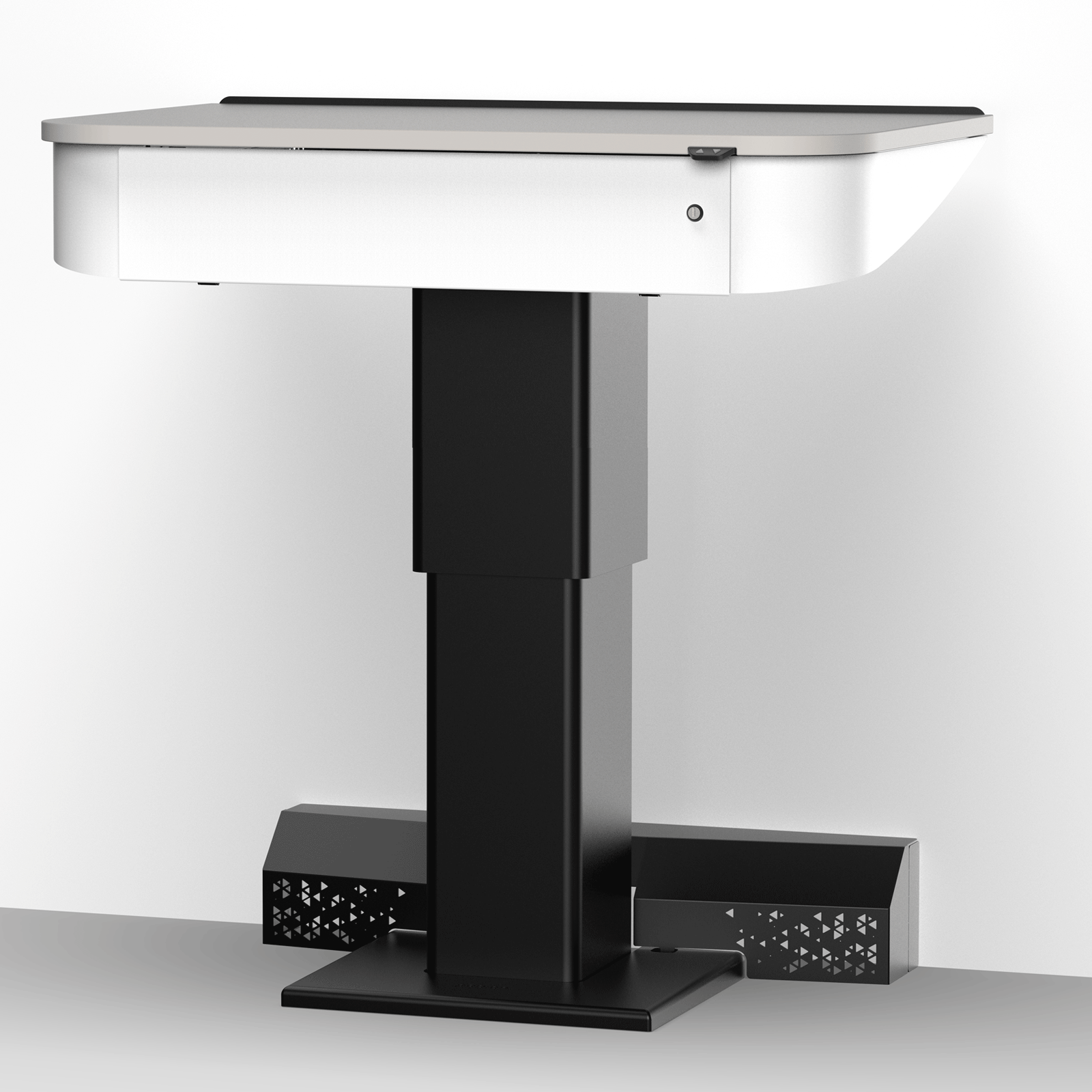

Wall multimedia lectern that is height adjustable

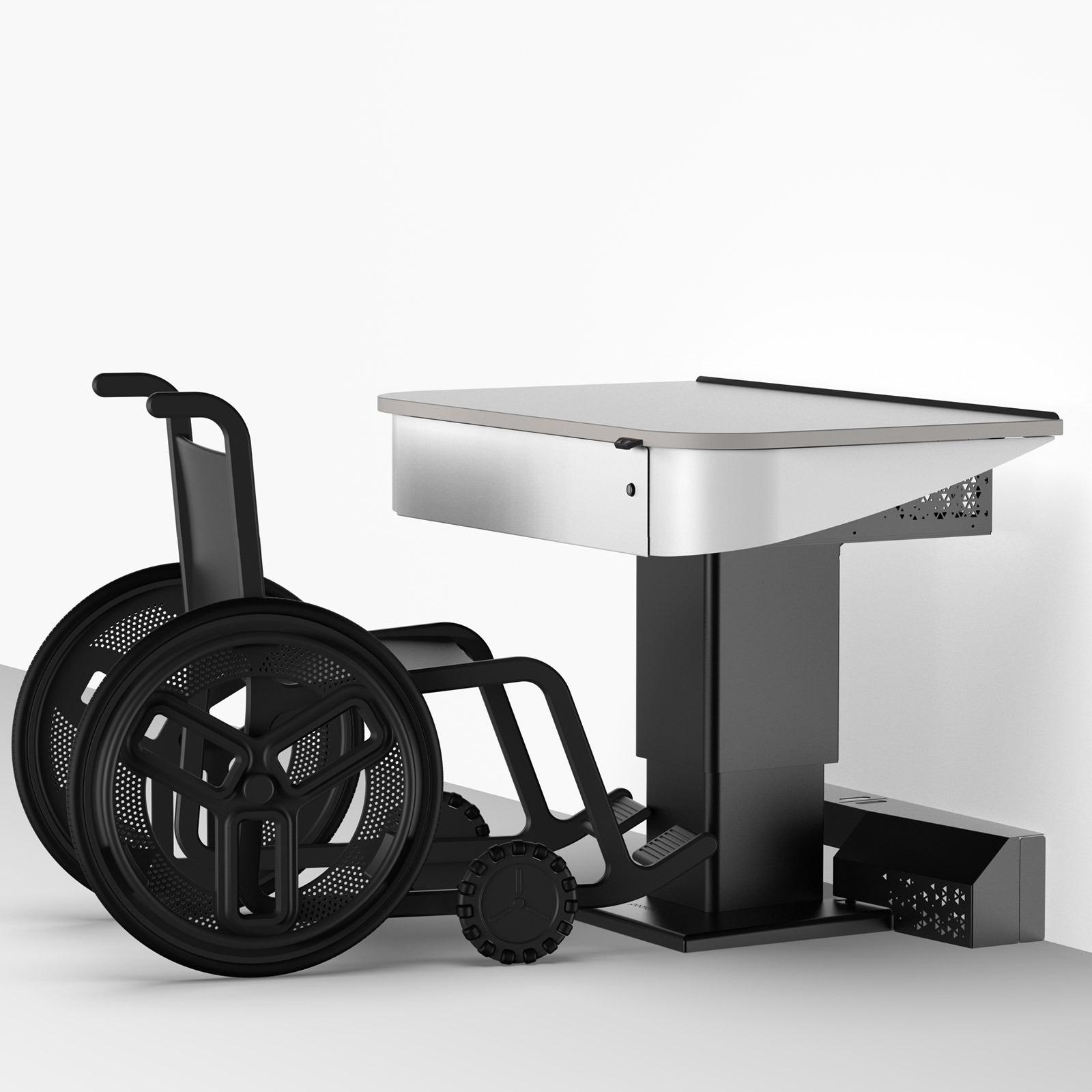

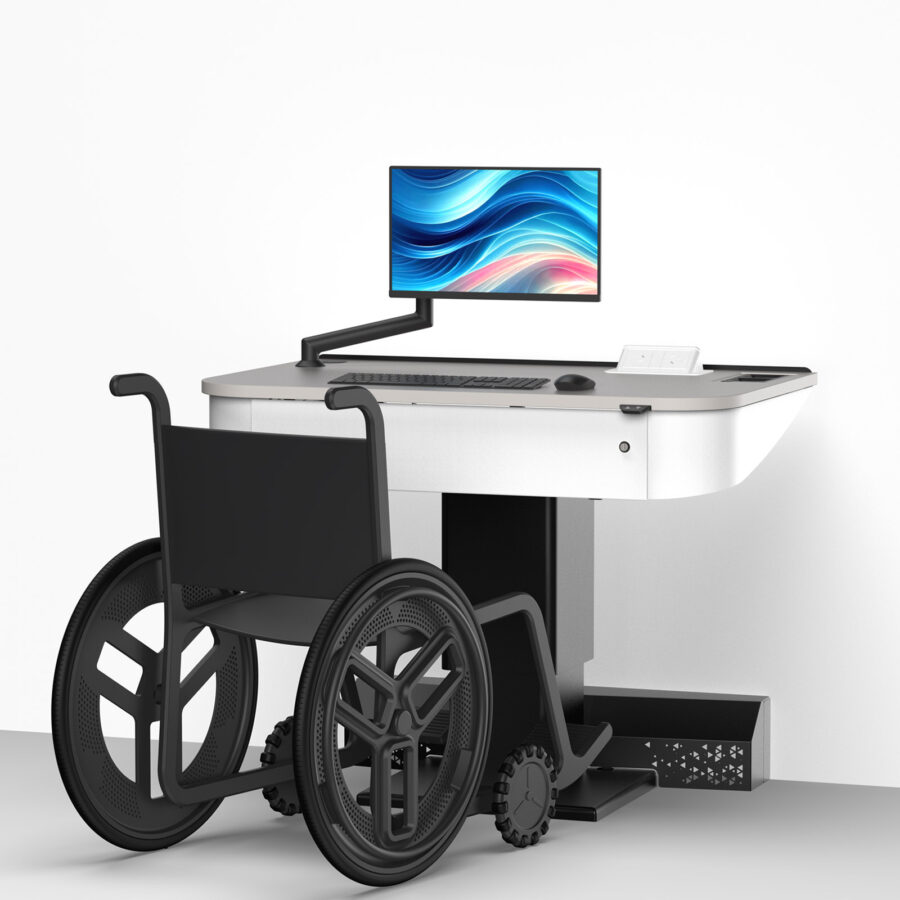

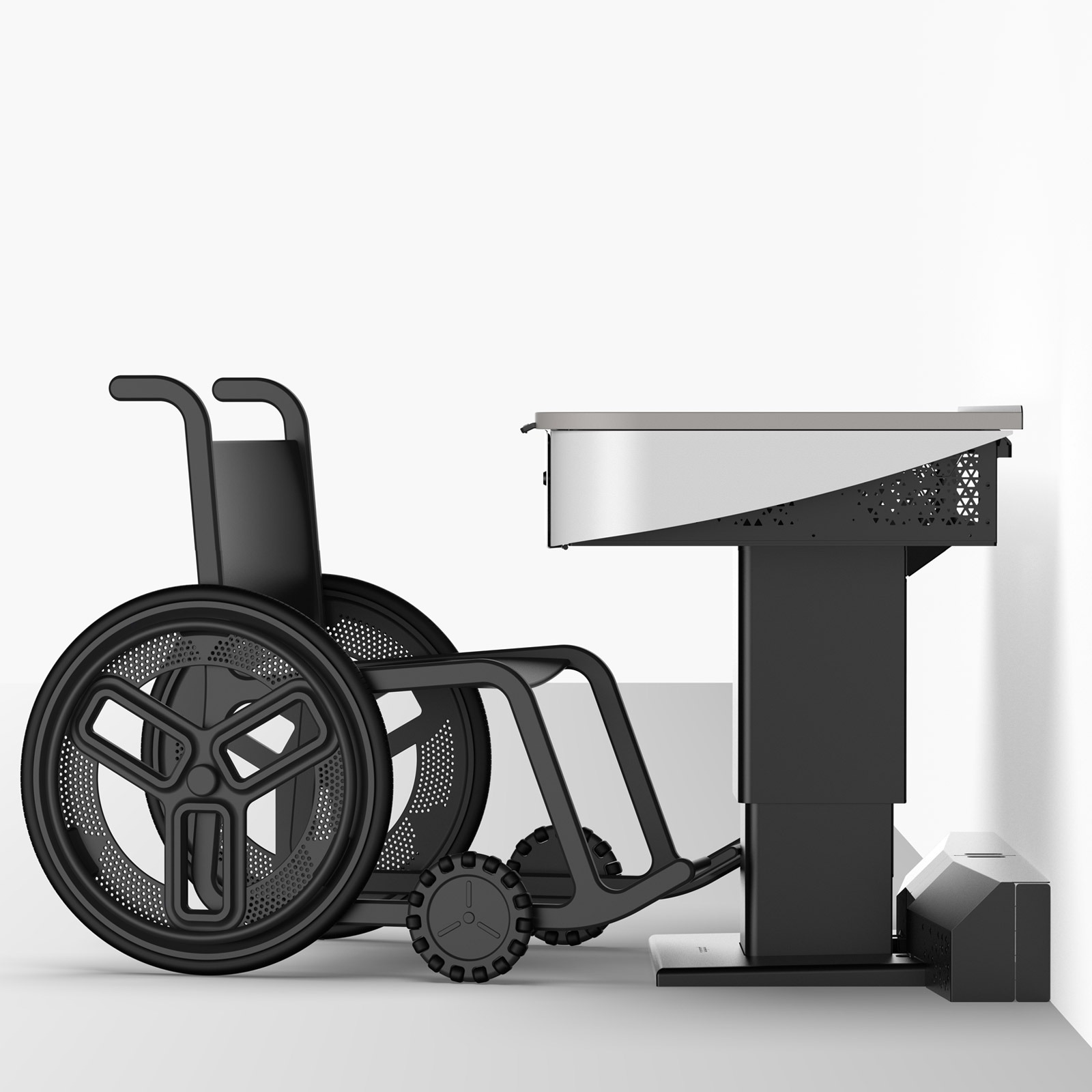

Inclusive Wheelchair Accessibility

  • Clear forward approach at wall position
  • Open knee clearance
  • Reachable work surface and controls
  • Supports compliance with Disability Discrimination Act (DDA) requirements

Spacious & Customisable Worktop

  • Worktop size: 1125mm W × 700mm D
  • Provision for:
    • Monitor arm
    • Wireless microphone dock
    • Desk mounts and AV peripherals
  • Integrated metal rail strip to prevent items sliding off the back
  • Optional custom worktop cut-outs to suit specific AV or power requirements

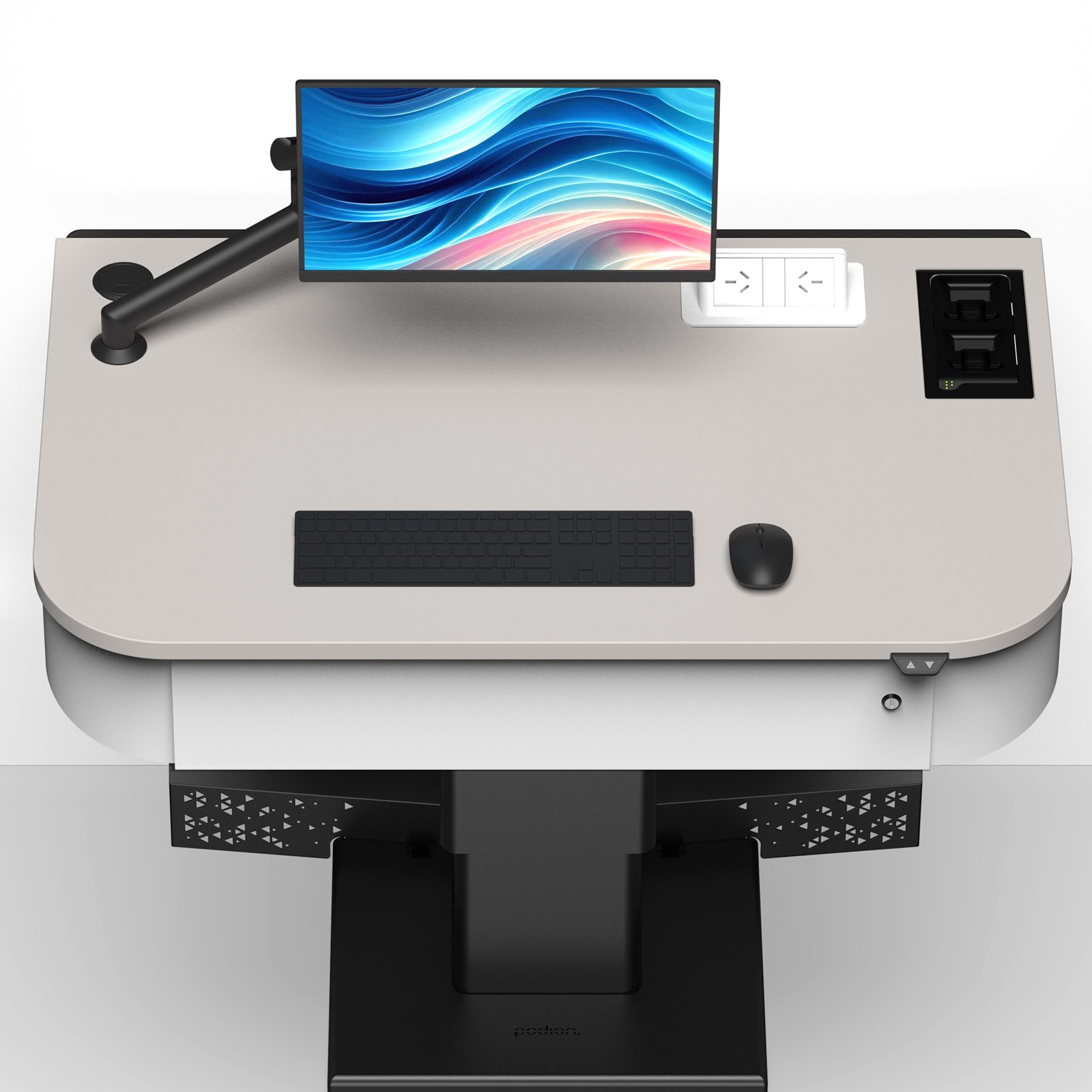

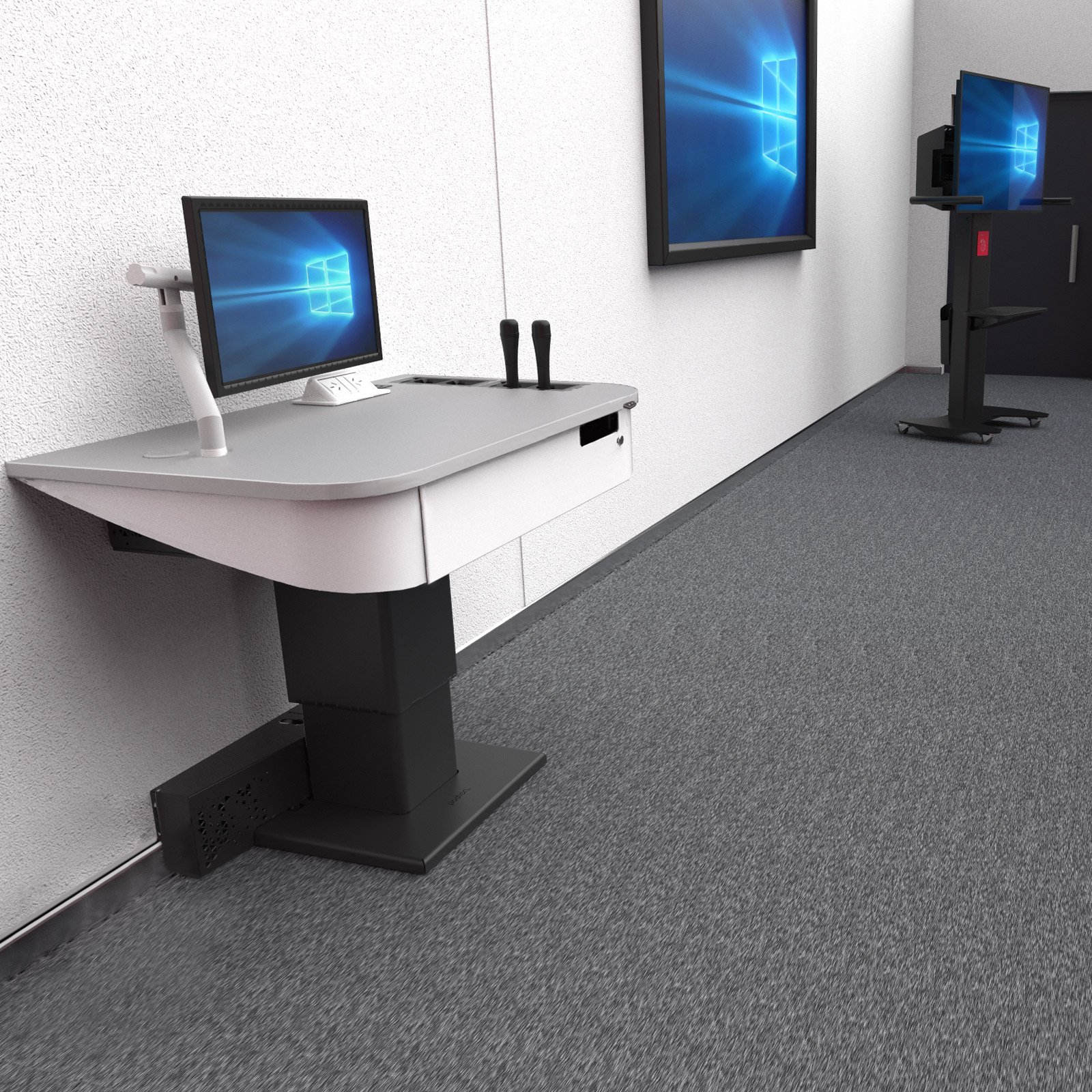

UNiversity lectern worktop positioned against wall showing monitor arm, power outlet, microphone battery charger
For the AV Integrator

Secure & Organised AV Storage

The TDP-HA features a fully enclosed and lockable equipment bay, designed with AV integrators in mind.

Internal capacity includes:

  • Total rack space: 4RU
    • 3RU slide-out rack tray
    • 1RU fixed rack strip
  • Dedicated space for a micro PC

Service & Maintenance Access

AV integrators can easily access equipment and then lock the enclosure to prevent unauthorised access.

Access points:

  • Removable worktop (bolted in)
  • Front access door (lockable)
  • Removable fins
  • Removable side plates
  • Slide out AV rack tray
  • Removable column cover
  • Rear base cable enclosure

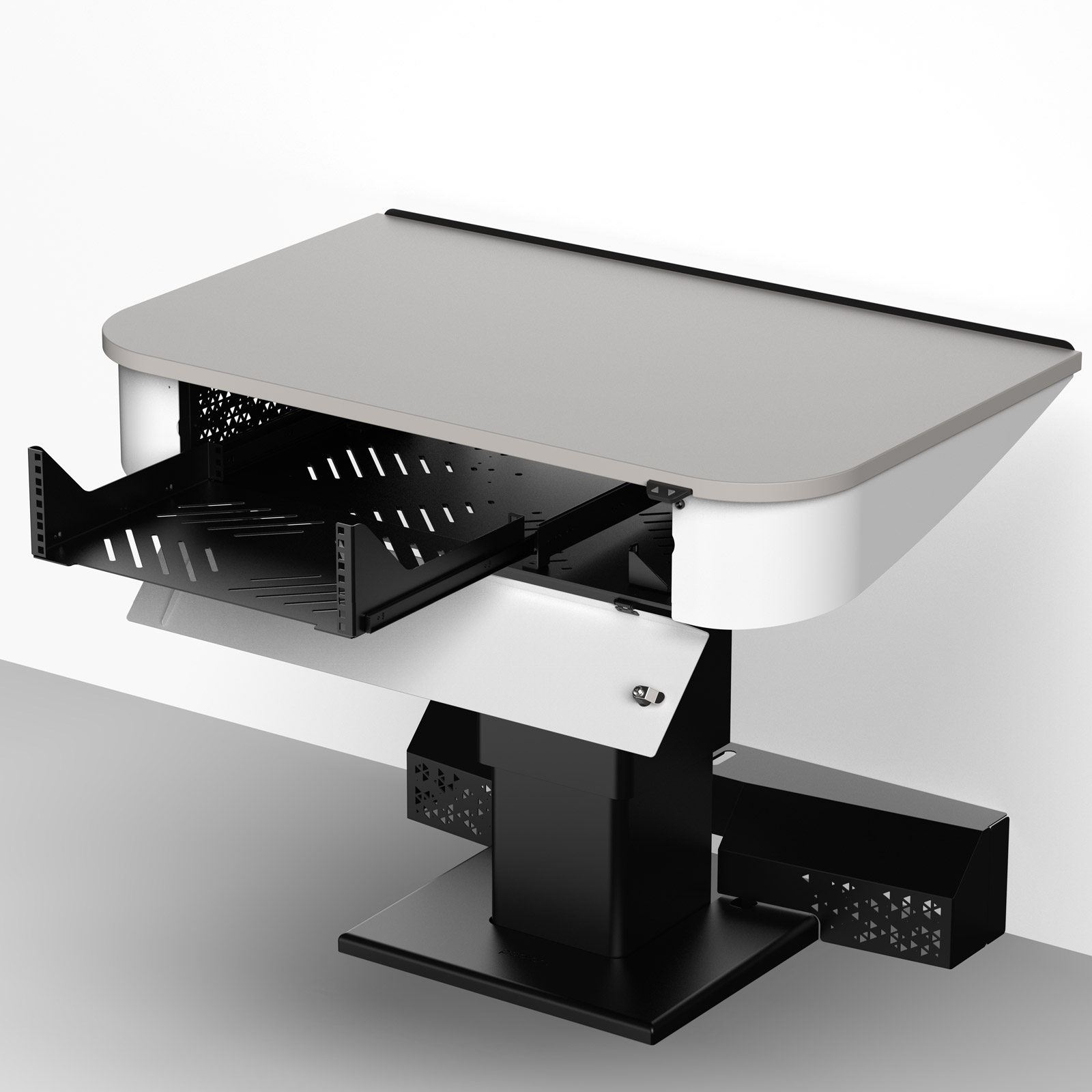

Freestanding wall teachers touchdown point for universities
Optional

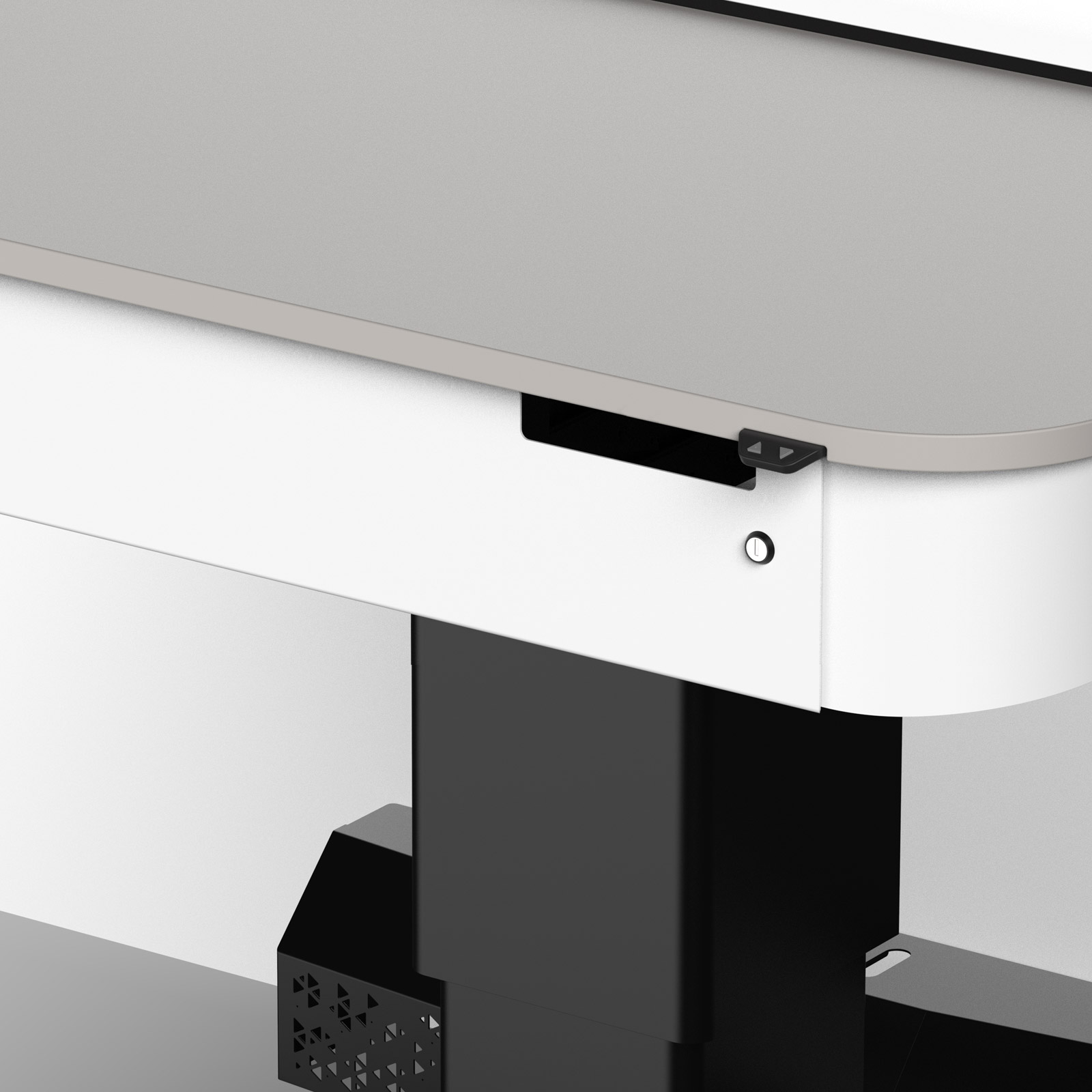

Front Panel Access Cut-Out

Allows educators to access the installed micro PC without unlocking the equipment enclosure.

Optional micro pc cutout in front panel of lectern

Integrated Ventilation

  • Ventilated steel chassis supports passive airflow around equipment
  • Perforated rack tray reduce localised heat build-up within the enclosure
  • Ventilated base enclosure supports cool air entry and heat dissipation through the column
  • Dedicated cable pathways through the column keep cabling clear of airflow paths

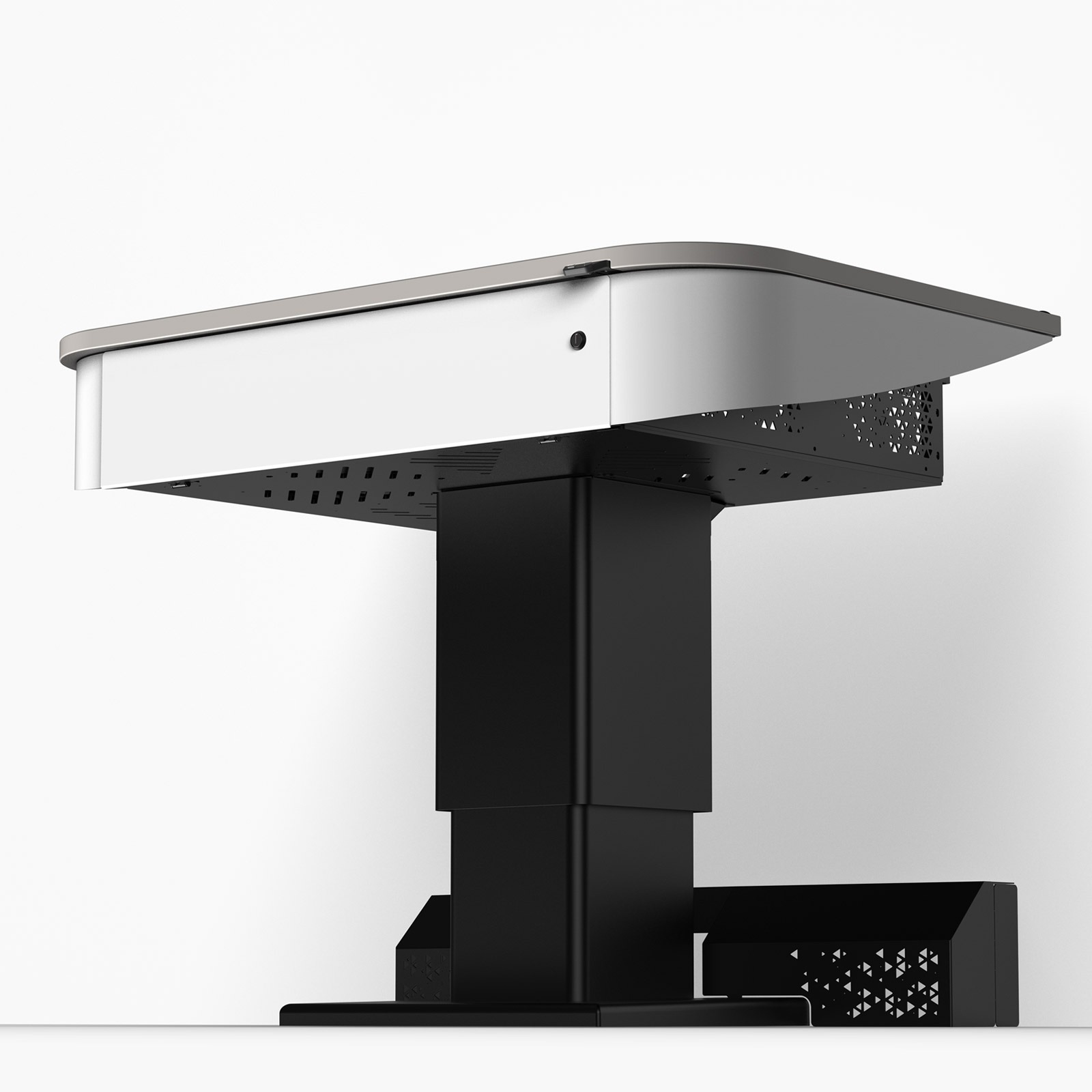

Touchdown point university lectern showing steel rack enclosure and able management
Optional

Worktop Cut-Out Service

Take advantage of factory-machine cutouts.

  • Minimizes installation time at your end
  • Ensure the consistency of hole sizes and locations
  • Reduces unnecessary disruption and dust on site or in rack build environments

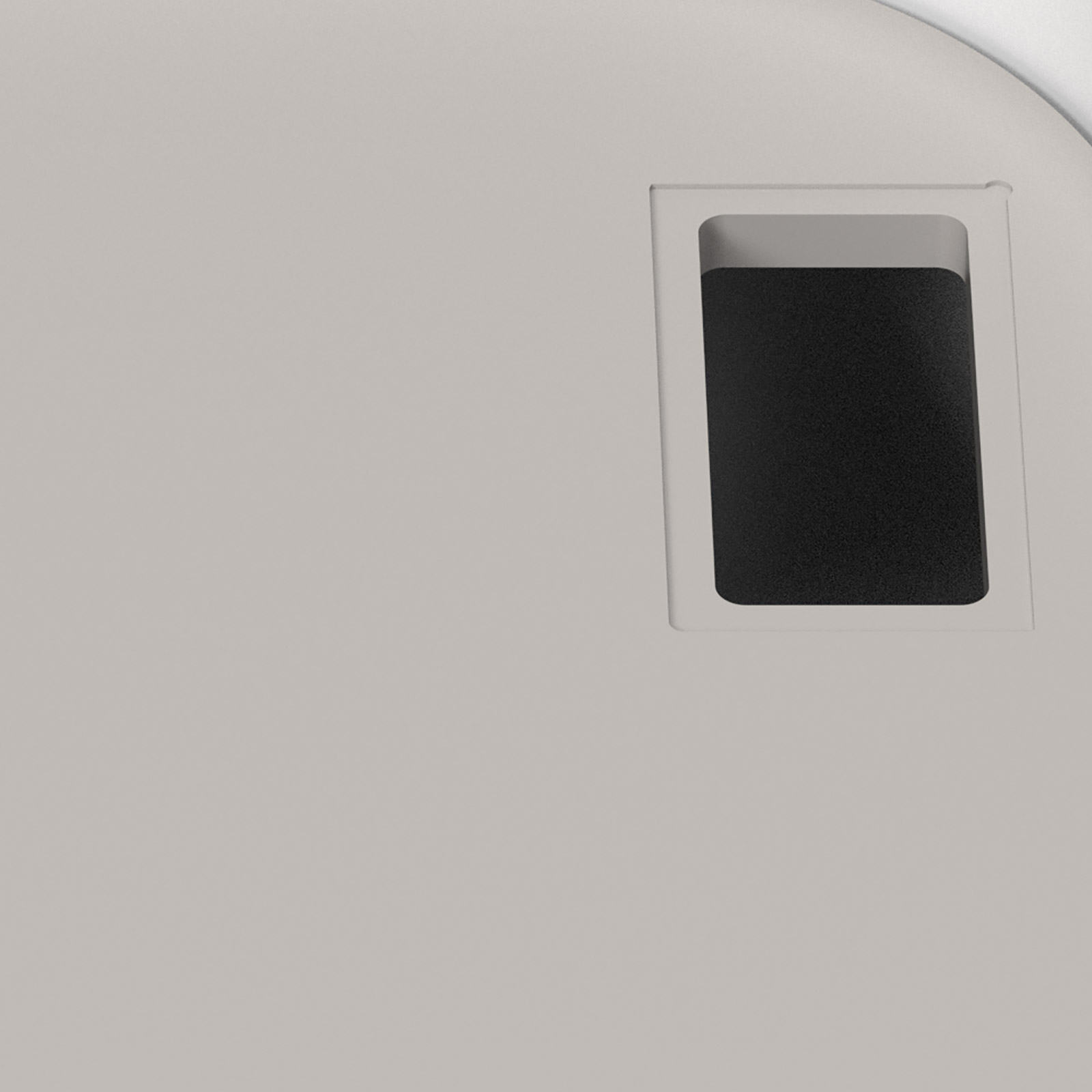

Multimedia lectern with custom worktop cut out at time of manufacture
